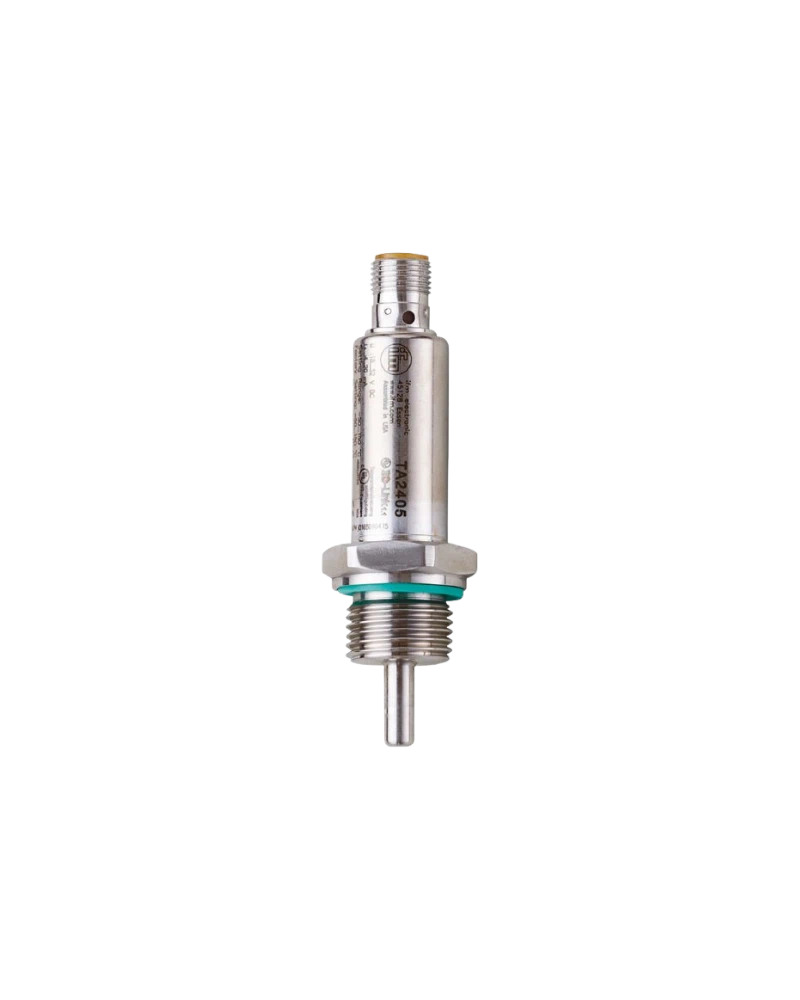

TA2405 is a compact industrial temperature transmitter designed for reliable temperature measurement in liquids and gases. It supports a -50...150 °C measuring range with a 30 mm installation length. The G 1/2 external thread provides a practical threaded process connection. Its analogue output provides 4...20 mA signal transmission while IO-Link supports digital communication. IP67, IP68 and IP69K protection make it suitable for demanding industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2405 provides a 0.04 K analogue output resolution. Analogue output precision is specified as ±0.3 K + ±0.1% of the measuring span. The dynamic response is T05/T09 of approximately 1/3 seconds. The -50...150 °C range covers many industrial temperature applications. These characteristics support responsive process-temperature monitoring.
The transmitter uses a G 1/2 external thread for process installation. Its 30 mm installation length supports compact mounting. The probe diameter is 6 mm. Stainless-steel 316L construction provides durability and suitable wetted-part performance. The transmitter uses an M12 connector with gold-plated contacts.
TA2405 supports IO-Link COM2 at 38.4 kBaud and IO-Link revision 1.1. It provides IP67, IP68 and IP69K protection. The specified shock resistance is 50 g and vibration resistance is 20 g. The device is suitable for demanding machine and process environments. Its compact design simplifies installation and maintenance.
-50...150 °C measuring range
30 mm installation length
G 1/2 external thread
6 mm probe
4...20 mA output
IO-Link COM2
0.04 K analogue resolution
±0.3 K + ±0.1% MS accuracy
T05/T09 1/3 s
M12 connector
Gold-plated contacts
Stainless-steel 316L
IP67/IP68/IP69K
50 g shock resistance
20 g vibration resistance
Industrial machinery
Process pipelines
Cooling systems
Heating systems
Hydraulic systems
Pumps
Compressors
Liquid monitoring
Gas monitoring
PLC temperature control
Process automation
Machine protection
Temperature alarms
Equipment diagnostics
Industrial IoT
| Specification | Details |
|---|---|
| Product Model | TA2405 |
| Type Code | TA-030CLER12-A-ZVG/US |
| Product Type | Temperature transmitter |
| Measuring Element | Model-specific |
| Accuracy Class | Model-specific |
| Measuring Range | -50...150 °C |
| Factory Setting | -50...150 °C |
| Installation Length | 30 mm |
| Probe Diameter | 6 mm |
| Process Connection | G 1/2 external thread |
| Housing Diameter | Ø18.7 mm |
| Housing Length | 93.9 mm |
| Media | Liquids and gases |
| Analogue Output | 1 |
| Output | 4...20 mA |
| Output Resolution | 0.04 K |
| Output Accuracy | ±0.3 K + ±0.1% MS |
| Response T05 | 1 s |
| Response T09 | 3 s |
| Communication | IO-Link COM2 |
| IO-Link Revision | 1.1 |
| Connector | M12, A-coded |
| Contacts | Gold-plated |
| Protection | IP67/IP68/IP69K |
