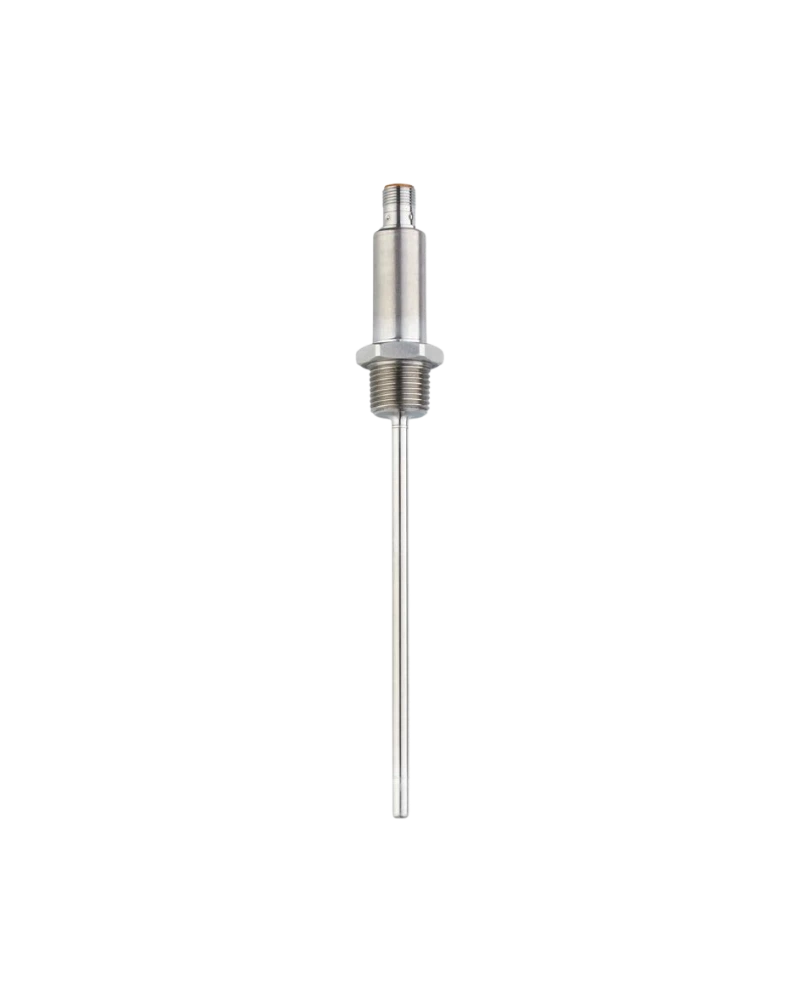

TA2345 is a 150 mm industrial temperature transmitter with a 1/2-inch NPT process connection. It uses a Pt1000 Class A element and provides a −50…150 °C measuring range. The transmitter provides a scalable 4–20 mA analogue output and IO-Link communication. Its robust stainless-steel construction supports industrial temperature measurement. TA2345 is suitable for tanks, pipelines, machinery and process-control applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2345 is designed for deep temperature measurement in industrial process systems. The 150 mm probe provides extended insertion depth. Its Pt1000 Class A sensor provides stable measurement performance. The analogue output supports PLC and controller integration. IO-Link adds digital configuration and process diagnostics.
The Pt1000 sensing element responds to temperature through resistance changes. The electronics convert the resistance into a calibrated temperature value. The 4–20 mA output provides continuous process information. IO-Link provides digital process communication. This supports automated temperature monitoring.
TA2345 uses stainless steel for its housing and wetted components. Its 6 mm probe provides reliable mechanical performance. The 1/2-inch NPT connection supports industrial installations. The device has a lower pressure rating than the FLEN12 high-pressure variant. High IP protection supports industrial environmental conditions.
Pt1000 Class A
−50…150 °C
150 mm installation length
6 mm probe
1/2-inch NPT
4–20 mA
IO-Link 1.1
COM2
M12 connector
Gold-plated contacts
Stainless steel
High protection rating
0.04 K resolution
1 / 3 s response
Reverse polarity protection
Overload protection
Short-circuit protection
PLC integration
Digital parameterisation
Industrial process monitoring
Process tanks
Pipelines
Machine tools
Pump systems
Compressors
Plant engineering
Temperature control
OEM machinery
PLC automation
SCADA monitoring
Equipment protection
Maintenance
Industrial automation
Process quality monitoring
| Specification | Details |
|---|---|
| Product model | TA2345 |
| Order code | TA-150CLEN12-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…150 °C |
| Factory setting | −50…150 °C |
| Installation length | 150 mm |
| Probe diameter | 6 mm |
| Process connection | 1/2 in NPT external |
| Media | Liquids and gases |
| Pressure rating | Approx. 160 bar class |
| Output | 4–20 mA |
| Output configuration | Scalable |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission | COM2 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05/T09 | 1 / 3 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Electrical connection | M12 |
| Housing | Stainless steel |
