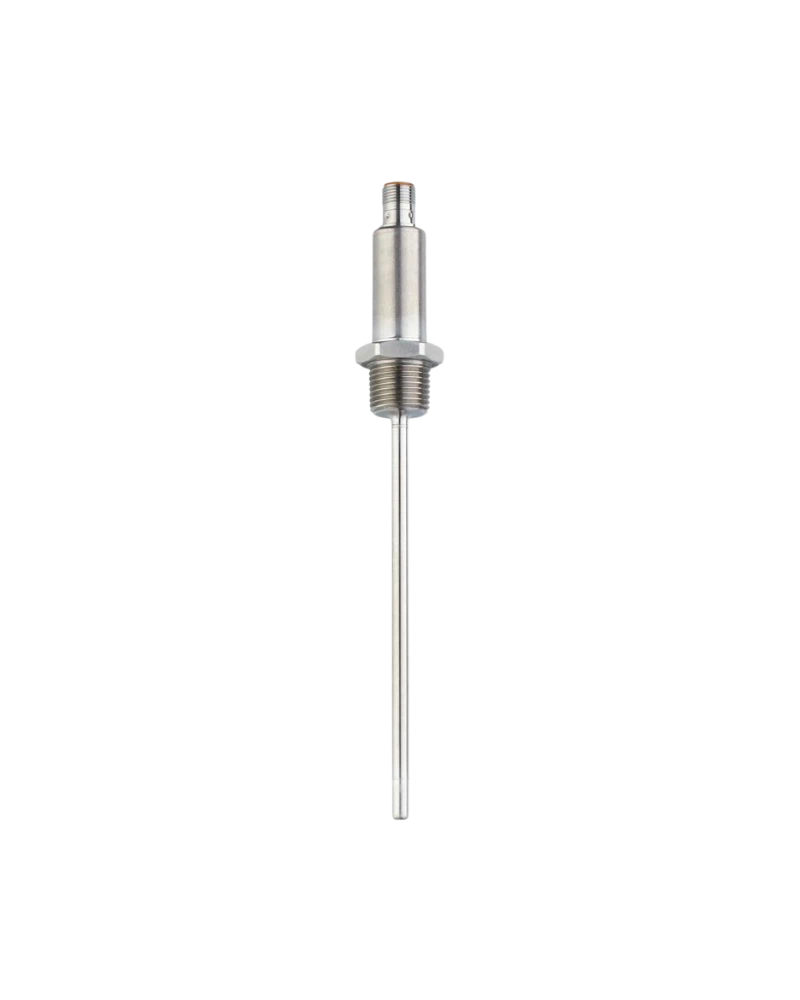

TA2345 is a long-probe industrial temperature transmitter designed for reliable process-temperature measurement. Its 150 mm installation length provides deeper immersion into process media. The threaded process connection supports secure installation into suitable industrial equipment. The Pt 1000 sensing element provides stable temperature measurement for liquids and gases. Analogue and IO-Link communication provide flexible integration into conventional PLC and digital automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The Pt 1000 element provides repeatable resistance-based temperature measurement. The long probe helps position the sensing point deeper inside process equipment. Continuous temperature monitoring can support process control and equipment protection. IO-Link provides digital process information. The analogue output provides standard control-system compatibility.
The 150 mm installation length supports deep process measurement. The threaded connection provides secure mechanical mounting. The slim probe profile supports installation in suitable process openings. Stainless-steel construction supports industrial durability. Correct installation should consider pressure, media and sealing requirements.
The transmitter supports a configurable 4...20 mA signal. IO-Link provides digital configuration and diagnostics. M12 connectivity simplifies electrical connection. The device can be connected to PLC and SCADA systems. It supports process monitoring, alarms and temperature-control functions.
Pt 1000 sensing element
150 mm installation length
Threaded process connection
Long-probe design
4...20 mA output
IO-Link
M12 connector
Stainless-steel construction
Liquid measurement
Gas measurement
Digital diagnostics
PLC integration
Process monitoring
Temperature control
Industrial automation
Process vessels
Tanks
Pipelines
Industrial machinery
Cooling systems
Heating systems
Hydraulic equipment
Pumps
Compressors
Liquid monitoring
Gas monitoring
Process automation
PLC systems
Equipment protection
Industrial IoT
| Specification | Details |
|---|---|
| Product Model | TA2345 |
| Type Code | TA-150CLEN12-A-ZVG/US |
| Product Type | Temperature transmitter |
| Measuring Element | Pt 1000 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | Model-specific |
| Factory Setting | Model-specific |
| Installation Length | 150 mm |
| Probe Length | 150 mm |
| Probe Diameter | Model-specific |
| Process Connection | Threaded |
| Electrical Connection | M12 |
| Analogue Output | 1 |
| Output | 4...20 mA |
| Communication | IO-Link |
| Media | Liquids and gases |
| Supply Voltage | 18...32 V DC |
| Current Consumption | <50 mA |
| Housing | Stainless steel |
| Mounting | Process mounted |
| Protection | Model-specific |
| Diagnostics | IO-Link |
| Pack Quantity | 1 pcs |
