TA2343 is a 150 mm temperature transmitter designed for deep process temperature measurement. It uses a Pt1000 Class A element and provides a −50…150 °C measuring range. The transmitter features a 1/2-inch NPT external process connection and scalable 4–20 mA output. IO-Link enables digital configuration and process monitoring. Its stainless-steel construction and high pressure resistance make it suitable for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2343 provides reliable temperature measurement where a long insertion depth is required. Its 150 mm probe reaches deeper into process vessels and pipelines. The Pt1000 Class A element provides stable temperature measurement. The analogue output allows direct integration with automation controllers. IO-Link provides digital configuration and diagnostics.
The Pt1000 element responds to temperature through resistance changes. Internal electronics calculate the temperature from this resistance. The result is transmitted through a 4–20 mA output. IO-Link provides digital process information. Continuous measurement supports automated process control.

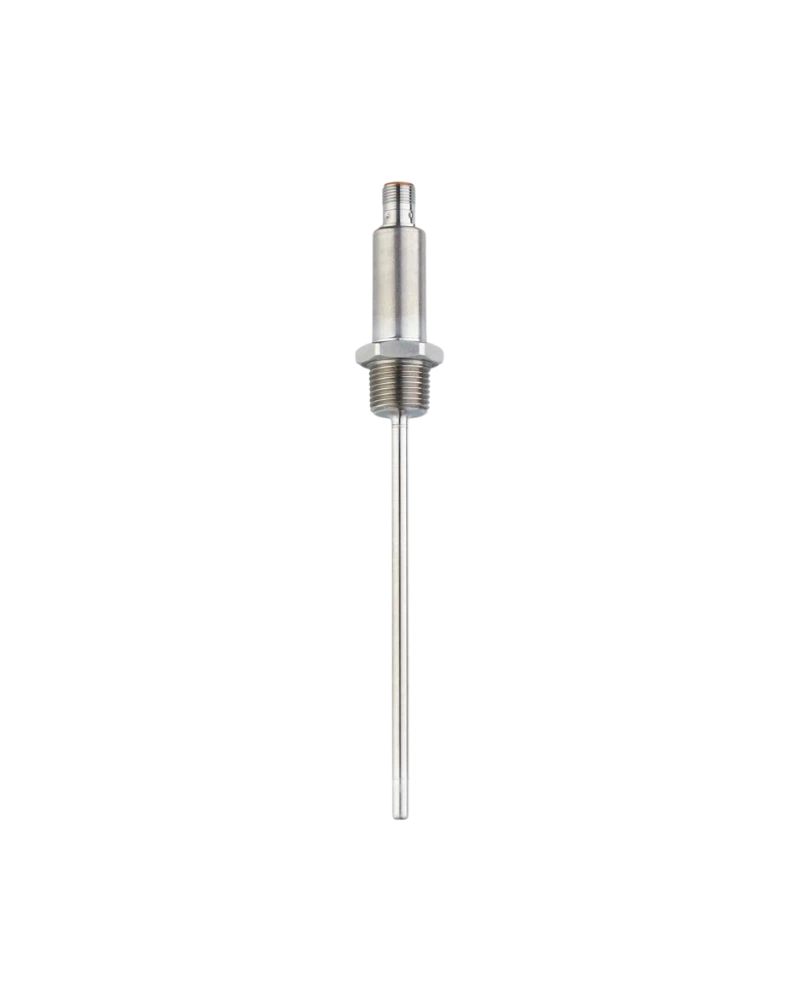

TA2343 features a stainless-steel cylindrical housing. The 6 mm probe provides long insertion depth. The 1/2-inch NPT external thread provides secure process mounting. The device is pressure-resistant up to 300 bar according to the product documentation. High IP protection and mechanical resistance support industrial applications.
Pt1000 Class A
−50…150 °C
150 mm installation length
6 mm probe
1/2-inch NPT
4–20 mA
IO-Link 1.1
COM2
M12 connection
Gold-plated contacts
Stainless steel
300 bar pressure rating
0.04 K resolution
1 / 3 s response
IP67/IP68/IP69K
50 g shock resistance
20 g vibration resistance
PLC integration
Digital diagnostics
Deep process vessels
Industrial tanks
Process piping
Plant engineering
Hydraulic systems
Pump systems
Compressor systems
Temperature control
Process monitoring
OEM machinery
PLC automation
SCADA
Equipment protection
Maintenance
Industrial automation
| Specification | Details |
|---|---|
| Product model | TA2343 |
| Order code | TA-150FLEN12-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…150 °C |
| Factory setting | 0…100 °C / model configuration |
| Installation length | 150 mm |
| Probe diameter | 6 mm |
| Process connection | 1/2 in NPT external |
| Media | Liquids and gases |
| Pressure rating | 300 bar |
| MAWP | 300 bar |
| Output | 4–20 mA |
| Output | Scalable |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission | COM2 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response | 1 / 3 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Electrical connection | M12 |
| Housing | Stainless steel |
