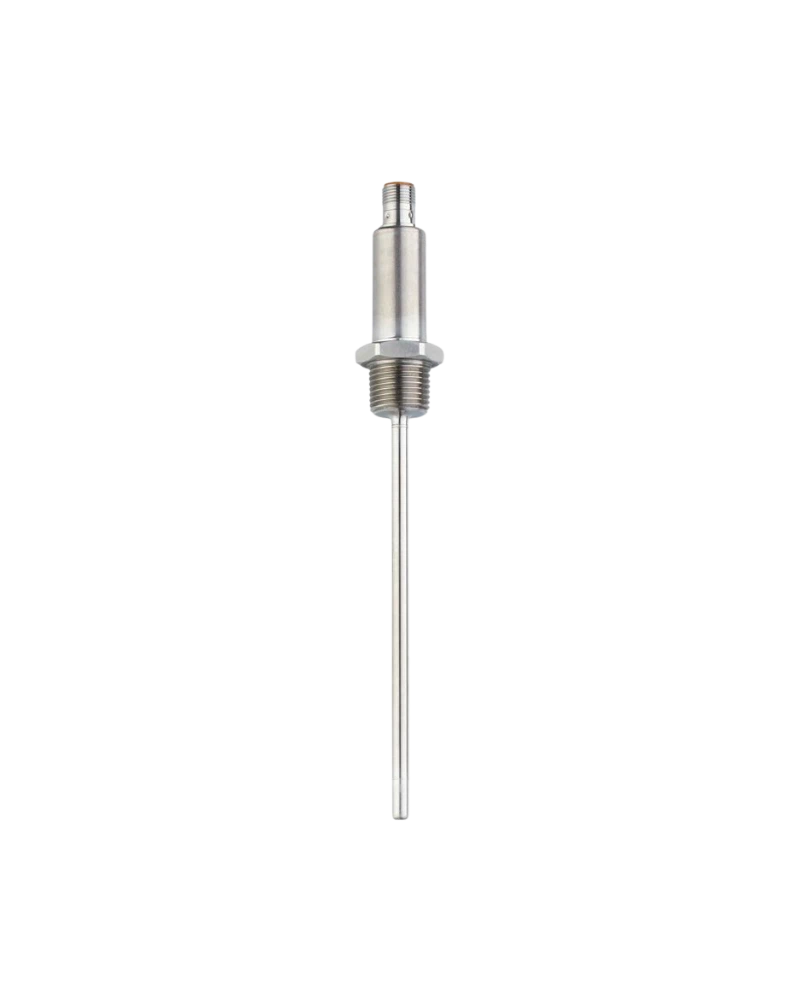

TA2343 is a long-probe temperature transmitter designed for deep temperature measurement in industrial process equipment. Its 150 mm installation length provides extended reach into tanks, vessels and pipelines. The 1/2 inch NPT external thread provides a robust threaded process connection. The Pt 1000 sensing element supports accurate and repeatable temperature monitoring. Analogue output and IO-Link communication provide flexible integration with conventional and smart automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 150 mm installation length allows the sensor to reach deeper process areas. This is useful in larger tanks and vessels where surface measurement is not sufficient. The Pt 1000 element provides stable temperature data. IO-Link enables digital process monitoring. The analogue output provides compatibility with standard controllers.
The 1/2 inch NPT external thread supports secure process mounting. The Ø6 mm probe provides a relatively slim sensing profile. Stainless-steel construction supports industrial applications. The long probe should be installed with suitable mechanical support where necessary. Correct sealing is important for pressure-bearing installations.
The 4...20 mA output supports PLC integration. IO-Link enables parameterisation, diagnostics and process-value access. M12 connectivity simplifies industrial wiring. The transmitter can be used in SCADA and plant automation architectures. Its long-probe design supports applications requiring deeper measurement.
Pt 1000 sensing element
150 mm installation length
1/2 inch NPT thread
Ø6 mm probe
4...20 mA output
IO-Link
M12 connector
Long-probe construction
Stainless-steel housing
Liquid and gas measurement
Digital diagnostics
PLC integration
Process monitoring
Temperature control
Industrial automation
Large process vessels
Storage tanks
Pipelines
Cooling systems
Heating systems
Industrial machinery
Hydraulic systems
Pumps
Compressors
Liquid monitoring
Gas monitoring
PLC systems
Process automation
Equipment protection
Industrial IoT
| Specification | Details |
|---|---|
| Product Model | TA2343 |
| Type Code | TA-150FLEN12-A-ZVG/US |
| Product Type | Temperature transmitter |
| Measuring Element | Pt 1000 |
| Accuracy Class | Class A |
| Measuring Range | Model-specific |
| Factory Setting | Model-specific |
| Installation Length | 150 mm |
| Probe Length | 150 mm |
| Probe Diameter | 6 mm |
| Process Connection | 1/2 inch NPT |
| Electrical Connection | M12 × 1 |
| Analogue Output | 1 |
| Output Signal | 4...20 mA |
| Communication | IO-Link |
| Media | Liquids and gases |
| Supply | Model-specific |
| Housing Material | Stainless steel |
| Mounting | Threaded |
| Protection | Model-specific |
| Diagnostics | IO-Link |
| Installation | Process mounted |
| Application | General industrial |
| PLC Integration | Yes |
| Pack Quantity | 1 pcs |
