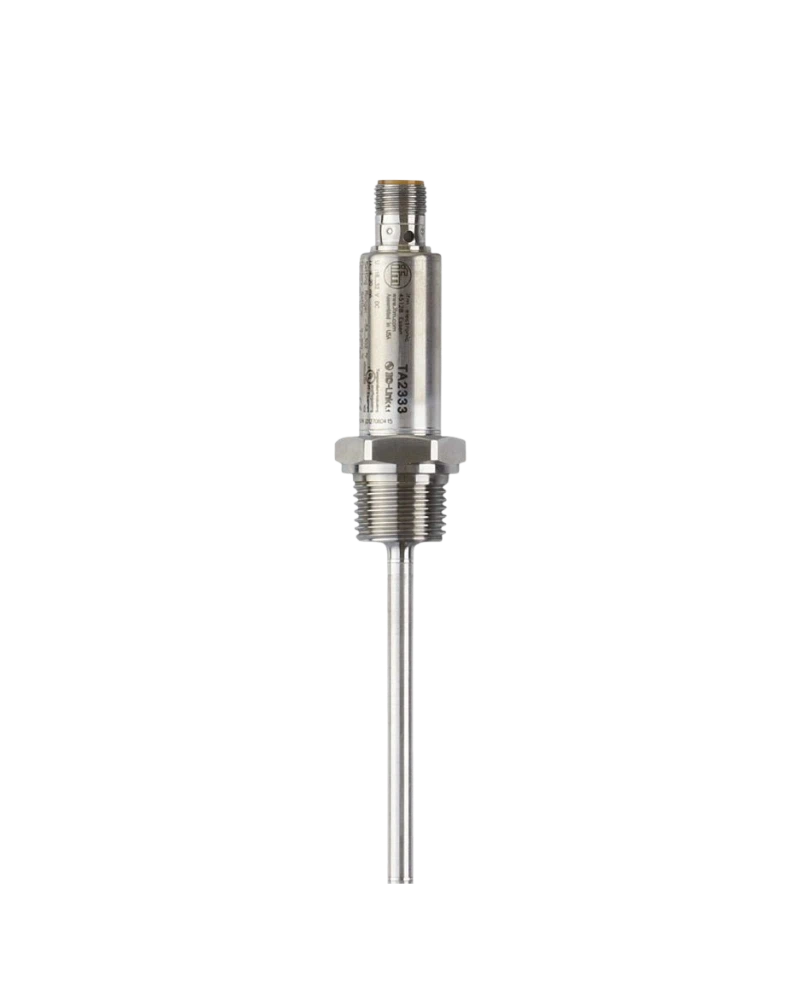

TA2333 is a 100 mm industrial temperature transmitter designed for deeper process measurement. It uses a Pt1000 Class A sensing element and provides a −50…150 °C temperature range. The device uses a 1/2-inch NPT external connection and a scalable 4–20 mA output. IO-Link provides digital communication and parameterisation. Its stainless-steel housing makes it suitable for industrial process systems and machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2333 is designed for temperature monitoring in tanks, piping and industrial process equipment. The 100 mm probe provides extended sensing depth. Its Pt1000 Class A element provides accurate and repeatable measurements. The 4–20 mA output supports conventional control systems. IO-Link provides advanced digital configuration and diagnostics.
The Pt1000 element changes resistance according to process temperature. Electronics convert the resistance into a temperature value. The analogue output communicates the measurement continuously. IO-Link provides digital process data. This architecture supports automated temperature control.
The transmitter has a stainless-steel cylindrical housing. Its 6 mm probe provides reliable mechanical performance. The 1/2-inch NPT connection supports industrial process installation. High protection ratings support wet and demanding environments. The sensor is designed for continuous industrial operation.
Pt1000 Class A
−50…150 °C
100 mm installation length
6 mm probe
1/2-inch NPT
4–20 mA
IO-Link 1.1
COM2
M12 connector
Gold-plated contacts
Stainless steel
300 bar pressure rating
0.04 K resolution
Fast response
IP67/IP68/IP69K
Shock resistance
Vibration resistance
PLC integration
Digital diagnostics
Industrial tanks
Process vessels
Pipelines
Machine automation
Pump systems
Compressor systems
Plant engineering
Temperature control
Process monitoring
PLC systems
SCADA
OEM machinery
Equipment protection
Maintenance
Industrial automation
| Specification | Details |
|---|---|
| Product model | TA2333 |
| Order code | TA-100FLEN12-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…150 °C |
| Factory setting | 0…100 °C / model configuration |
| Installation length | 100 mm |
| Probe diameter | 6 mm |
| Process connection | 1/2 in NPT external |
| Media | Liquids and gases |
| Pressure rating | 300 bar |
| Output | 4–20 mA |
| Output type | Scalable |
| Communication | IO-Link |
| Revision | 1.1 |
| Transmission | COM2 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05/T09 | 1 / 3 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Electrical connection | M12 |
| Housing | Stainless steel |
