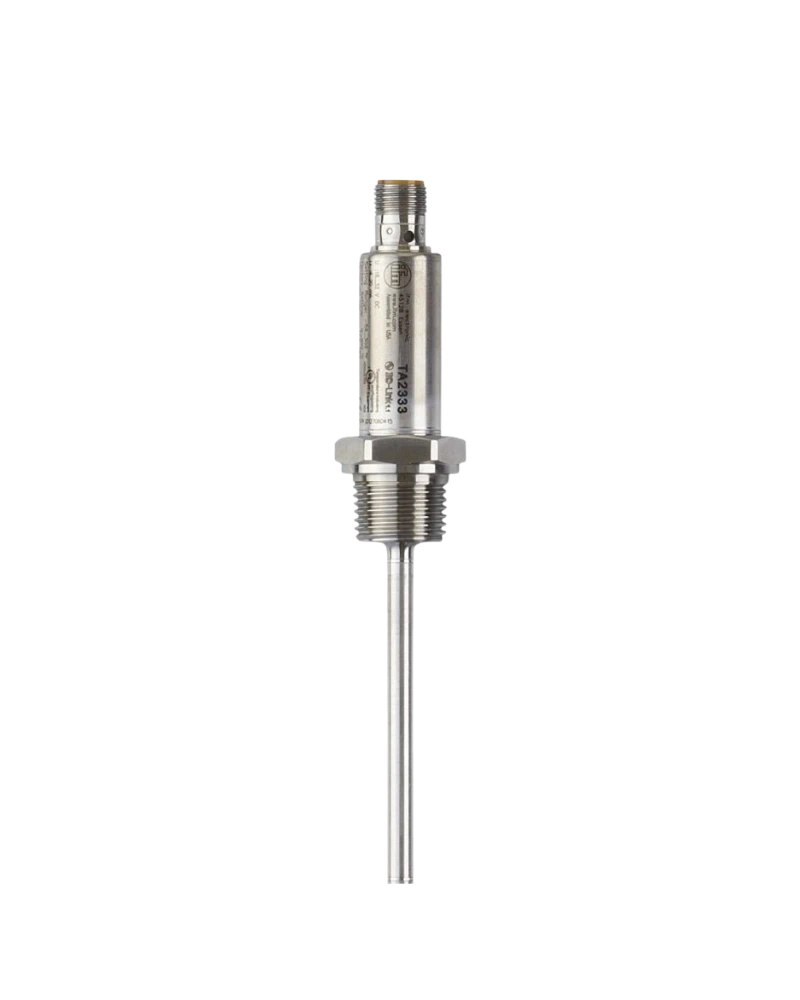

TA2333 is an extended temperature transmitter designed for deeper process measurement in industrial applications. Its 100 mm installation length allows the sensing point to reach further into tanks and process vessels. The 1/2 inch NPT process connection provides practical threaded installation. The Pt 1000 sensing element provides reliable temperature measurement with analogue and IO-Link communication. Its extended probe makes it suitable for applications where compact 30 mm variants cannot reach the required measurement point.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 100 mm installation length provides greater insertion depth than compact transmitters. This allows measurement further inside tanks, vessels and pipes. Pt 1000 technology provides stable temperature information. The transmitter supports continuous temperature monitoring. IO-Link allows digital process-data access and parameterisation.
The 1/2 inch NPT external thread supports secure installation. The Ø6 mm probe maintains a compact sensing profile. The extended probe is suitable for deeper process measurement. Stainless-steel construction provides industrial durability. Proper mounting and sealing should be selected based on the process conditions.
The analogue output supports standard PLC and controller integration. IO-Link provides digital configuration and diagnostics. M12 connectivity provides a standard industrial interface. The transmitter can be integrated into SCADA and automation systems. This supports both conventional and smart-factory applications.
Pt 1000 sensing element
100 mm installation length
1/2 inch NPT connection
Ø6 mm probe
4...20 mA output
IO-Link
M12 connector
Extended probe
Stainless-steel construction
Liquid measurement
Gas measurement
Digital diagnostics
PLC integration
Process monitoring
Industrial automation
Process tanks
Pipelines
Industrial vessels
Cooling systems
Heating systems
Hydraulic systems
Pumps
Compressors
Liquid monitoring
Gas monitoring
Process automation
PLC systems
Temperature control
Equipment protection
Industrial IoT
| Specification | Details |
|---|---|
| Product Model | TA2333 |
| Type Code | TA-100FLEN12-A-ZVG/US |
| Measuring Element | Pt 1000 |
| Accuracy Class | Class A |
| Measuring Range | Model-specific |
| Factory Setting | Model-specific |
| Installation Length | 100 mm |
| Probe Diameter | 6 mm |
| Process Connection | 1/2 inch NPT |
| Electrical Connection | M12 × 1 |
| Analogue Output | 1 |
| Output | 4...20 mA |
| Communication | IO-Link |
| Media | Liquids and gases |
| Supply | Model-specific |
| Housing | Stainless steel |
| Probe Design | Cylindrical |
| Mounting | Threaded |
| Protection | Model-specific |
| Diagnostics | IO-Link |
| Installation | Process mounted |
| Application | General industrial |
| PLC Compatibility | Yes |
| Pack Quantity | 1 pcs |
