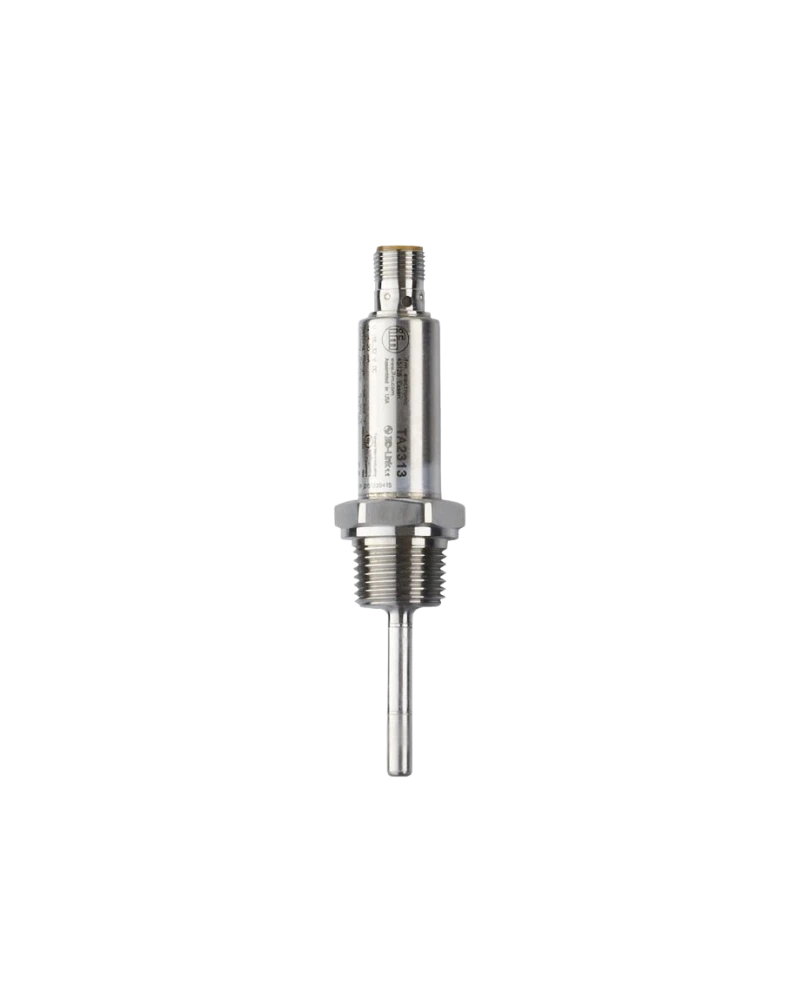

TA2313 is a 50 mm industrial temperature transmitter designed for reliable process temperature measurement. It uses a Pt1000 Class A element and provides a −50…150 °C measuring range. The transmitter uses a 1/2-inch NPT external process connection and a scalable 4–20 mA output. IO-Link enables digital configuration, diagnostics and process-data access. Its stainless-steel construction supports demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2313 provides accurate temperature monitoring in machinery and process equipment. The 50 mm probe length provides deeper sensing than the 30 mm model. Its Pt1000 element delivers stable temperature measurement. The analogue output can be connected to PLC systems. IO-Link provides additional digital functionality.
The Pt1000 element responds to process temperature through resistance change. Internal electronics convert the resistance into a calibrated temperature value. A 4–20 mA signal transmits the measurement to the control system. IO-Link provides digital process communication. This supports continuous automated temperature monitoring.
TA2313 uses a cylindrical stainless-steel housing and 6 mm probe. The 1/2-inch NPT process connection provides secure installation. Gold-plated M12 contacts improve electrical reliability. High IP protection supports industrial environments. The transmitter is resistant to shock and vibration within its rated limits.
Pt1000 Class A
−50…150 °C
50 mm installation length
6 mm probe
1/2-inch NPT
4–20 mA
IO-Link 1.1
COM2
M12 connector
Gold-plated contacts
Stainless steel
300 bar pressure rating
0.04 K resolution
1 / 3 s response
IP67/IP68/IP69K
50 g shock resistance
20 g vibration resistance
PLC integration
Process machinery
Industrial piping
Hydraulic equipment
Pumps
Compressors
Machine tools
Plant automation
Temperature control
Process monitoring
OEM machinery
PLC systems
SCADA
Equipment protection
Preventive maintenance
Industrial automation
| Specification | Details |
|---|---|
| Product model | TA2313 |
| Order code | TA-050FLEN12-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…150 °C |
| Factory setting | 0…100 °C / model configuration |
| Installation length | 50 mm |
| Probe diameter | 6 mm |
| Process connection | 1/2 in NPT external |
| Media | Liquids and gases |
| Pressure rating | 300 bar |
| Output | 4–20 mA |
| Output configuration | Scalable |
| Communication | IO-Link |
| Revision | 1.1 |
| Transmission | COM2 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response | 1 / 3 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Electrical connection | M12 |
| Housing | Stainless steel |
