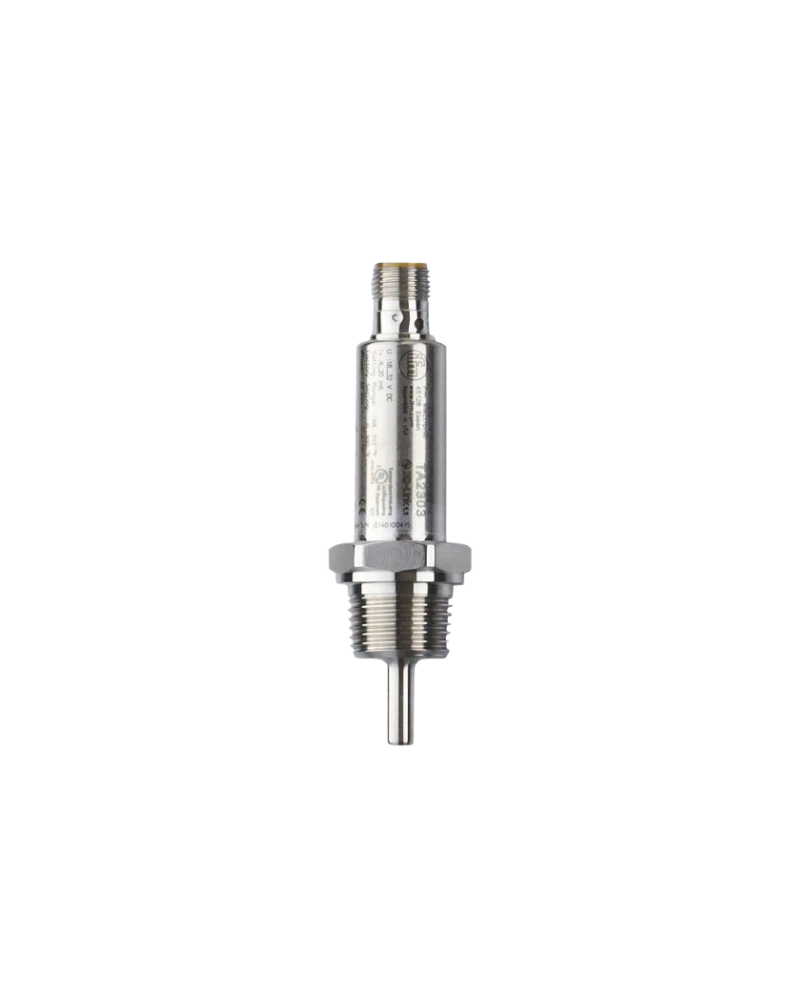

TA2303 is a compact industrial temperature transmitter with a 30 mm installation length. It uses a Pt1000 Class A measuring element and provides a −50…150 °C measurement range. The transmitter features a 1/2-inch NPT external process connection and scalable 4–20 mA output. IO-Link provides digital parameterisation and process-data communication. Its robust stainless-steel construction makes it suitable for industrial machinery, process equipment and plant applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2303 is designed for compact temperature measurement where an NPT process connection is preferred. Its 30 mm installation length allows fast sensing close to the process connection. The Pt1000 Class A element provides accurate temperature measurement. The analogue output enables PLC integration. IO-Link provides digital configuration and diagnostics.
The Pt1000 element detects temperature through resistance variation. Electronics convert the resistance value into a temperature measurement. The transmitter outputs a proportional 4–20 mA signal. IO-Link provides digital process data and parameterisation. This enables continuous monitoring and control.
TA2303 uses stainless-steel construction for industrial durability. The 6 mm probe provides compact sensing. The 1/2-inch NPT external connection supports common North American industrial installations. High pressure resistance provides mechanical robustness. IP67/IP68/IP69K protection supports demanding environments.
Pt1000 Class A
−50…150 °C
30 mm installation length
6 mm probe
1/2-inch NPT connection
4–20 mA output
IO-Link
COM2
M12 connector
Gold-plated contacts
Stainless steel
High pressure resistance
0.04 K resolution
Fast response
High IP protection
PLC integration
Digital diagnostics
Scalable output
Industrial machinery
Process piping
Hydraulic systems
Pumps
Compressors
Machine tools
Plant engineering
Process monitoring
Temperature control
OEM systems
PLC automation
SCADA systems
Equipment protection
Maintenance
Industrial process control
| Specification | Details |
|---|---|
| Product model | TA2303 |
| Order code | TA-030FLEN12-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…150 °C |
| Factory setting | 0…100 °C / model configuration |
| Installation length | 30 mm |
| Probe diameter | 6 mm |
| Process connection | 1/2 in NPT external |
| Media | Liquids and gases |
| Pressure rating | Up to 400 bar |
| Output | 4–20 mA |
| Output | Scalable |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission | COM2 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05/T09 | 1 / 3 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Electrical connection | M12 |
| Housing | Stainless steel |
