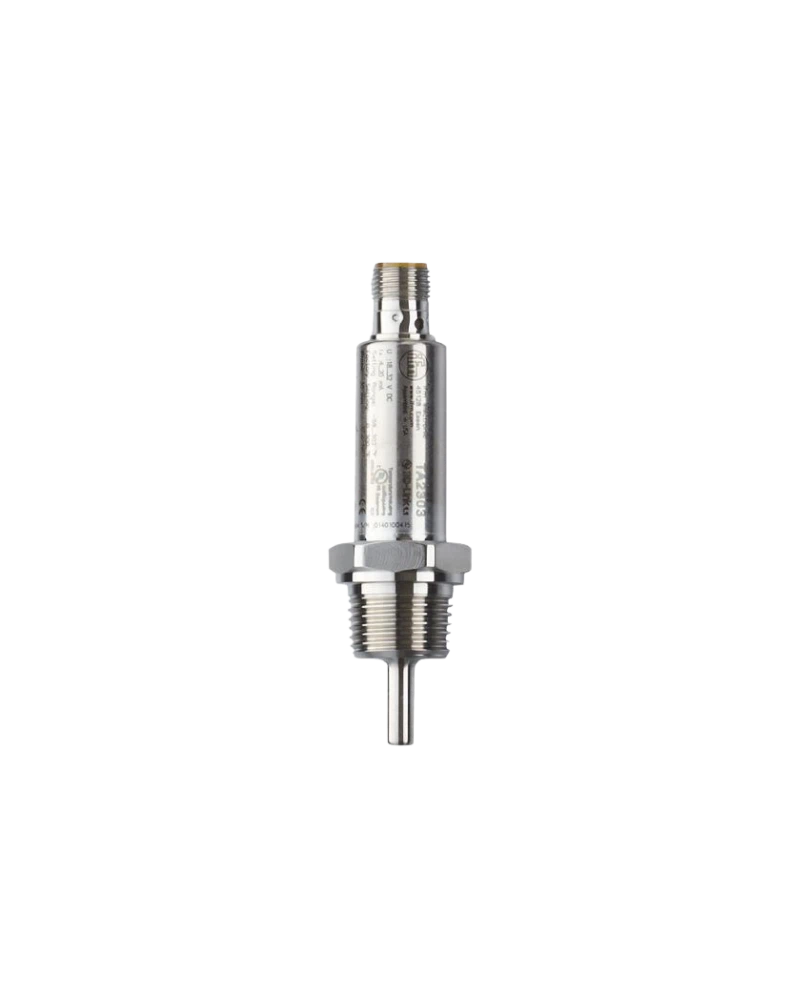

TA2303 is a compact temperature transmitter designed for general industrial process applications. It uses a Pt 1000 Class A sensing element and provides analogue output with IO-Link communication. Its 30 mm installation length and 1/2 inch NPT external process connection support practical industrial installation. The Ø6 mm probe provides a compact sensing profile. The transmitter is suitable for process temperature measurement in liquids and gases and is available with industrial approvals including CE, UL and DNV.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The transmitter provides reliable resistance-based temperature measurement using a Pt 1000 element. Its compact probe responds to process temperature changes quickly. The 4...20 mA output supports conventional industrial controllers. IO-Link provides additional digital communication capabilities. The device is suitable for continuous monitoring and process control.
TA2303 uses a 1/2 inch NPT external thread for process installation. The installation length is 30 mm. The Ø6 mm probe provides a compact measurement point. The M12 × 1 electrical connector supports industrial wiring. Its compact construction allows use in restricted process areas.
The transmitter provides one analogue output and IO-Link communication. Its industrial certification options support a broad range of installations. The device can be connected to PLC and automation systems. Digital communication provides access to configuration and process information. This makes TA2303 suitable for general industrial temperature monitoring.
Pt 1000 Class A
30 mm installation length
1/2 inch NPT external thread
Ø6 mm probe
4...20 mA output
IO-Link
M12 connector
Compact construction
Industrial approvals
Liquid measurement
Gas measurement
Process monitoring
PLC integration
Digital diagnostics
Industrial automation
Industrial pipelines
Process vessels
Hydraulic equipment
Pumps
Compressors
Cooling systems
Heating systems
Machine tools
Liquid monitoring
Gas monitoring
Process automation
PLC control
Temperature alarms
Equipment protection
Industrial IoT
| Specification | Details |
|---|---|
| Product Model | TA2303 |
| Type Code | TA-030FLEN12-A-ZVG/US |
| Product Type | Temperature transmitter |
| Measuring Element | Pt 1000 |
| Accuracy Class | Class A |
| Measuring Range | Model-specific |
| Factory Setting | Model-specific |
| Installation Length | 30 mm |
| Probe Diameter | 6 mm |
| Process Connection | 1/2 inch NPT external |
| Electrical Connection | M12 × 1 |
| Analogue Output | 1 |
| Output | 4...20 mA |
| Communication | IO-Link |
| Media | Liquids and gases |
| Supply | Model-specific |
| Housing | Stainless steel |
| Probe Material | Model-specific |
| Protection | Model-specific |
| Approvals | CE / UL / DNV / UKCA |
| Installation | Process mounted |
| Mounting | Threaded |
| Application | General industrial |
| Diagnostics | IO-Link |
| Pack Quantity | 1 pcs |
