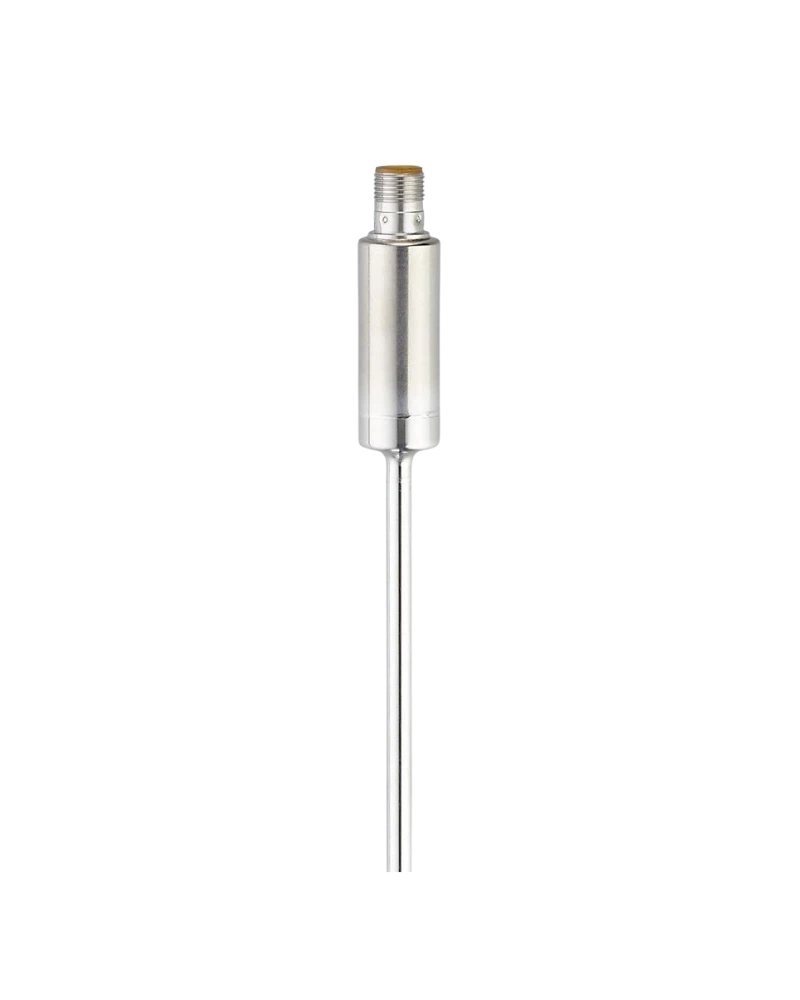

TA2292 is an extended-length temperature transmitter with a 350 mm installation depth. It uses a Pt1000 Class A element for accurate measurement from −50 to 200 °C. The transmitter provides a configurable 4–20 mA output and IO-Link communication. Its 6 mm probe is designed for deep tanks, vessels and process equipment. TA2292 combines extended reach with industrial-grade pressure and environmental resistance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2292 is suitable for applications where conventional short probes cannot reach the process medium. Its 350 mm sensing length allows measurement deep inside large process vessels. The Pt1000 Class A element provides accurate and repeatable temperature monitoring. The analogue output supports standard automation systems. IO-Link provides digital configuration and process diagnostics.
Temperature changes cause a resistance variation in the Pt1000 element. The electronics calculate the process temperature from this resistance. A 4–20 mA output communicates the temperature to the control system. IO-Link provides digital process information. Continuous sensing supports automated process control.
The transmitter has a robust stainless-steel construction. Its 6 mm probe provides long insertion depth with a compact diameter. The clamp-adapter interface supports process installation. High pressure resistance supports industrial process applications. IP protection helps protect the electronics from environmental exposure.
350 mm installation length
Pt1000 Class A
−50…200 °C
Ø6 mm probe
Clamp adapter
4–20 mA
IO-Link
COM2
M12 connection
Stainless steel
160 bar pressure rating
0.04 K resolution
Fast response
High IP rating
Reverse polarity protection
Short-circuit protection
Overload protection
PLC integration
Digital diagnostics
Large process tanks
Deep vessels
Industrial pipelines
Chemical process equipment
Plant engineering
Pump systems
Temperature monitoring
Process control
PLC systems
SCADA systems
OEM machinery
Equipment protection
Maintenance
Process automation
Industrial temperature measurement
| Specification | Details |
|---|---|
| Product model | TA2292 |
| Order code | TA-350CLED06--/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Factory setting | 0…200 °C |
| Installation length | 350 mm |
| Probe diameter | 6 mm |
| Process connection | Clamp adapter Ø6 mm |
| Media | Liquids and gases |
| Pressure rating | 160 bar |
| Vacuum resistance | −1000 mbar |
| Output | 4–20 mA |
| Output configuration | Scalable |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05/T09 | <0.5 / <2 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Electrical connection | M12 |
| Housing | Stainless steel |
