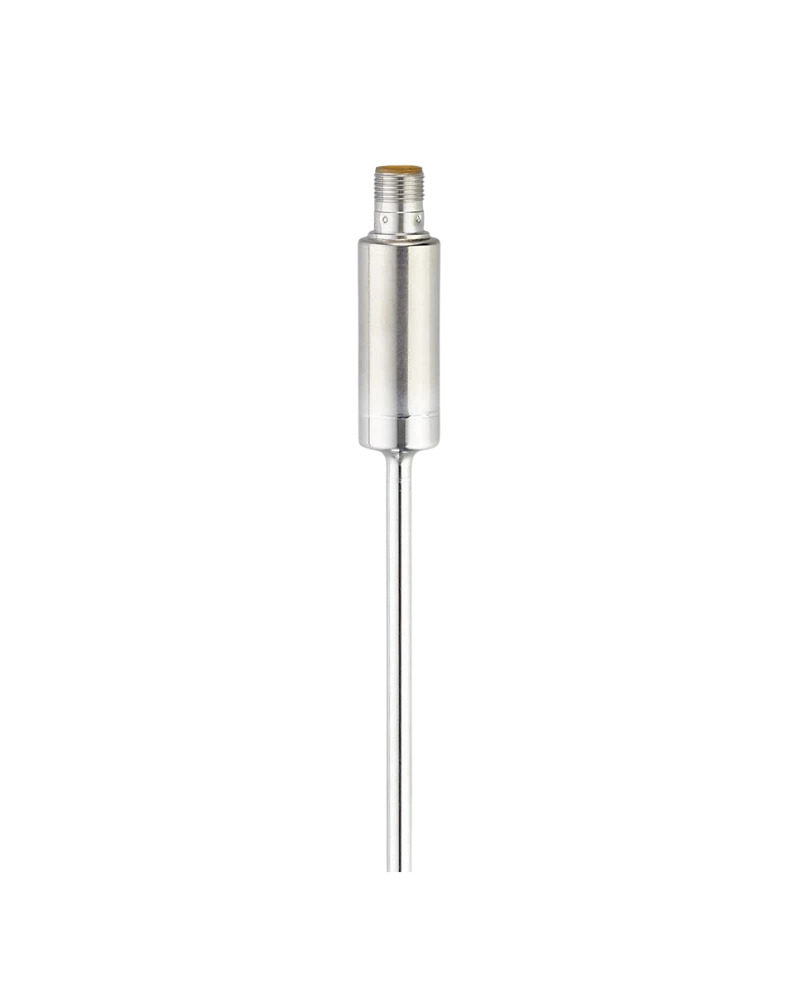

TA2292 is an extended-reach temperature transmitter designed for deep measurement in large process vessels and industrial systems. Its 350 mm installation length allows the sensing point to be positioned significantly deeper than standard compact variants. The Pt 1000 Class A sensing element provides stable and repeatable temperature measurement. Its Ø6 mm probe maintains a slim sensing profile. Analogue and IO-Link communication provide flexible integration with modern industrial control systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 350 mm installation length is suited to large tanks, vessels and deep process installations. The sensing element can reach deeper process layers where surface measurement is insufficient. Pt 1000 technology provides reliable temperature information. IO-Link allows digital process data to be transmitted to the control system. This design is useful for applications requiring extended insertion depth.
The long probe requires appropriate mechanical support and process installation. The Ø6 mm sensing profile helps minimise installation space. Stainless-steel construction supports industrial durability. Suitable fittings should be selected based on the process requirements. Correct alignment and installation help maintain reliable measurement.
The 4...20 mA output provides conventional control-system integration. IO-Link provides digital configuration and diagnostic information. M12 connectivity simplifies industrial wiring. The transmitter can be connected to PLC and SCADA systems. Its digital capability supports condition monitoring and maintenance strategies.
Pt 1000 Class A
350 mm installation length
Ø6 mm probe
4...20 mA output
IO-Link
M12 connector
Long-reach construction
Stainless-steel design
Liquid and gas measurement
Process monitoring
Digital diagnostics
PLC compatibility
Temperature control
Industrial automation
Deep-vessel measurement
Large tanks
Deep process vessels
Industrial reactors
Pipelines
Chemical process systems
Heating systems
Cooling systems
Industrial machinery
Liquid monitoring
Gas monitoring
Process automation
PLC control
Equipment protection
Thermal management
Industrial IoT
| Specification | Details |
|---|---|
| Product Model | TA2292 |
| Type Code | TA-350CLED06- - /US |
| Product Type | Temperature transmitter |
| Measuring Element | Pt 1000 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | Model-specific |
| Factory Setting | Model-specific |
| Installation Length | 350 mm |
| Probe Length | 350 mm |
| Probe Diameter | 6 mm |
| Process Connection | Clamp Ø6 mm |
| Media | Liquids and gases |
| Pressure Rating | Model-specific |
| Analogue Output | 1 |
| Output Signal | 4...20 mA |
| Communication | IO-Link |
| Connector | M12 |
| Supply | 18...32 V DC |
| Current Consumption | <50 mA |
| Protection Class | III |
| Housing | Stainless steel |
| Protection | IP67/IP68/IP69K |
| Pack Quantity | 1 pcs |
