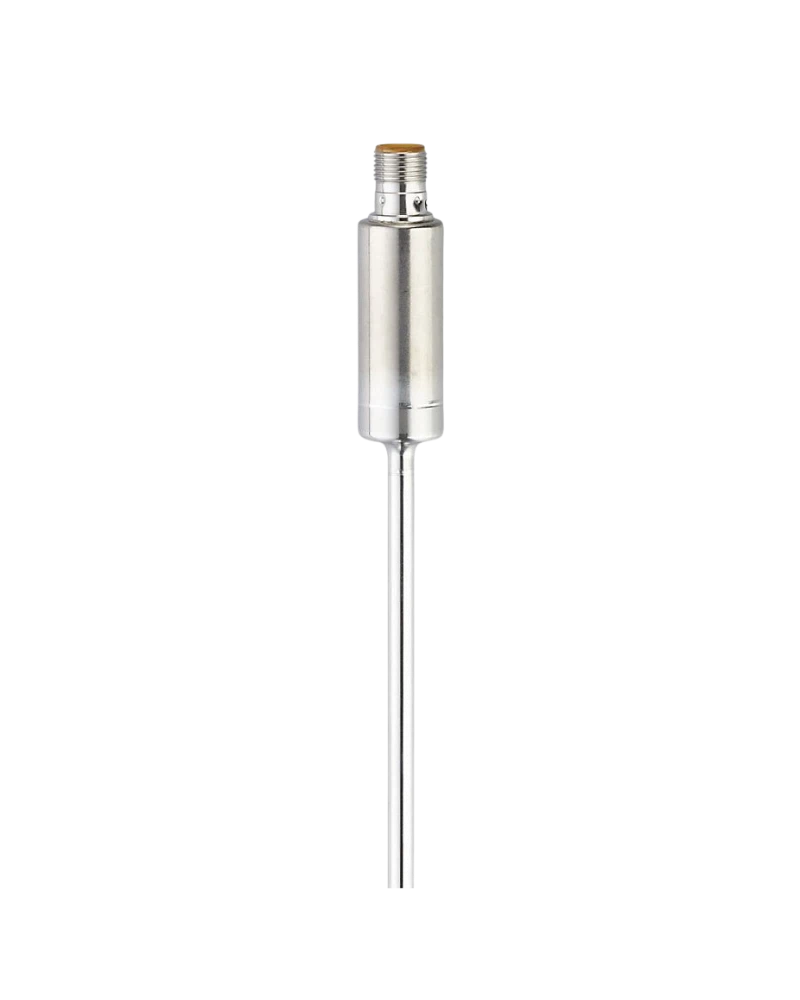

TA2262 is a long-probe temperature transmitter designed for temperature measurement at 250 mm insertion depth. It uses a Pt1000 Class A element and supports a −50…200 °C measuring range. The transmitter provides 4–20 mA analogue output with IO-Link communication. Its Ø6 mm probe is suitable for deeper process vessels and piping. TA2262 provides reliable temperature measurement for industrial process monitoring and automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2262 is intended for applications where a long insertion probe is required to reach the process medium. Its 250 mm installation length is suitable for deeper tanks and vessels. The Pt1000 Class A element provides stable temperature measurement. The analogue output supports PLC integration. IO-Link provides digital configuration and diagnostic information.
The Pt1000 element changes electrical resistance according to temperature. Electronics interpret this resistance and calculate the measured temperature. The result is transmitted as a scalable 4–20 mA signal. IO-Link provides digital process information. Continuous sensing allows automated temperature control.
TA2262 uses a stainless-steel housing with a 6 mm probe. The clamp adapter provides flexible mounting. Its long probe is designed for deeper process measurement. High pressure and protection ratings support industrial applications. Mechanical robustness enables long-term operation.
Pt1000 Class A
−50…200 °C
250 mm installation length
Ø6 mm probe
Clamp adapter
4–20 mA
IO-Link 1.1
COM2
M12 connector
Stainless steel
160 bar pressure rating
0.04 K resolution
Fast response
IP67/IP68/IP69K
Reverse polarity protection
Overload protection
Short-circuit protection
Digital parameterisation
Deep process tanks
Storage vessels
Industrial piping
Process machinery
Plant engineering
Pump systems
Temperature control
PLC monitoring
SCADA systems
Process alarms
OEM machinery
Equipment protection
Maintenance
Industrial automation
Process monitoring
| Specification | Details |
|---|---|
| Product model | TA2262 |
| Order code | TA-250CLED06--/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Factory setting | 0…200 °C |
| Installation length | 250 mm |
| Probe diameter | 6 mm |
| Process connection | Clamp adapter Ø6 mm |
| Media | Liquids and gases |
| Pressure rating | 160 bar |
| Vacuum resistance | −1000 mbar |
| Output | 4–20 mA |
| Output | Configurable |
| Communication | IO-Link |
| Revision | 1.1 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response | <0.5 / <2 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Electrical connection | M12 |
| Housing | Stainless steel |
