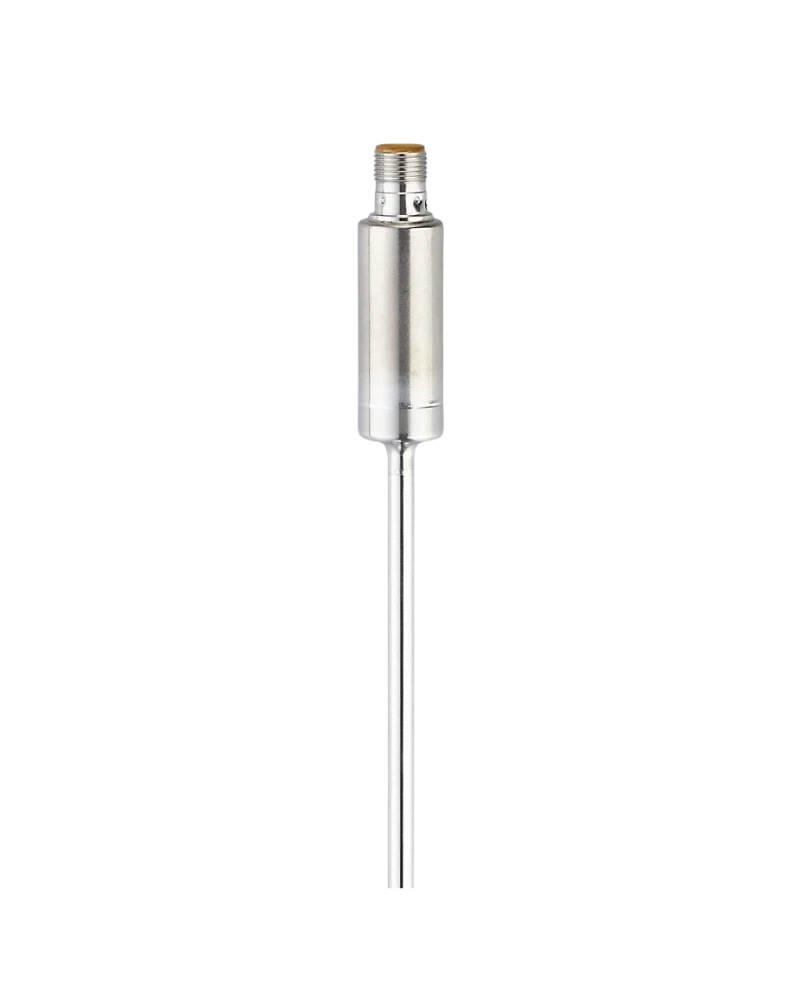

TA2262 is a long-probe temperature transmitter designed for deep process-temperature measurement. Its 250 mm installation length allows the sensing element to reach deeper into large vessels and process systems. The Pt 1000 Class A sensing element provides accurate and repeatable temperature measurement. Its Ø6 mm process interface maintains a slim probe profile. Analogue and IO-Link communication support flexible integration into industrial automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 250 mm probe provides extended reach for large tanks and vessels. The Pt 1000 element provides reliable temperature measurement at the selected process point. The transmitter can be used for liquid and gas monitoring. Digital process information is available through IO-Link. The long-probe configuration is suitable for applications where shorter sensors cannot reach the required measurement position.
The Ø6 mm sensing section provides a relatively compact profile despite the long insertion length. Stainless-steel construction supports mechanical durability. The device should be mounted using compatible process fittings. Proper support and installation are important for long-probe configurations. The design is intended for industrial process installations.
TA2262 supports a configurable 4...20 mA analogue output. IO-Link provides digital communication and parameterisation. M12 connectivity provides standard industrial wiring. The transmitter can be integrated into PLC-based temperature-control systems. Diagnostic data can support preventive maintenance and troubleshooting.
Pt 1000 Class A
250 mm installation length
Ø6 mm process interface
4...20 mA output
IO-Link
M12 connector
Long-reach probe
Stainless-steel construction
Liquid measurement
Gas measurement
Digital diagnostics
PLC integration
Process monitoring
Temperature control
Industrial automation
Large storage tanks
Process vessels
Industrial reactors
Pipelines
Heating systems
Cooling systems
Chemical equipment
Industrial machinery
Liquid monitoring
Gas monitoring
Process automation
PLC control
Equipment protection
Thermal management
Industrial IoT
| Specification | Details |
|---|---|
| Product Model | TA2262 |
| Type Code | TA-250CLED06- - /US |
| Product Type | Temperature transmitter |
| Measuring Element | Pt 1000 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | Model-specific |
| Factory Setting | Model-specific |
| Installation Length | 250 mm |
| Probe Length | 250 mm |
| Probe Diameter | 6 mm |
| Process Connection | Clamp Ø6 mm |
| Media | Liquids and gases |
| Pressure Rating | Model-specific |
| Analogue Output | 1 |
| Output | 4...20 mA |
| Communication | IO-Link |
| Connector | M12 |
| Supply Voltage | 18...32 V DC |
| Current Consumption | <50 mA |
| Protection Class | III |
| Housing Material | Stainless steel |
| Protection | IP67/IP68/IP69K |
| Pack Quantity | 1 pcs |
