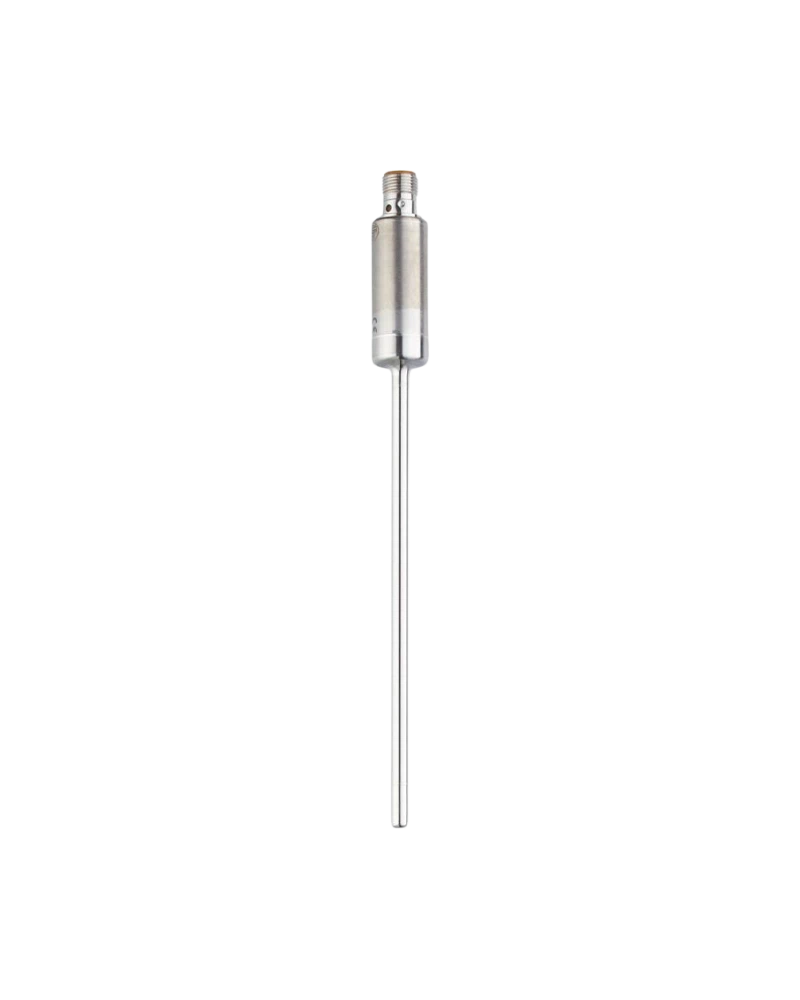

TA2247 is another long-probe temperature transmitter in the TA industrial series, designed for process-temperature monitoring. Its 150 mm installation length provides deeper measurement into tanks and process vessels. The Pt 1000 Class A sensing element delivers stable temperature measurement. A compact Ø6 mm process interface supports practical installation. The combination of analogue output and IO-Link provides flexible integration into industrial control systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The Pt 1000 sensing element provides dependable temperature information for continuous process monitoring. Its long probe helps position the sensing point correctly inside larger process equipment. The transmitter is suitable for liquids and gases. Digital communication allows access to process values and diagnostics. The analogue signal supports conventional temperature-control systems.
The 150 mm installation length supports deep process measurement. The Ø6 mm construction keeps the sensing section compact. Stainless-steel construction provides suitable mechanical durability. The device can be installed using compatible process fittings. Correct installation helps maintain measurement accuracy and reliability.
The transmitter supports a configurable analogue output and IO-Link. The 4...20 mA signal is suitable for standard PLC inputs. IO-Link enables digital configuration and diagnostic functions. M12 connectivity simplifies field wiring. The device is suitable for connected industrial automation.
Pt 1000 Class A
150 mm installation length
Ø6 mm process connection
4...20 mA output
IO-Link
M12 connector
Long-probe construction
Stainless-steel housing
Liquid and gas measurement
Digital diagnostics
PLC integration
Process monitoring
Temperature control
Industrial automation
Machine protection
Process vessels
Storage tanks
Pipelines
Cooling systems
Heating equipment
Industrial machinery
Pumps
Compressors
Liquid monitoring
Gas monitoring
PLC systems
Process automation
Equipment protection
Thermal management
Industrial IoT
| Specification | Details |
|---|---|
| Product Model | TA2247 |
| Type Code | TA-150CLED06- - /US |
| Measuring Element | Pt 1000 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | Model-specific |
| Factory Setting | Model-specific |
| Installation Length | 150 mm |
| Probe Length | 150 mm |
| Probe Diameter | 6 mm |
| Process Connection | Clamp Ø6 mm |
| Media | Liquids and gases |
| Pressure Rating | Model-specific |
| Analogue Output | 1 |
| Output Signal | 4...20 mA |
| Communication | IO-Link |
| Connector | M12 |
| Supply | 18...32 V DC |
| Current Consumption | <50 mA |
| Protection Class | III |
| Housing | Stainless steel |
| Protection | IP67/IP68/IP69K |
| Application | Industrial process |
| Pack Quantity | 1 pcs |
