TA2242 is a 150 mm temperature transmitter designed for industrial temperature measurement in deeper process installations. It uses a Pt1000 Class A measuring element and supports −50…200 °C. The factory range is configured to 0…200 °C for convenient process measurement. A scalable 4–20 mA output provides analogue integration while IO-Link enables digital communication. Its 6 mm probe, clamp adapter and stainless-steel construction provide reliable process installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2242 is designed for temperature measurement in tanks, vessels and process piping. The 150 mm probe provides extended insertion depth. Its Pt1000 Class A element delivers accurate temperature measurement. The 4–20 mA output supports PLC integration. IO-Link adds digital parameterisation and diagnostics.
Temperature is measured through the resistance variation of the Pt1000 element. The internal electronics calculate the temperature from the resistance value. The transmitter provides the result through a scalable 4–20 mA signal. IO-Link provides additional digital process data. Continuous measurement supports automated process control.

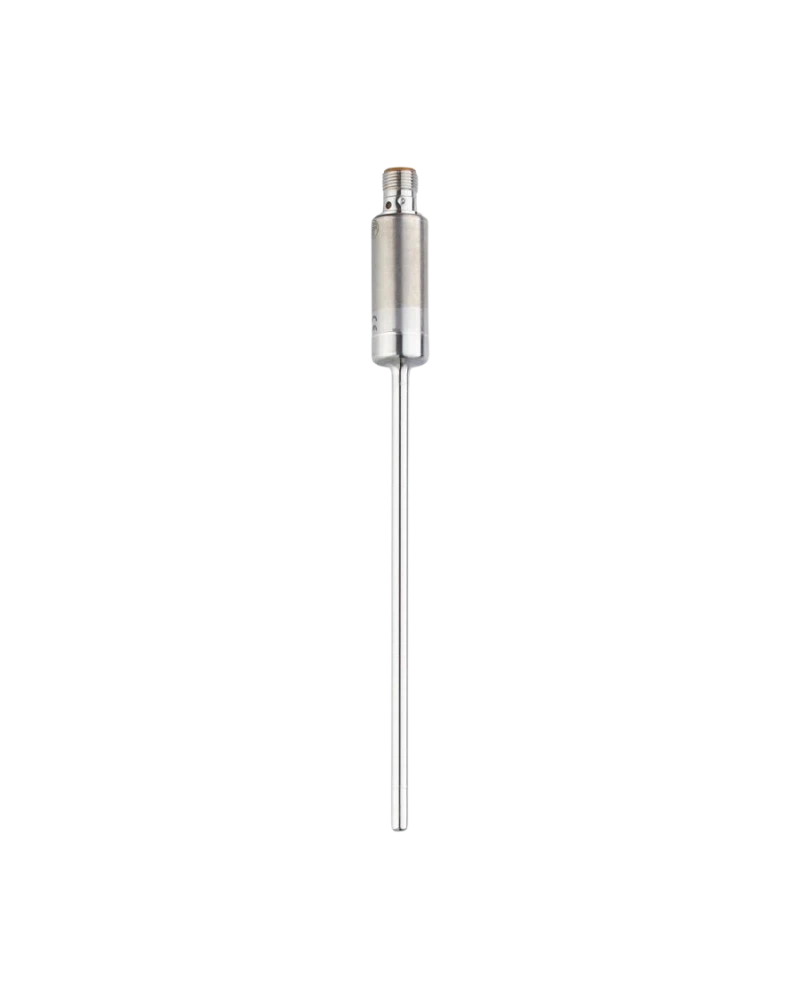

TA2242 uses a stainless-steel cylindrical housing and Ø6 mm probe. The clamp-adapter interface supports flexible installation. The sensor is designed for liquids and gases. IP67/IP68/IP69K protection helps protect against moisture and washdown conditions. High pressure resistance supports industrial process use.
Pt1000 Class A
−50…200 °C
0…200 °C factory setting
150 mm installation length
Ø6 mm probe
4–20 mA
IO-Link 1.1
Clamp adapter
M12 connector
Stainless steel
160 bar pressure rating
0.04 K resolution
Fast response
Digital diagnostics
Reverse polarity protection
Short-circuit protection
Overload protection
PLC integration
Process tanks
Industrial vessels
Pipelines
Process machinery
Pump systems
Compressor systems
Plant automation
Temperature control
OEM equipment
PLC systems
SCADA monitoring
Equipment protection
Process alarms
Maintenance
Industrial automation
| Specification | Details |
|---|---|
| Product model | TA2242 |
| Order code | TA-150CLED06--/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Factory setting | 0…200 °C |
| Installation length | 150 mm |
| Probe diameter | 6 mm |
| Process connection | Clamp adapter Ø6 mm |
| Media | Liquids and gases |
| Pressure rating | 160 bar |
| Vacuum resistance | −1000 mbar |
| Output | 4–20 mA |
| Output | Configurable |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05/T09 | <0.5 / <2 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Connection | M12 |
| Housing | Stainless steel |
