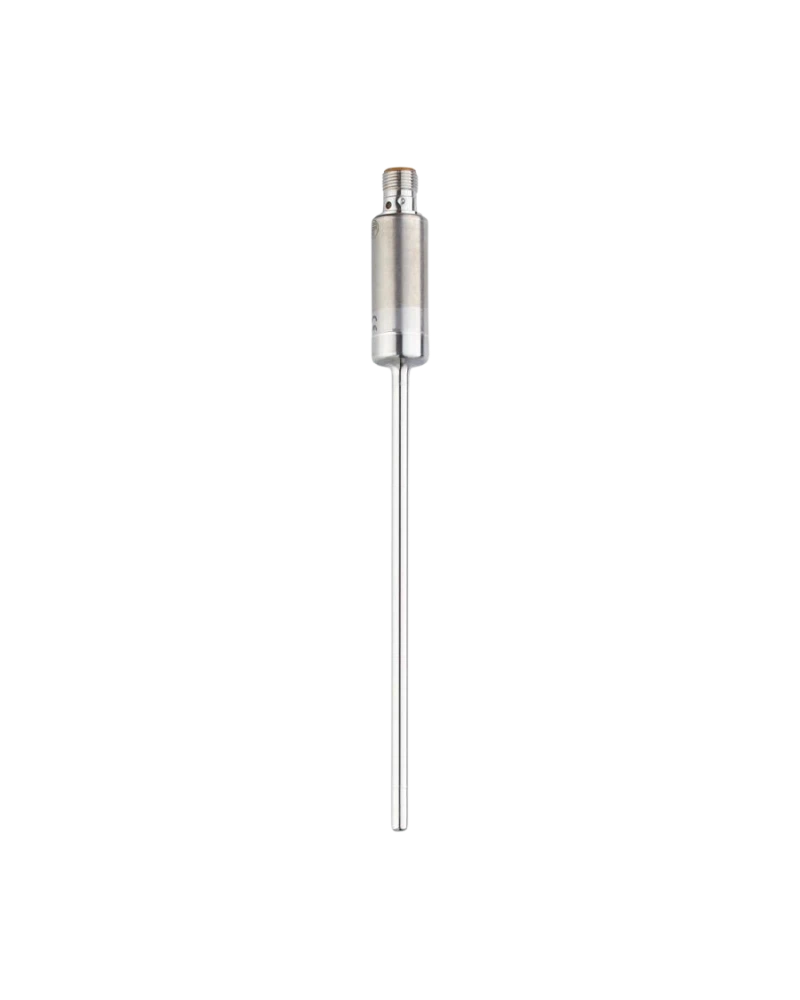

TA2242 is a long-probe industrial temperature transmitter designed for reliable process-temperature measurement. Its 150 mm installation length supports deeper measurement in process equipment. The Pt 1000 Class A sensing element provides stable and repeatable temperature data. The Ø6 mm process connection supports compact mechanical integration. Analogue output and IO-Link communication make the device suitable for PLC, SCADA and smart-factory applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The long sensing probe allows the measurement point to be positioned deeper inside vessels and piping. The RTD element provides dependable resistance-based temperature measurement. The transmitter can be used for continuous process monitoring. IO-Link supports digital process-value transmission. The analogue signal allows easy integration with existing control systems.
The Ø6 mm process connection provides a compact mounting arrangement. The 150 mm installation length supports deeper process immersion. Stainless-steel construction provides mechanical durability. The transmitter is suitable for appropriate process adapters and fittings. Installation should be selected according to media, pressure and temperature requirements.
The transmitter supports a configurable 4...20 mA signal. IO-Link provides parameterisation and diagnostic information. M12 connectivity supports reliable industrial wiring. The combination of analogue and digital communication provides flexible integration. This supports both legacy PLC systems and modern automation architectures.
Pt 1000 Class A
150 mm installation length
Ø6 mm process connection
4...20 mA output
IO-Link
M12 connector
Stainless-steel construction
Long-probe design
Liquid measurement
Gas measurement
Process monitoring
Digital diagnostics
PLC compatibility
Temperature control
Industrial automation
Process tanks
Pipelines
Industrial machinery
Cooling systems
Heating systems
Hydraulic equipment
Pumps
Compressors
Liquid monitoring
Gas monitoring
Process automation
PLC systems
Equipment protection
Thermal management
Industrial IoT
| Specification | Details |
|---|---|
| Product Model | TA2242 |
| Type Code | TA-150CLED06- - /US |
| Product Type | Temperature transmitter |
| Measuring Element | Pt 1000 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | Model-specific |
| Factory Setting | Model-specific |
| Installation Length | 150 mm |
| Probe Length | 150 mm |
| Probe Diameter | 6 mm |
| Process Connection | Clamp Ø6 mm |
| Media | Liquids and gases |
| Analogue Output | 1 |
| Output | 4...20 mA |
| Communication | IO-Link |
| Connector | M12 |
| Supply Voltage | 18...32 V DC |
| Current Consumption | <50 mA |
| Protection Class | III |
| Housing Material | Stainless steel |
| Protection | IP67/IP68/IP69K |
| Application | Process temperature |
| Pack Quantity | 1 pcs |
