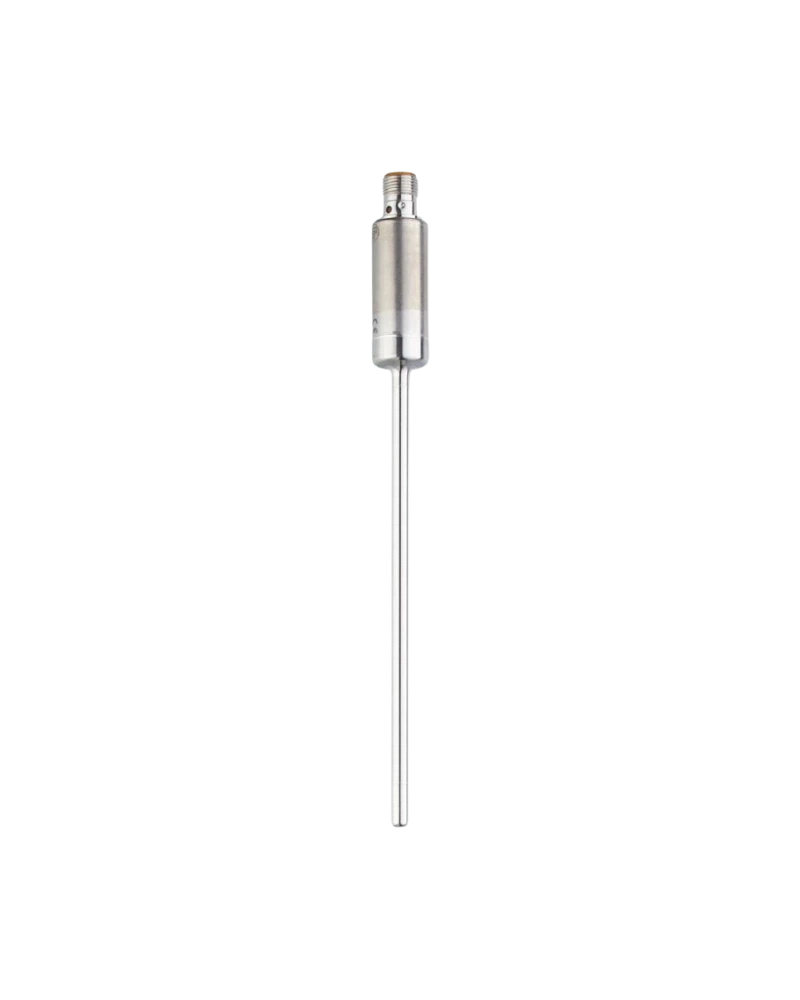

TA2241 is a 150 mm temperature transmitter designed for deeper process temperature measurement. It uses a Pt1000 Class A element and provides a −50…200 °C maximum measuring range. This variant is configured for a −10…150 °C factory measuring range. The transmitter provides 4–20 mA output and IO-Link communication. Its Ø6 mm probe and robust stainless-steel construction support industrial process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2241 is suitable for applications requiring extended probe insertion into process equipment. The 150 mm probe allows temperature measurement deeper inside tanks and pipelines. The Pt1000 Class A element provides stable and repeatable measurement. The analogue output provides a standard industrial signal. IO-Link enables digital configuration and diagnostics.
The Pt1000 resistance varies with process temperature. Electronics convert this resistance into the measured temperature. The transmitter outputs the value through a 4–20 mA signal. IO-Link provides digital access to process information. Continuous measurement supports process control and monitoring.
The transmitter uses a stainless-steel cylindrical housing. Its 6 mm probe provides a long insertion depth while retaining mechanical strength. The clamp adapter allows flexible installation. High protection and pressure resistance support demanding environments. The sensor is suitable for liquids and gases.
Pt1000 Class A
−50…200 °C maximum range
−10…150 °C factory setting
150 mm installation length
Ø6 mm probe
4–20 mA
IO-Link
Clamp adapter
M12 connection
Stainless steel
160 bar pressure resistance
0.04 K resolution
Fast response
High IP protection
Reverse polarity protection
Overload protection
PLC compatible
Digital parameterisation
Industrial tanks
Process vessels
Pipelines
Machine automation
Process monitoring
Pump systems
Compressor systems
Plant engineering
Temperature control
OEM machinery
PLC systems
SCADA
Equipment protection
Maintenance
Industrial process control
| Specification | Details |
|---|---|
| Product model | TA2241 |
| Order code | TA-150CLED06--/US |
| Sensor | Pt1000 Class A |
| Maximum range | −50…200 °C |
| Factory setting | −10…150 °C |
| Installation length | 150 mm |
| Probe diameter | 6 mm |
| Process connection | Clamp adapter Ø6 mm |
| Media | Liquids and gases |
| Pressure rating | 160 bar |
| Vacuum resistance | −1000 mbar |
| Output | 4–20 mA |
| Output type | Scalable |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response | <0.5 / <2 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Electrical connection | M12 |
| Housing | Stainless steel |
