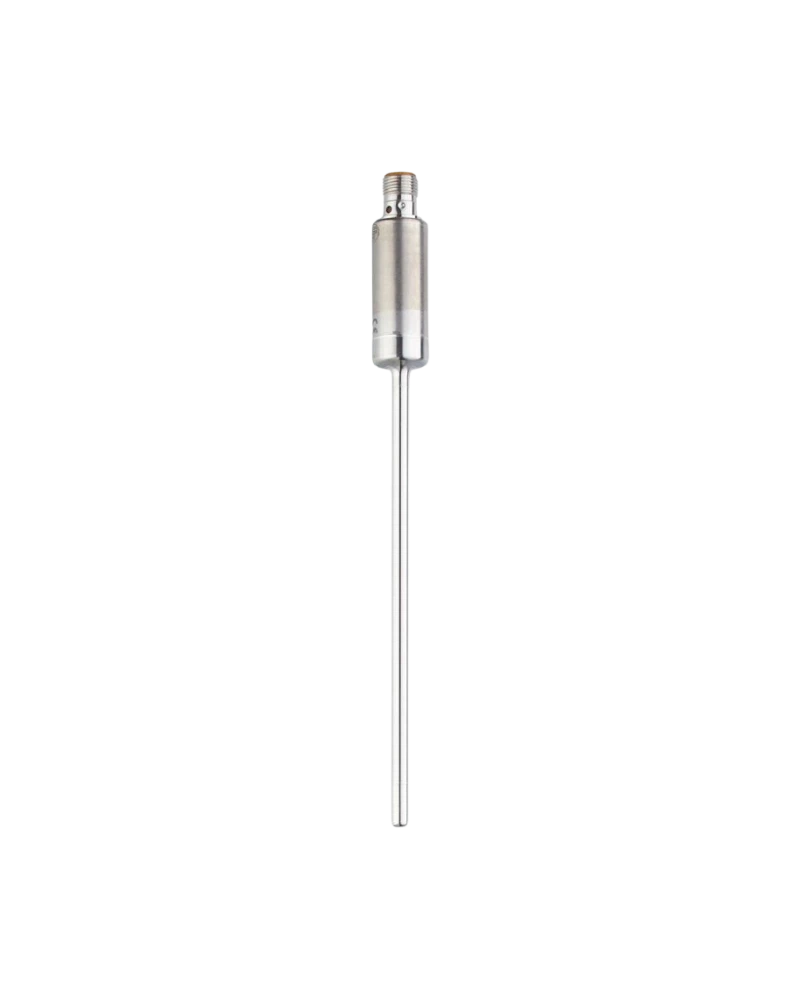

TA2241 is an extended-probe temperature transmitter designed for process applications requiring deeper temperature measurement. It uses a Pt 1000 Class A sensing element for accurate and repeatable measurement. The 150 mm installation length supports deeper insertion into tanks and process vessels. Its Ø6 mm clamp connection provides compact process integration. Analogue 4...20 mA output and IO-Link communication provide flexible automation connectivity.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The Pt 1000 Class A element provides stable temperature measurement across the specified range. The extended probe improves access to the centre of larger process vessels. The sensor can monitor both liquids and gases. IO-Link provides digital process data and device configuration. The analogue output supports standard control-system integration.
The 150 mm installation length allows deeper immersion than shorter variants. The Ø6 mm process interface keeps the probe compact. Stainless-steel construction supports industrial durability. The transmitter is designed for process-mounted installations. Proper sealing and mechanical fixation should be selected according to application requirements.
The 4...20 mA output supports standard PLC and controller inputs. IO-Link adds remote configuration and diagnostics. M12 connectivity provides convenient electrical integration. The transmitter can be integrated into smart automation networks. It supports both conventional and digital temperature monitoring.
Pt 1000 Class A
150 mm installation length
Ø6 mm process connection
4...20 mA output
IO-Link
M12 connector
Stainless-steel construction
Compact probe
Liquid measurement
Gas measurement
Digital diagnostics
PLC integration
Process monitoring
Temperature control
Industrial automation
Large process vessels
Storage tanks
Pipelines
Cooling systems
Heating systems
Industrial machinery
Pumps
Compressors
Liquid monitoring
Gas monitoring
Process control
PLC automation
Equipment protection
Thermal management
Industrial IoT
| Specification | Details |
|---|---|
| Product Model | TA2241 |
| Type Code | TA-150CLED06- - /US |
| Measuring Element | Pt 1000 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | Model-specific |
| Factory Setting | Model-specific |
| Installation Length | 150 mm |
| Probe Length | 150 mm |
| Process Connection | Clamp Ø6 mm |
| Probe Diameter | 6 mm |
| Media | Liquids and gases |
| Pressure Rating | Model-specific |
| Vacuum Resistance | Model-specific |
| Analogue Output | 1 |
| Output Signal | 4...20 mA |
| Communication | IO-Link |
| Connector | M12 |
| Supply | 18...32 V DC |
| Current Consumption | <50 mA |
| Protection Class | III |
| Housing | Stainless steel |
| Protection | IP67/IP68/IP69K |
| Pack Quantity | 1 pcs |
