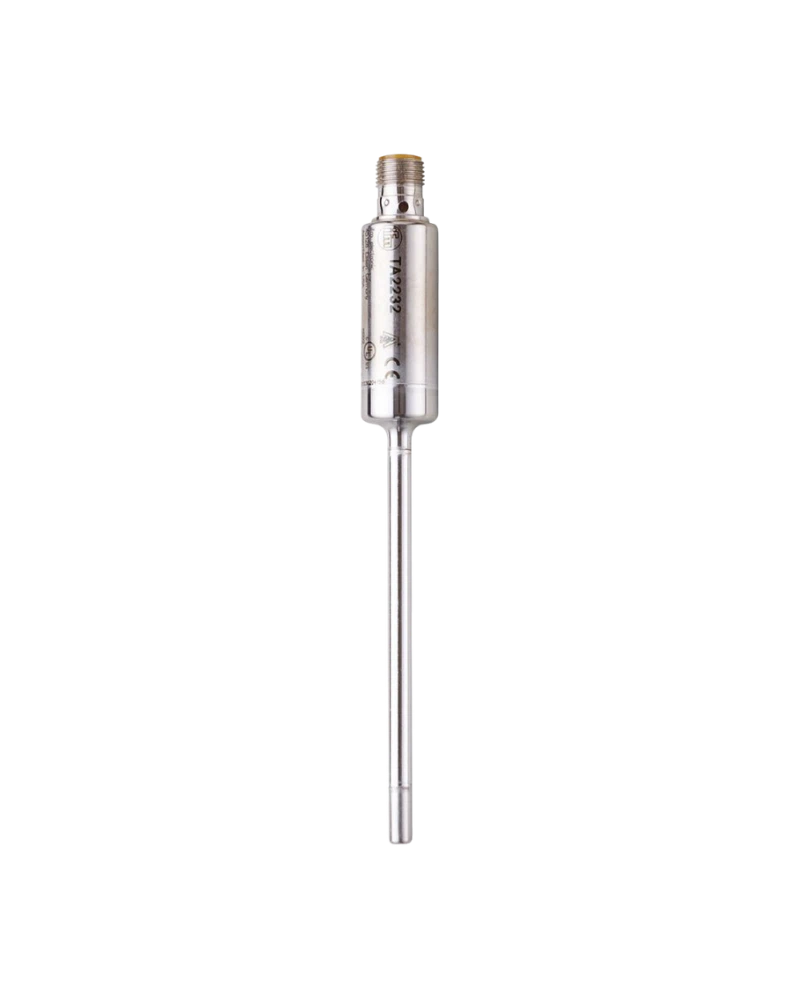

TA2232 is a 100 mm temperature transmitter designed for deeper process temperature measurement. It uses a Pt1000 Class A sensing element with a −50…200 °C measuring range. The transmitter provides a scalable 4–20 mA output and IO-Link communication. Its Ø6 mm probe and clamp-adapter connection provide flexible installation. TA2232 is suitable for industrial process equipment, tanks, piping and machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2232 provides reliable temperature measurement where a 100 mm insertion length is required. The Pt1000 element provides accurate temperature sensing across the specified range. Its analogue output allows integration with conventional automation systems. IO-Link supports parameterisation and digital diagnostics. The transmitter is suitable for both liquids and gases.
The sensor detects temperature through the resistance change of its Pt1000 element. Electronics convert the resistance into a calibrated process temperature. The analogue output transmits the temperature as a 4–20 mA signal. IO-Link provides additional digital information. Continuous measurement enables automatic temperature monitoring and control.
TA2232 uses a cylindrical stainless-steel housing and 6 mm probe. The clamp adapter supports flexible process mounting. The sensor has high pressure resistance and vacuum resistance. IP67/IP68/IP69K protection supports demanding industrial installations. Its construction is designed for reliable long-term service.
Pt1000 Class A
−50…200 °C
100 mm installation length
Ø6 mm probe
Clamp adapter
4–20 mA output
IO-Link 1.1
COM2
M12 connector
Stainless steel
160 bar pressure rating
0.04 K resolution
High protection
Fast response
Reverse-polarity protection
Short-circuit protection
Overload protection
PLC integration
Process tanks
Pipelines
Industrial machinery
Pump systems
Compressor systems
Process automation
Plant engineering
Machine monitoring
Temperature control
OEM systems
PLC monitoring
SCADA
Equipment protection
Maintenance
Industrial processing
| Specification | Details |
|---|---|
| Product model | TA2232 |
| Order code | TA-100CLED06--/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Factory setting | 0…200 °C |
| Installation length | 100 mm |
| Probe diameter | 6 mm |
| Process connection | Clamp adapter Ø6 mm |
| Media | Liquids and gases |
| Pressure rating | 160 bar |
| Vacuum resistance | −1000 mbar |
| Output | 4–20 mA |
| Output | Configurable |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05/T09 | <0.5 / <2 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Connection | M12 |
| Housing | Stainless steel |
