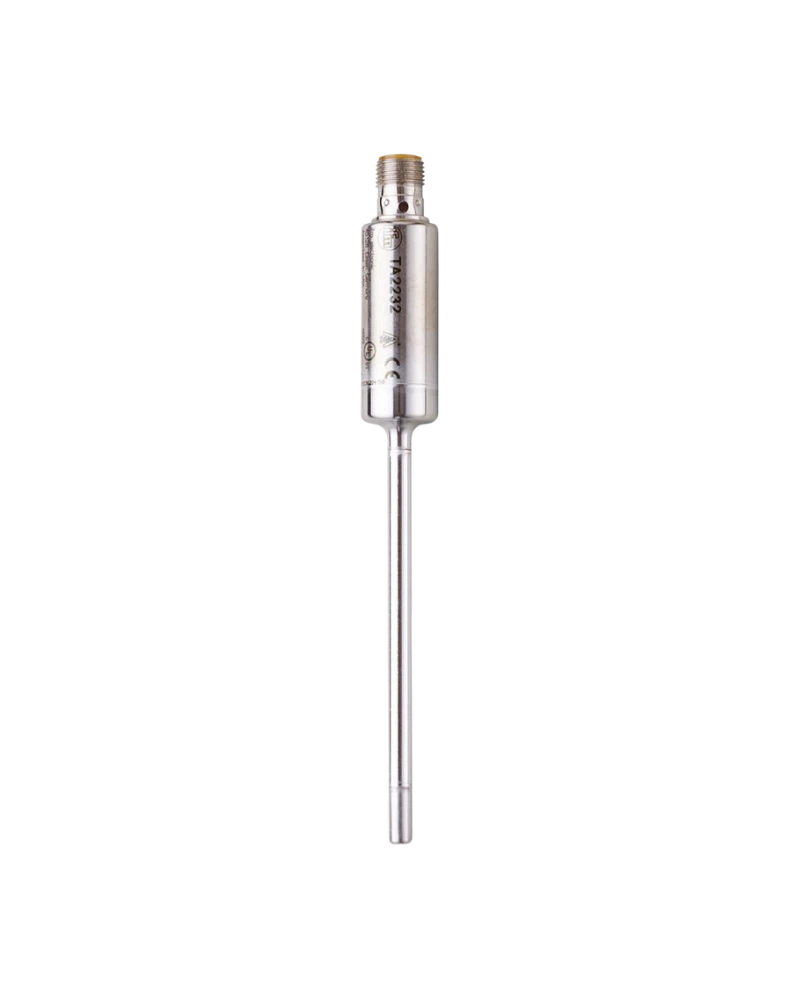

TA2232 is a long-probe temperature transmitter designed for accurate industrial process measurement. It uses a Pt 1000 Class A element according to DIN EN 60751. Its 100 mm installation length allows deeper measurement within tanks, vessels and pipelines. The Ø6 mm clamp connection provides a compact process interface, while the device supports 160 bar pressure resistance. Analogue output and IO-Link communication enable integration into both conventional and digital automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 100 mm probe length provides deeper immersion into process media. The Pt 1000 Class A element supports stable and repeatable measurement. The transmitter can monitor liquids and gases continuously. Its extended probe design is useful where the measurement point is positioned deeper inside a vessel. Digital process data can be transferred through IO-Link.
TA2232 provides pressure resistance up to 160 bar. The Ø6 mm clamp connection supports compact process installation. Stainless-steel construction provides mechanical durability. The transmitter is designed for industrial environments. Correct mounting accessories should be selected according to process pressure and media.
The transmitter provides one configurable analogue output. The 4...20 mA signal supports standard PLC inputs. IO-Link enables parameterisation, diagnostics and digital process-data communication. M12 connectivity simplifies electrical installation. This makes the transmitter suitable for connected industrial automation systems.
Pt 1000 Class A
-50...200 °C
100 mm installation length
Ø6 mm clamp connection
160 bar pressure resistance
4...20 mA output
IO-Link
18...32 V DC
M12 connector
Liquid and gas measurement
Stainless-steel construction
Digital diagnostics
Process monitoring
PLC integration
Industrial automation
Process vessels
Pipelines
Tanks
Hydraulic systems
Cooling systems
Heating systems
Pumps
Compressors
Liquid monitoring
Gas monitoring
Process control
PLC automation
Temperature alarms
Equipment protection
Industrial IoT
| Specification | Details |
|---|---|
| Product Model | TA2232 |
| Type Code | TA-100CLED06- - /US |
| Measuring Element | Pt 1000 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...200 °C |
| Factory Setting | 0...200 °C |
| Installation Length | 100 mm |
| Probe Length | 100 mm |
| Process Connection | Clamp Ø6 mm |
| Probe Diameter | 6 mm |
| Pressure Rating | 160 bar |
| Vacuum Resistance | -1000 mbar |
| Media | Liquids and gases |
| Analogue Output | 1 |
| Output | 4...20 mA |
| Communication | IO-Link |
| Supply | 18...32 V DC |
| Connector | M12 |
| Current Consumption | <50 mA |
| Protection Class | III |
| Housing | Stainless steel |
| Protection | IP67/IP68/IP69K |
| Pack Quantity | 1 pcs |
