TA2212 is a compact temperature transmitter designed for process temperature measurement with a 50 mm installation length. It uses a Pt1000 Class A element and supports temperatures from −50 to 200 °C. The sensor features a Ø6 mm clamp-adapter process interface and a scalable 4–20 mA output. IO-Link enables digital parameterisation and process-data communication. Its robust construction supports industrial applications involving liquids and gases.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2212 is suitable for applications where a compact probe needs to be inserted into a process through a clamp adapter. Its 50 mm installation length provides useful sensing depth for machinery and process systems. The Pt1000 element delivers accurate temperature measurement. The analogue output can be connected to standard PLC inputs. IO-Link adds convenient configuration and diagnostics.
The Pt1000 element changes resistance as temperature changes. Internal electronics evaluate the resistance and generate a proportional temperature signal. The 4–20 mA output provides continuous process information. IO-Link provides digital access to parameters and measured values. The system is suitable for continuous temperature control.

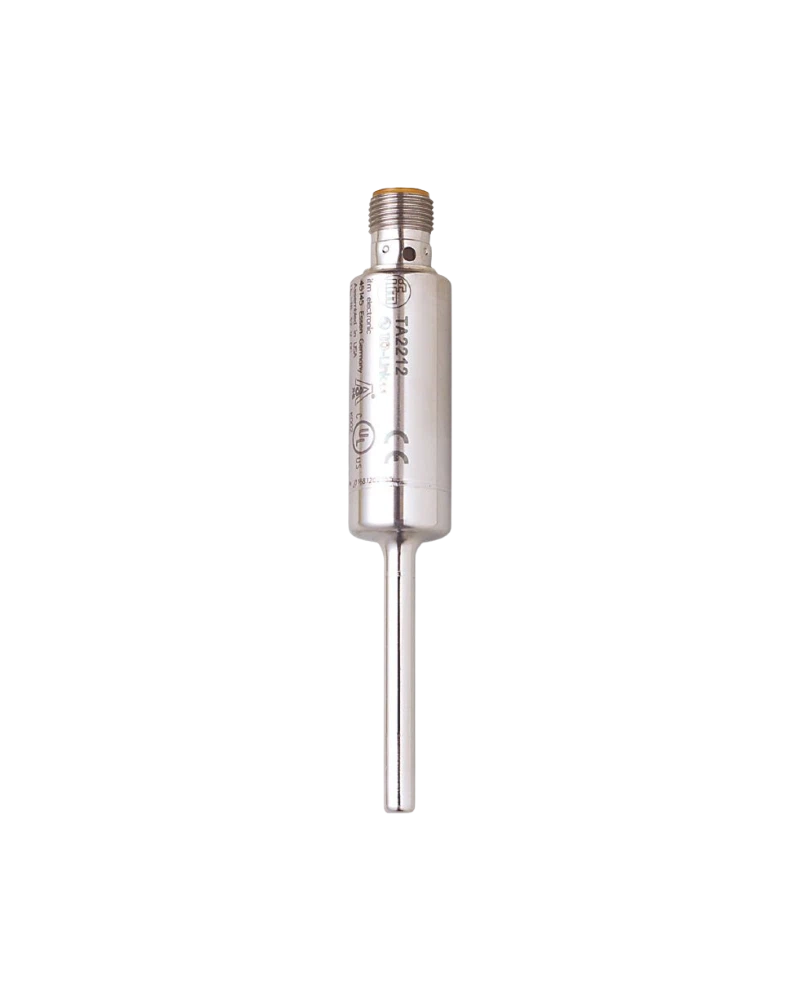

TA2212 has a stainless-steel cylindrical housing and 6 mm probe. The clamp adapter provides flexible process installation. The sensor is designed for liquids and gases. Its high protection rating supports demanding industrial installations. Mechanical resistance allows use in machinery and process equipment.
Pt1000 Class A
−50…200 °C range
50 mm installation length
Ø6 mm probe
Clamp adapter connection
4–20 mA output
IO-Link
COM2 communication
M12 connector
Stainless steel
160 bar pressure rating
−1000 mbar vacuum resistance
0.04 K resolution
Fast response
IP67/IP68/IP69K
Reverse polarity protection
Overload protection
PLC integration
Process piping
Industrial tanks
Machine temperature monitoring
Pump systems
Compressor systems
Hydraulic systems
Process control
Plant engineering
OEM equipment
Temperature alarms
PLC automation
SCADA monitoring
Equipment protection
Maintenance
Industrial process monitoring
| Specification | Details |
|---|---|
| Product model | TA2212 |
| Order code | TA-050CLED06--/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Factory setting | 0…200 °C |
| Installation length | 50 mm |
| Probe diameter | 6 mm |
| Process connection | Clamp adapter Ø6 mm |
| Media | Liquids and gases |
| Pressure rating | 160 bar |
| Vacuum resistance | −1000 mbar |
| Output | 4–20 mA |
| Output configuration | Scalable |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05/T09 | <0.5 / <2 s |
| Ambient temperature | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Electrical connection | M12 |
| Housing | Stainless steel |
