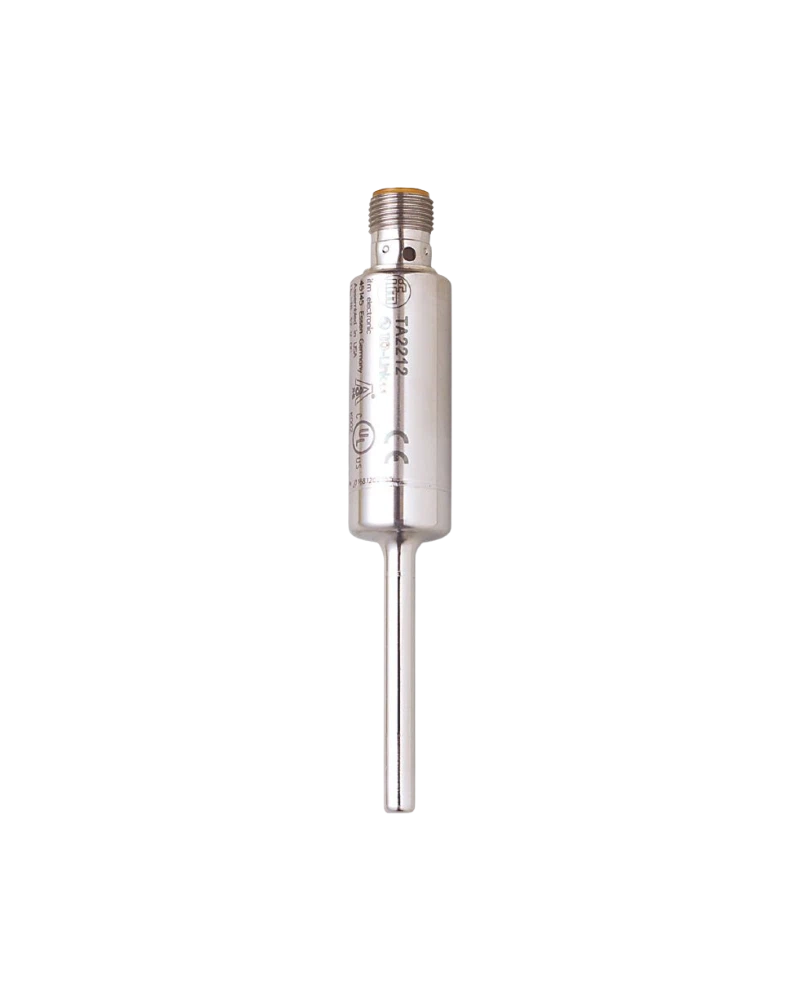

TA2212 is a compact industrial temperature transmitter designed for process measurement in liquids and gases. It uses a Pt 1000 Class A sensing element and provides a -50...200 °C measuring range. The 50 mm installation length provides suitable process immersion for many applications. Its Ø6 mm clamp-style process connection supports flexible mechanical installation. The transmitter combines analogue 4...20 mA output with IO-Link communication for conventional and digital automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The Pt 1000 Class A element provides accurate and repeatable temperature measurement. The -50...200 °C range supports many industrial heating and cooling applications. The sensing design is suitable for both liquids and gases. Digital communication allows process data to be accessed remotely. This makes TA2212 suitable for continuous process monitoring.
The Ø6 mm clamp-style connection provides practical installation into compatible process systems. Its 50 mm installation length allows sufficient insertion into the medium. The compact probe design supports space-efficient installation. Stainless-steel construction provides mechanical durability. The process interface should be matched with the correct fitting and seal.
The transmitter provides a configurable 4...20 mA analogue output. IO-Link enables digital configuration and diagnostics. M12 electrical connectivity supports industrial wiring. The device can be integrated with PLC and SCADA systems. Its combination of analogue and digital communication supports flexible automation.
Pt 1000 Class A
-50...200 °C range
50 mm installation length
Ø6 mm clamp connection
4...20 mA output
IO-Link
M12 connector
18...32 V DC
Liquid and gas measurement
Compact design
Process monitoring
Digital diagnostics
PLC integration
Industrial construction
Temperature control
Process pipelines
Tanks
Cooling systems
Heating systems
Industrial machinery
Pumps
Compressors
Liquid monitoring
Gas monitoring
Process automation
PLC systems
Machine protection
Temperature control
Equipment diagnostics
Industrial IoT
| Specification | Details |
|---|---|
| Product Model | TA2212 |
| Type Code | TA-050CLED06- - /US |
| Product Type | Temperature transmitter |
| Measuring Element | Pt 1000 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...200 °C |
| Factory Setting | 0...200 °C |
| Installation Length | 50 mm |
| Process Connection | Clamp adapter Ø6 mm |
| Probe Diameter | 6 mm |
| Probe Length | 50 mm |
| Media | Liquids and gases |
| Analogue Output | 1 |
| Output | 4...20 mA |
| Communication | IO-Link |
| Connector | M12 |
| Supply | 18...32 V DC |
| Current Consumption | <50 mA |
| Protection Class | III |
| Housing | Stainless steel |
| Protection | IP67/IP68/IP69K |
| Application | Industrial temperature |
| Pack Quantity | 1 pcs |
