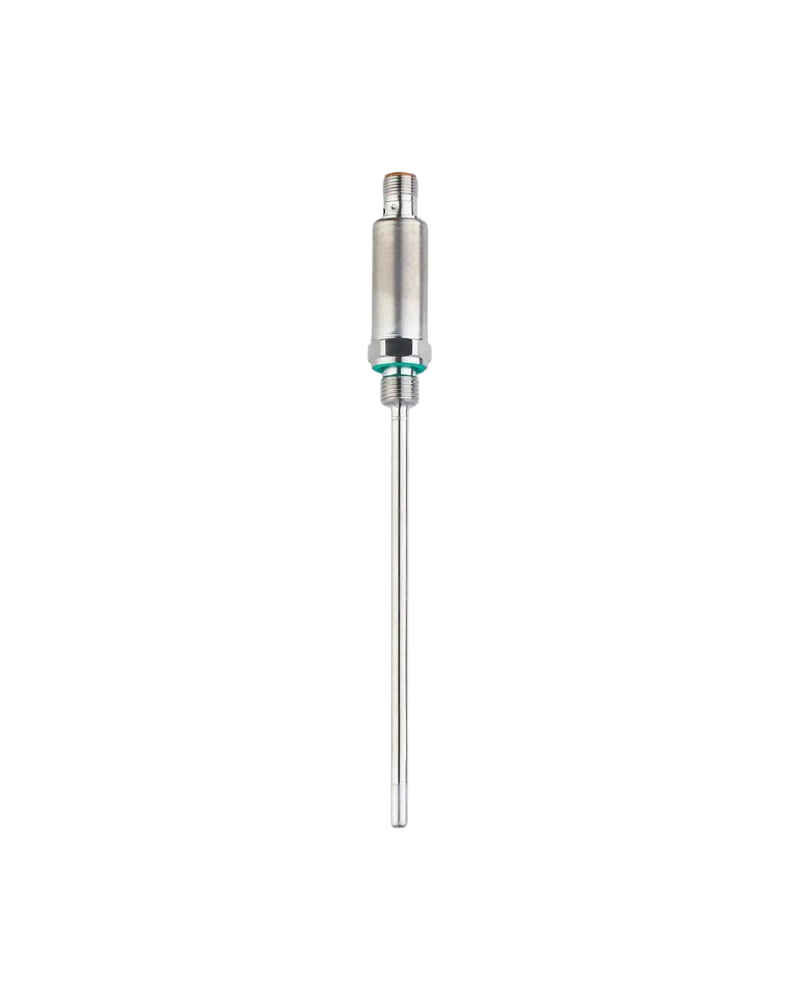

TA2145 is a long-probe industrial temperature transmitter designed for process applications requiring 150 mm installation depth. It uses a Pt1000 Class A sensing element for accurate temperature measurement. The transmitter provides a scalable 4–20 mA output and IO-Link communication. Its G 1/4 process connection and 6 mm probe support secure process installation. The robust stainless-steel housing makes it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2145 provides reliable temperature measurement for deeper process vessels, pipelines and machinery. Its 150 mm installation length allows the sensing element to reach further into the measured medium. The Pt1000 Class A element provides repeatable temperature measurement. The analogue output supports standard industrial control systems. IO-Link provides digital configuration and process diagnostics.
The Pt1000 element measures temperature through changes in electrical resistance. The electronics convert this resistance into a calibrated temperature value. The analogue signal represents the measured temperature across the configured range. IO-Link provides digital process information and parameter access. Continuous measurement supports automated process control.
TA2145 uses stainless steel for its primary mechanical construction and wetted parts. The 6 mm probe provides a balance between mechanical strength and insertion depth. The G 1/4 external process connection allows secure installation. High IP protection supports industrial environments with moisture and cleaning exposure. Shock and vibration resistance support reliable machine operation.
Pt1000 Class A
−50…150 °C
150 mm installation length
G 1/4 process connection
4–20 mA output
IO-Link 1.1
COM2 interface
M12 connector
6 mm probe
Stainless-steel housing
Gold-plated contacts
0.04 K resolution
±0.3 K + ±0.1% MS accuracy
1 / 3 s T05/T09 response
IP67/IP68/IP69K
50 g shock resistance
20 g vibration resistance
PLC integration
Process vessels
Industrial tanks
Pipeline monitoring
Plant engineering
Machine automation
Pump systems
Compressor systems
Hydraulic equipment
Temperature control
Process monitoring
OEM machinery
PLC systems
SCADA systems
Equipment protection
Industrial maintenance
| Specification | Details |
|---|---|
| Product model | TA2145 |
| Order code | TA-150CLER14-A-ZVG/US |
| Product type | Temperature transmitter |
| Sensor | Pt1000 Class A |
| Measuring range | −50…150 °C |
| Factory setting | −50…150 °C |
| Installation length | 150 mm |
| Probe diameter | 6 mm |
| Process connection | G 1/4 external |
| Output | 4–20 mA |
| Output type | Scalable |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission | COM2 |
| Baud rate | 38.4 kBaud |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05/T09 | 1 / 3 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Housing | Stainless steel |
| Electrical connection | M12 |
