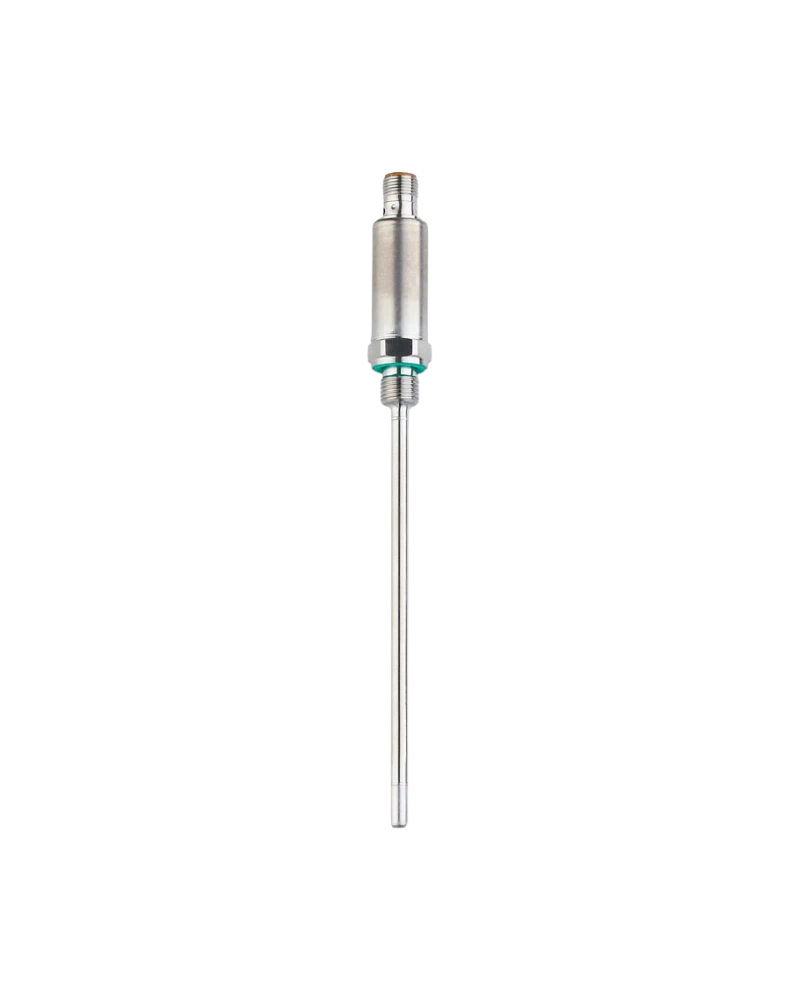

TA2145 is a long-probe temperature transmitter designed for accurate measurement in demanding industrial processes. It uses a Pt 1000 Class A element according to DIN EN 60751. The 150 mm installation length provides deep immersion into tanks, vessels and process pipelines. It supports a -50...150 °C measuring range and 300 bar pressure resistance. The G 1/4 external thread, M12 connector, analogue output and IO-Link communication provide flexible process integration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 150 mm installation length allows the sensing element to reach deeper into the process medium. The Pt 1000 Class A element provides accurate and repeatable temperature measurement. The analogue output offers 0.04 K resolution. Precision is specified as ±0.3 K + ±0.1% of the measuring span. T05/T09 dynamic response is approximately 1/3 seconds.
The G 1/4 external thread provides secure process installation. The 300 bar pressure resistance supports high-pressure process environments. The 6 mm probe provides a slim sensing profile. Stainless-steel construction provides durability. The transmitter is suitable for liquids and gases.
TA2145 provides a configurable 4...20 mA analogue signal. IO-Link enables digital process-data communication and parameterisation. The M12 connector supports reliable industrial wiring. The device is suitable for PLC-based process control. Digital diagnostics can support maintenance and process optimisation.
Pt 1000 Class A
-50...150 °C
150 mm installation length
G 1/4 external thread
6 mm probe
300 bar pressure resistance
4...20 mA output
IO-Link
0.04 K resolution
T05/T09 1/3 s
M12 connector
Stainless-steel housing
IP67/IP68/IP69K
Digital diagnostics
Industrial process design
Process vessels
Storage tanks
Pipelines
Hydraulic systems
High-pressure equipment
Cooling systems
Heating systems
Chemical equipment
Liquid monitoring
Gas monitoring
Process automation
PLC control
Equipment protection
Temperature control
Industrial maintenance
| Specification | Details |
|---|---|
| Product Model | TA2145 |
| Type Code | TA-150CLER14-A-ZVG/US |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...150 °C |
| Factory Setting | -50...150 °C |
| Installation Length | 150 mm |
| Probe Diameter | 6 mm |
| Process Connection | G 1/4 external |
| Pressure Rating | 300 bar |
| Media | Liquids and gases |
| Analogue Output | 1 |
| Output | 4...20 mA |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| T05 | 1 s |
| T09 | 3 s |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Connector | M12 |
| Supply Voltage | 18...32 V DC |
| Housing | Stainless steel |
| Protection | IP67/IP68/IP69K |
| Pack Quantity | 1 pcs |
