TA2135 is an industrial temperature transmitter with a 100 mm installation length for reliable process temperature measurement. It uses a Pt1000 Class A element to provide stable and accurate temperature sensing. The transmitter supports a −50…150 °C measuring range with a scalable 4–20 mA output. IO-Link provides digital configuration, diagnostics and process-data communication. Its stainless-steel construction makes it suitable for industrial machinery, process equipment and plant automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2135 is designed for applications requiring deeper temperature measurement than compact 25 or 50 mm transmitters. The 100 mm sensing length provides better penetration into tanks and process equipment. Its Pt1000 Class A element provides accurate temperature detection. The analogue output enables straightforward PLC integration. IO-Link adds digital parameterisation and diagnostics for connected automation systems.
Temperature changes alter the resistance of the Pt1000 sensing element. The integrated electronics measure this resistance and calculate the process temperature. The calculated temperature is transmitted through the 4–20 mA output. IO-Link provides an additional digital communication channel. This enables continuous temperature monitoring and process control.

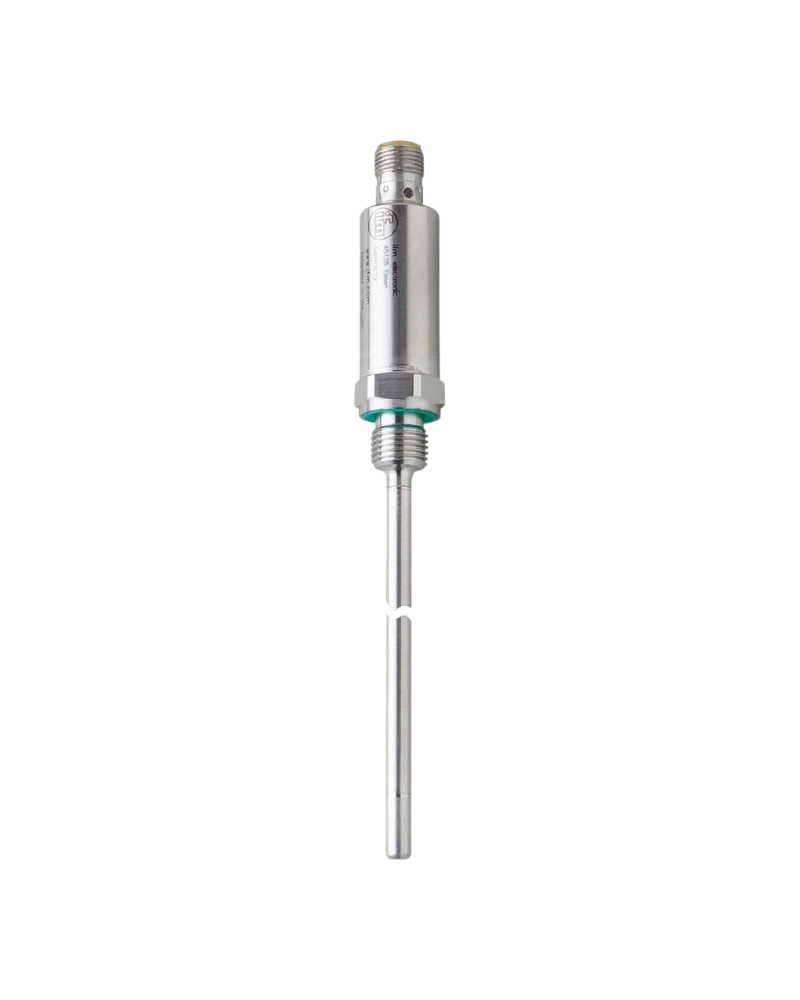

The transmitter uses a robust cylindrical stainless-steel housing. Its 6 mm probe provides mechanical strength while maintaining compact dimensions. The G 1/4 process connection supports common industrial installations. IP67/IP68/IP69K protection provides resistance against dust, water and washdown conditions. The device is designed for long-term industrial operation.
Pt1000 Class A sensor
−50…150 °C range
100 mm installation length
G 1/4 process connection
4–20 mA output
IO-Link 1.1
COM2 communication
M12 connector
Stainless-steel housing
6 mm probe diameter
0.04 K analogue resolution
Fast response
High protection rating
Shock resistance
Vibration resistance
PLC compatible
Digital diagnostics
Scalable output
Process temperature measurement
Industrial machinery
Plant automation
Pump systems
Compressor systems
Hydraulic equipment
Machine tools
Process tanks
Process piping
OEM equipment
PLC control
SCADA monitoring
Temperature alarms
Equipment protection
Preventive maintenance
| Specification | Details |
|---|---|
| Product model | TA2135 |
| Order code | TA-100CLER14-A-ZVG/US |
| Product type | Temperature transmitter |
| Sensor | Pt1000 Class A |
| Measuring range | −50…150 °C |
| Factory setting | −50…150 °C |
| Installation length | 100 mm |
| Probe diameter | 6 mm |
| Process connection | G 1/4 external |
| Output | 4–20 mA |
| Output configuration | Scalable |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission mode | COM2 |
| Baud rate | 38.4 kBaud |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| T05/T09 | 1 / 3 s |
| Ambient temperature | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Housing | Stainless steel |
| Electrical connection | M12 |
