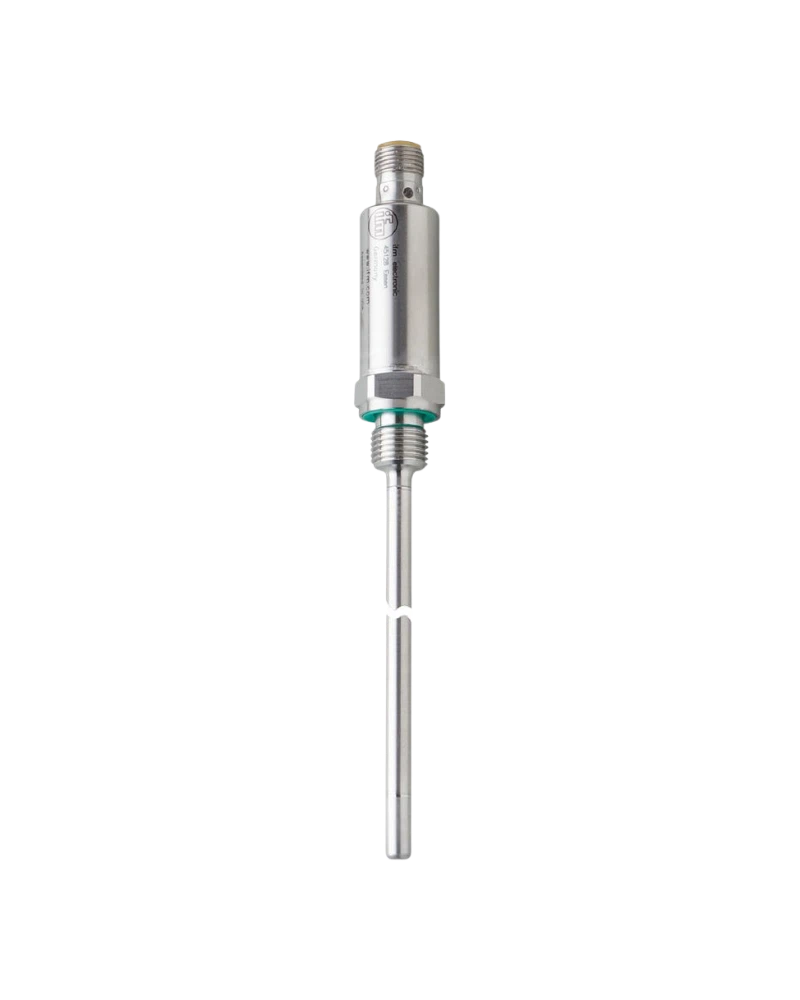

TA2135 is a long-probe industrial temperature transmitter designed for process-temperature measurement. It uses a Pt 1000 Class A element and provides a -50...150 °C measuring range. Its 100 mm installation length allows deeper insertion into process vessels and pipelines. The G 1/4 external thread and 300 bar pressure resistance support demanding process installations. Analogue output and IO-Link communication provide flexible integration into industrial automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The Pt 1000 Class A element provides accurate and repeatable process-temperature measurement. The transmitter supports a broad range for many industrial processes. Analogue output resolution is 0.04 K. Precision is specified as ±0.3 K + ±0.1% of the measuring span. The dynamic response is approximately 1/3 seconds for T05/T09.
The 100 mm installation length provides deeper measurement in process media. The G 1/4 external thread supports secure process installation. The 6 mm probe provides a slim measurement profile. Stainless-steel construction provides mechanical durability. The transmitter is suitable for liquid and gas measurement.
The 4...20 mA output allows integration into standard PLC systems. IO-Link communication enables digital parameterisation and diagnostics. The M12 connector simplifies electrical installation. Short-circuit and overload protection improve operational reliability. The transmitter can be used in conventional and connected automation architectures.
Pt 1000 Class A
-50...150 °C range
100 mm installation length
G 1/4 external thread
6 mm probe
300 bar pressure resistance
4...20 mA output
IO-Link
0.04 K resolution
T05/T09 1/3 s
M12 connector
IP67/IP68/IP69K
Stainless-steel construction
50 g shock resistance
20 g vibration resistance
Process vessels
Pipelines
Hydraulic equipment
Industrial machinery
Pumps
Compressors
Heating systems
Cooling systems
Liquid monitoring
Gas monitoring
PLC automation
Process control
Temperature alarms
Machine protection
Industrial IoT
| Specification | Details |
|---|---|
| Product Model | TA2135 |
| Type Code | TA-100CLER14-A-ZVG/US |
| Measuring Element | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...150 °C |
| Factory Setting | -50...150 °C |
| Installation Length | 100 mm |
| Probe Diameter | 6 mm |
| Process Connection | G 1/4 external |
| Pressure Rating | 300 bar |
| Media | Liquids and gases |
| Analogue Output | 1 |
| Output | 4...20 mA |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| T05 | 1 s |
| T09 | 3 s |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Supply | 18...32 V DC |
| Connector | M12 |
| Housing Material | Stainless steel |
| Protection | IP67/IP68/IP69K |
| Pack Quantity | 1 pcs |
