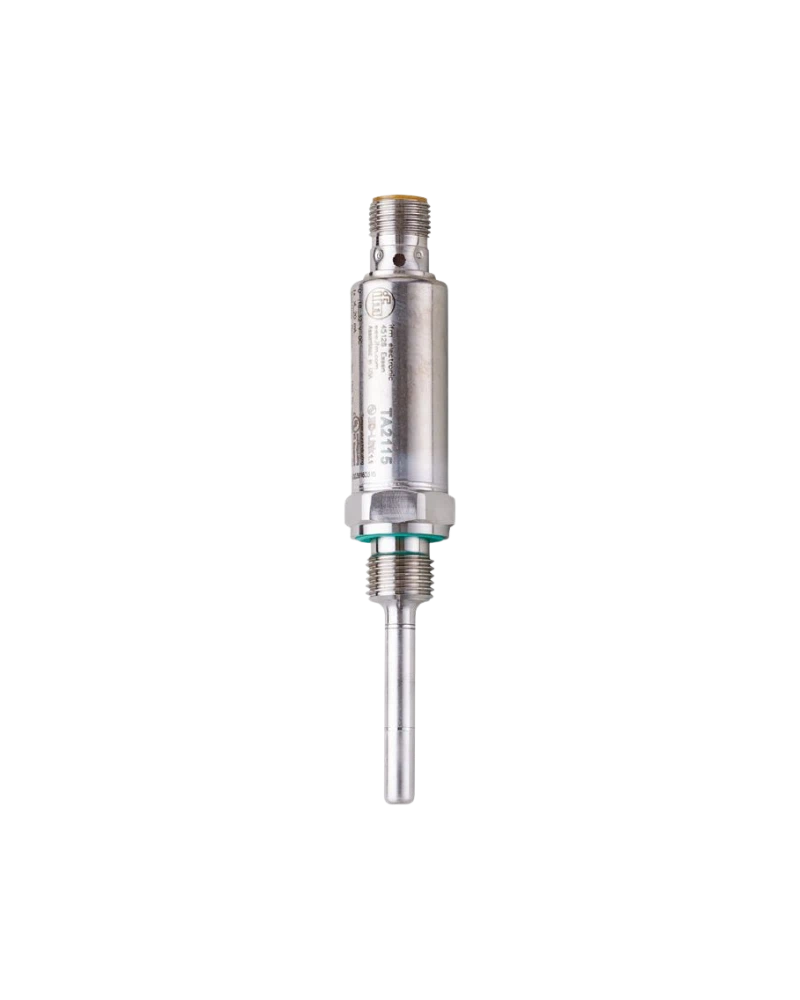

TA2115 is a compact industrial temperature transmitter designed for accurate and reliable process temperature measurement. It uses a Pt1000 Class A measuring element for stable and precise temperature sensing. The transmitter provides a scalable 4–20 mA analogue output and IO-Link communication for automation integration. Its 50 mm installation length and G 1/4 process connection support flexible machine installation. The stainless-steel housing provides durability for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2115 converts process temperature into a reliable electrical signal for industrial automation systems. The Pt1000 Class A element provides accurate measurement across the complete specified temperature range. Its 50 mm probe length makes it suitable for medium-depth temperature measurement. The 4–20 mA output can be connected directly to PLC and process-control systems. IO-Link provides additional configuration, diagnostics and digital process-data access.
The Pt1000 sensing element changes resistance according to the measured temperature. Internal electronics evaluate the resistance and calculate the corresponding temperature value. The transmitter converts the measurement into a proportional 4–20 mA output signal. IO-Link enables digital communication between the sensor and automation controller. The system provides continuous temperature monitoring for industrial processes.
TA2115 features a cylindrical stainless-steel housing designed for industrial environments. The wetted components use stainless steel and suitable sealing materials. The M12 electrical connector provides a secure industrial connection. High IP67, IP68 and IP69K protection supports demanding installation conditions. Shock and vibration resistance make the transmitter suitable for machine and process applications.
Pt1000 Class A measuring element
−50…150 °C measuring range
50 mm installation length
G 1/4 process connection
4–20 mA scalable output
IO-Link communication
COM2 communication mode
M12 electrical connection
Stainless-steel housing
Gold-plated contacts
Fast temperature response
High protection rating
Reverse-polarity protection
Short-circuit protection
Overload protection
Industrial automation compatibility
PLC integration
Continuous temperature monitoring
Industrial machinery
Process equipment
Hydraulic systems
Pneumatic machinery
Pump systems
Compressor systems
Machine temperature monitoring
Process temperature control
Plant engineering
OEM equipment
Industrial automation
PLC monitoring
SCADA systems
Equipment protection
Preventive maintenance
| Specification | Details |
|---|---|
| Product model | TA2115 |
| Order code | TA-050CLER14-A-ZVG/US |
| Product type | Temperature transmitter |
| Measuring element | 1 × Pt1000 Class A |
| Measuring range | −50…150 °C |
| Factory setting | −50…150 °C |
| Installation length | 50 mm |
| Probe diameter | 6 mm |
| Process connection | G 1/4 external thread |
| Output | 4–20 mA |
| Output type | Scalable analogue |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission | COM2, 38.4 kBaud |
| Supply voltage | 18–32 V DC |
| Current consumption | <50 mA |
| Analogue resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05/T09 | 1 / 3 s |
| Ambient temperature | −25…80 °C |
| Storage temperature | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Housing material | Stainless steel 316L |
| Electrical connection | M12 |
| Application | Industrial temperature measurement |
