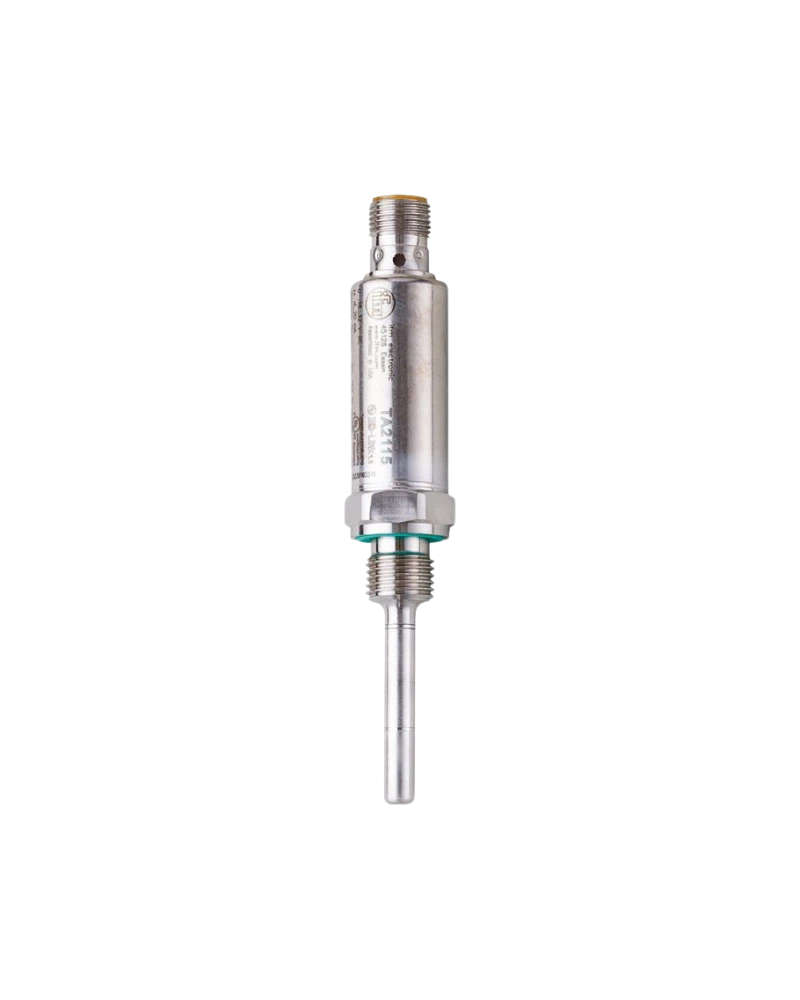

TA2115 is an extended industrial temperature transmitter designed for reliable temperature monitoring in process systems. It uses a Pt 1000 Class A sensing element and supports a -50...150 °C measuring range. Its 50 mm installation length provides deeper process immersion than compact variants. The G 1/4 external thread provides a practical process connection with a pressure rating of up to 400 bar. Analogue 4...20 mA output and IO-Link communication support conventional and digital automation architectures.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The Pt 1000 Class A element provides stable and accurate temperature measurement. The 0.04 K analogue output resolution supports precise process-data representation. The transmitter is suitable for continuous temperature monitoring. IO-Link allows additional digital process information and parameter access. Its response characteristics are suitable for many industrial control applications.
The 50 mm installation length provides deeper immersion into the process medium. The G 1/4 external thread provides secure mechanical installation. The specified pressure resistance reaches 400 bar. Stainless-steel construction supports demanding process environments. The 6 mm probe provides a compact sensing profile.
The transmitter provides a configurable analogue output and IO-Link communication. The 4...20 mA signal supports standard PLC systems. IO-Link enables digital configuration and diagnostics. The M12 connector provides practical industrial wiring. This makes TA2115 suitable for both existing and smart-factory automation architectures.
Pt 1000 Class A
-50...150 °C range
50 mm installation length
G 1/4 external thread
6 mm probe
400 bar pressure resistance
4...20 mA output
IO-Link
0.04 K resolution
M12 connector
Stainless-steel housing
Industrial design
Liquid and gas measurement
Digital diagnostics
PLC integration
Hydraulic systems
High-pressure pipelines
Process equipment
Industrial machinery
Pumps
Compressors
Cooling systems
Heating systems
Liquid monitoring
Gas monitoring
Process automation
Machine protection
Temperature control
Industrial IoT
Equipment diagnostics
| Specification | Details |
|---|---|
| Product Model | TA2115 |
| Type Code | TA-050CLER14-A-ZVG/US |
| Measuring Element | Pt 1000 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...150 °C |
| Factory Setting | -50...150 °C |
| Installation Length | 50 mm |
| Probe Diameter | 6 mm |
| Process Connection | G 1/4 external |
| Pressure Rating | 400 bar |
| Media | Liquids and gases |
| Analogue Output | 1 |
| Output Signal | 4...20 mA |
| Resolution | 0.04 K |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Connector | M12 |
| Supply Voltage | 18...32 V DC |
| Protection Class | III |
| Housing | Stainless steel |
| Protection | IP67/IP68/IP69K |
| Installation | Process mounted |
| Pack Quantity | 1 pcs |
