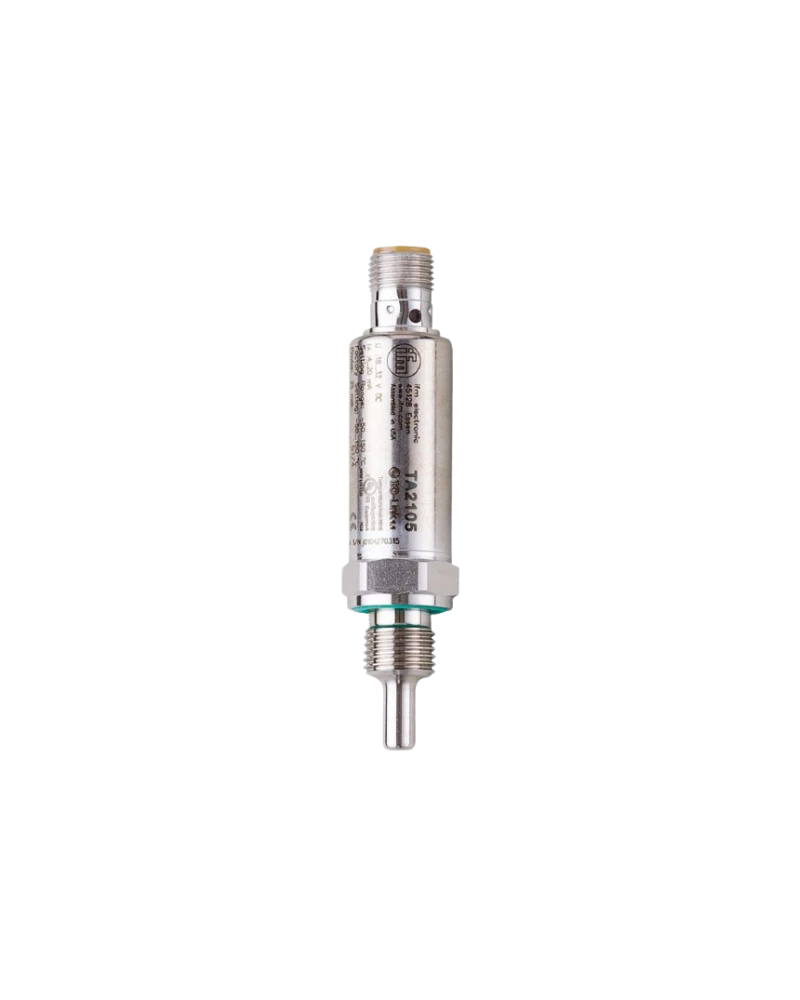

TA2105 is a compact industrial temperature transmitter designed for accurate and fast process-temperature measurement. It uses a Pt1000 Class A sensing element and provides a −50…150 °C measuring range. The transmitter features a G 1/4 process connection and a 25 mm installation length. Its 4–20 mA output and IO-Link communication provide flexible automation integration. The stainless-steel construction supports industrial machinery, HVAC, refrigeration and process applications. TA2105 provides fast response, high pressure resistance and reliable long-term temperature measurement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2105 is designed for general industrial temperature measurement where fast response and mechanical stability are important. Its 25 mm sensing length provides a compact installation. The Pt1000 Class A element supports accurate temperature measurement. The 4–20 mA output can be connected to PLC and process controllers. IO-Link provides digital parameterisation and diagnostics. The sensor is suitable for machinery, plant engineering, refrigeration and HVAC systems.
The Pt1000 element changes resistance according to the process temperature. Internal electronics evaluate the resistance and convert it into a temperature value. The transmitter provides the result through a 4–20 mA output. IO-Link provides digital process data and configuration. Fast sensing characteristics support dynamic temperature control. The device continuously monitors process temperature.
TA2105 supports a −50…150 °C measuring range. Its pressure resistance is specified up to 400 bar for the sensor under the stated mounting conditions. Dynamic response is approximately T05/T09 = 1/3 seconds. The stainless-steel housing provides mechanical durability. IP67/IP68/IP69K protection supports demanding industrial environments. The sensor is suitable for continuous machine and process operation.
Pt1000 Class A
−50…150 °C
25 mm installation length
4–20 mA
IO-Link 1.1
G 1/4 process connection
M12 electrical connection
Up to 400 bar pressure resistance
Fast response
T05/T09 1/3 s
Stainless-steel construction
IP67/IP68/IP69K
Gold-plated contacts
Compact design
Industrial automation integration
Machine temperature monitoring
Plant engineering
Hydraulic machinery
Refrigeration systems
HVAC equipment
Pumps
Compressors
Process machinery
Industrial automation
Temperature control
PLC systems
SCADA systems
OEM machinery
Process monitoring
Equipment protection
| Specification | Details |
|---|---|
| Product model | TA2105 |
| Order code | TA-025CLER14-A-ZVG/US |
| Product type | Industrial temperature transmitter |
| Measuring element | Pt1000 Class A |
| Measuring range | −50…150 °C |
| Factory setting | −50…150 °C |
| Installation length | 25 mm |
| Probe diameter | 6 mm |
| Process connection | G 1/4 |
| Output | 4–20 mA |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Communication speed | COM2, 38.4 kBaud |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Accuracy | ±0.3 K + ±0.1% MS |
| Analogue resolution | 0.04 K |
| Response T05 | 1 s |
| Response T09 | 3 s |
| Pressure resistance | Up to 400 bar |
| Medium | Liquids and gases |
| Electrical connection | M12 |
| Contacts | Gold-plated |
| Housing | Stainless steel |
| Protection | IP67/IP68/IP69K |
| Application | Industrial temperature measurement |
| Installation | Machinery/process |
