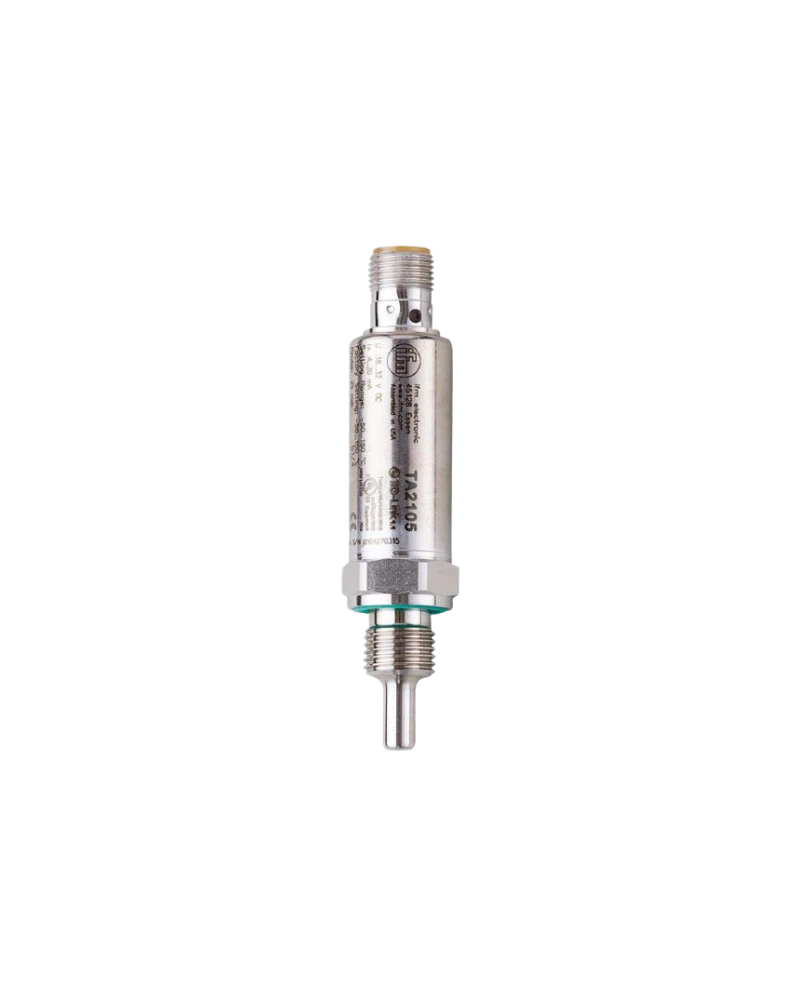

TA2105 is a compact industrial temperature transmitter designed for accurate process-temperature measurement. It uses a Pt 1000 Class A sensing element and supports a -50...150 °C measuring range. The 25 mm installation length and G 1/4 external thread provide compact process installation. The transmitter provides a configurable 4...20 mA analogue output and IO-Link communication. Its stainless-steel construction and IP67/IP68/IP69K protection support demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The Pt 1000 Class A element provides stable and accurate temperature measurement. The specified analogue output resolution is 0.04 K. Analogue output precision is ±0.3 K + ±0.1% of the measuring span. Dynamic response T05/T09 is approximately 1/3 seconds. These characteristics make the transmitter suitable for dynamic temperature-control applications.
The transmitter has a 25 mm installation length and G 1/4 external thread. Its cylindrical stainless-steel housing provides a compact and durable process interface. The 6 mm probe supports practical process insertion. The design is suitable for liquids and gases. Its mechanical construction is intended for industrial automation installations.
IO-Link COM2 communication provides digital configuration and process-data access. The 4...20 mA output allows conventional PLC integration. The device supports 18...32 V DC supply and short-circuit protection. IP67, IP68 and IP69K protection support harsh industrial conditions. M12 connectivity simplifies electrical installation.
Pt 1000 Class A
-50...150 °C measuring range
25 mm installation length
G 1/4 external thread
6 mm probe
4...20 mA output
IO-Link COM2
0.04 K resolution
±0.3 K + ±0.1% MS accuracy
T05/T09 1/3 s
18...32 V DC
M12 connector
IP67/IP68/IP69K
50 g shock resistance
20 g vibration resistance
Industrial machinery
Process pipelines
Cooling systems
Heating systems
Hydraulic systems
Pumps
Compressors
Liquid monitoring
Gas monitoring
PLC temperature control
Process automation
Machine protection
Temperature alarms
Equipment diagnostics
Industrial IoT
| Specification | Details |
|---|---|
| Product Model | TA2105 |
| Type Code | TA-025CLER14-A-ZVG/US |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...150 °C |
| Factory Setting | -50...150 °C |
| Installation Length | 25 mm |
| Probe Diameter | 6 mm |
| Process Connection | G 1/4 external |
| Housing | Cylindrical |
| Housing Diameter | 18.7 mm |
| Media | Liquids and gases |
| Analogue Output | 1 |
| Output | 4...20 mA |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05 | 1 s |
| Response T09 | 3 s |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Supply | 18...32 V DC |
| Protection | IP67/IP68/IP69K |
| Connector | M12 |
| Pack Quantity | 1 pcs |
