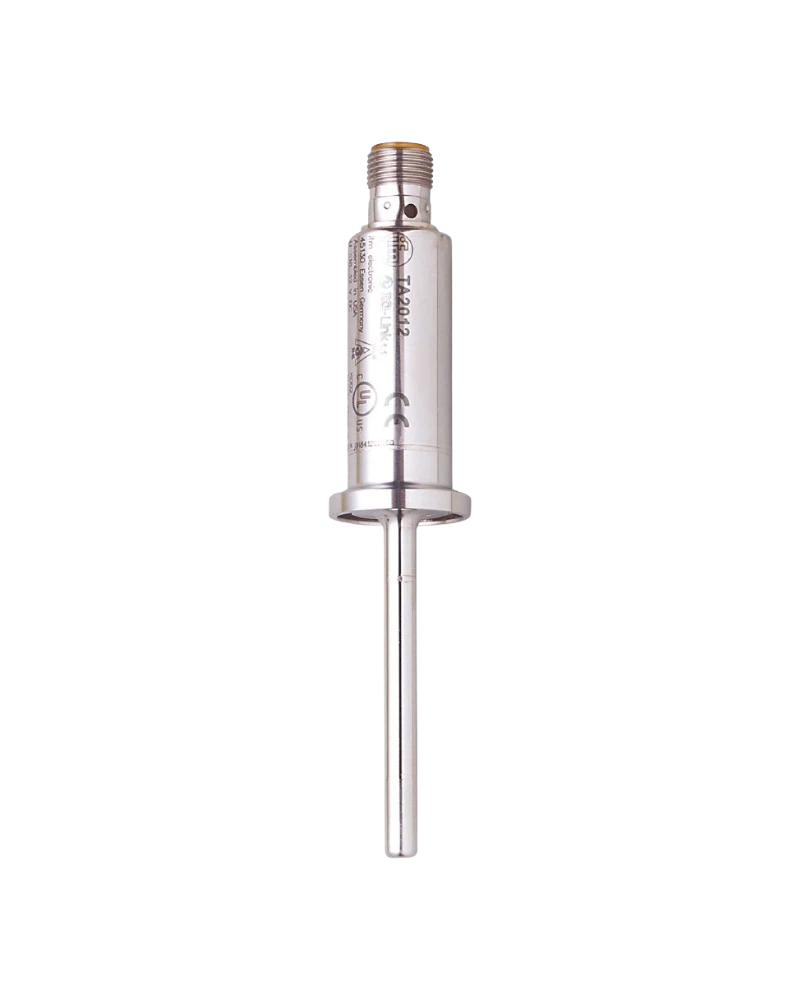

TA2012 is a hygienic temperature transmitter with a 60 mm installation length and clamp process connection. It uses a Pt1000 Class A sensing element for reliable process-temperature measurement. The transmitter supports a −50…200 °C measuring range and 4–20 mA analogue output. IO-Link provides digital configuration, diagnostics and process-data communication. Its stainless-steel hygienic construction is suitable for food, beverage and sanitary production. TA2012 provides deeper sensing than TA2002 while retaining a compact clamp-mounted design.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2012 is designed for hygienic temperature measurement where a 60 mm insertion length is required. The clamp process connection supports clean and serviceable process integration. Its Pt1000 Class A sensor provides stable temperature measurement. The 4–20 mA output supports PLC and process-controller integration. IO-Link enables digital configuration and diagnostics. The transmitter is suitable for continuous operation in food and beverage environments.
60 mm installation length
Pt1000 Class A
−50…200 °C
0…200 °C factory setting
4–20 mA
IO-Link
3/4-inch clamp
Hygienic connection
Stainless steel
Fast response
PLC integration
Digital parameterisation
Process diagnostics
Food-industry suitable
Liquid/gas measurement
Food processing
Dairy plants
Beverage production
Breweries
Tanks
Process vessels
Hygienic piping
Filling machines
CIP/SIP
Temperature control
Process monitoring
Quality control
PLC systems
SCADA
Sanitary automation
| Specification | Details |
|---|---|
| Product model | TA2012 |
| Order code | TA-060CLEC34--/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Factory setting | 0…200 °C |
| Installation length | 60 mm |
| Process connection | 3/4-inch clamp |
| Standard | DIN 32676 / ISO 2852 |
| Output | 4–20 mA |
| Communication | IO-Link |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Accuracy | ±0.3 K + ±0.1% MS |
| Resolution | 0.04 K |
| Pressure rating | Up to 100 bar class |
| Vacuum resistance | −0.1 MPa |
| Medium | Liquids and gases |
| Electrical connection | M12 |
| Housing | Stainless steel |
| Wetted parts | Stainless steel |
| Protection | IP67/IP68/IP69K |
| Response | Fast |
| Parameterisation | IO-Link |
| Application | Hygienic process |
| Installation | Clamp-mounted |
