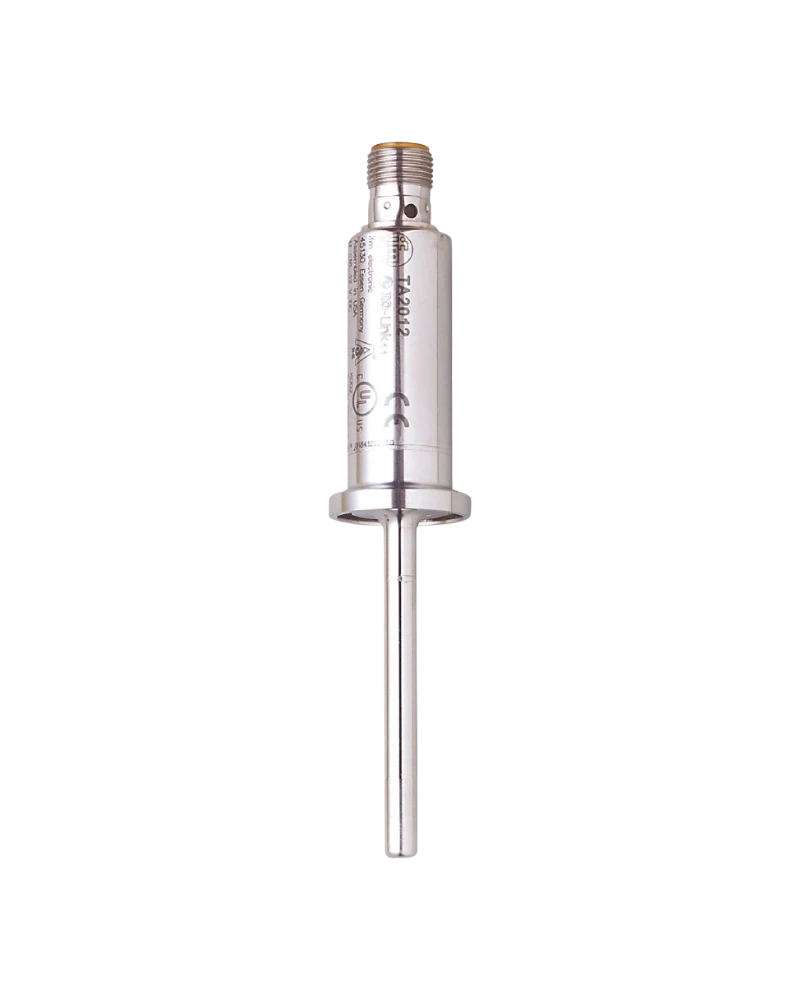

TA2012 is an extended-length hygienic temperature transmitter designed for process measurement in liquids and gases. Its Pt 1000 Class A sensing element provides accurate and stable temperature measurement. The 60 mm installation length allows deeper positioning of the sensing element in process media. The clamp-style process connection supports hygienic installation in suitable piping systems. Analogue and IO-Link communication make the transmitter suitable for modern process automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The transmitter uses a Pt 1000 Class A RTD element for reliable temperature measurement. Its measurement principle provides repeatable process-temperature data. The extended probe length improves access to the process medium. Digital communication enables convenient monitoring and parameterisation. The transmitter is suitable for continuous temperature-control applications.
The clamp process connection provides a practical hygienic mounting arrangement. Its 60 mm installation length allows deeper immersion compared with shorter variants. Stainless-steel construction supports industrial process use. The design is suitable for compatible sanitary fittings. Correct gasket and clamp selection should be based on the process medium.
TA2012 supports analogue process-signal integration and IO-Link communication. The 4...20 mA output can be connected to standard PLC systems. IO-Link provides digital access to process values and device parameters. The M12 connector supports industrial electrical installation. This combination allows integration into both conventional and digital automation systems.
Pt 1000 Class A
DIN EN 60751
-50...200 °C range
60 mm installation length
Clamp process connection
Hygienic construction
4...20 mA output
IO-Link communication
M12 connector
Compact transmitter design
Liquid measurement
Gas measurement
Process diagnostics
PLC integration
Industrial automation
Food processing
Beverage systems
Sanitary piping
Process tanks
Cooling systems
Heating systems
Liquid monitoring
Gas monitoring
Process automation
PLC control
Temperature regulation
Industrial machinery
Hygienic equipment
Process monitoring
Equipment protection
| Specification | Details |
|---|---|
| Product Model | TA2012 |
| Type Code | TA-060CLEC34- - /US |
| Product Type | Temperature transmitter |
| Measuring Element | Pt 1000 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...200 °C |
| Factory Setting | Model-specific |
| Installation Length | 60 mm |
| Process Connection | Clamp |
| Probe Diameter | Model-specific |
| Probe Length | 60 mm |
| Media | Liquids and gases |
| Pressure Rating | Model-specific |
| Vacuum Resistance | Model-specific |
| Analogue Output | 1 |
| Output Signal | 4...20 mA |
| Communication | IO-Link |
| Connector | M12 |
| Supply Voltage | 18...32 V DC |
| Current Consumption | <50 mA |
| Protection Class | III |
| Housing | Stainless steel |
| Protection | IP67/IP68/IP69K |
| Pack Quantity | 1 pcs |
