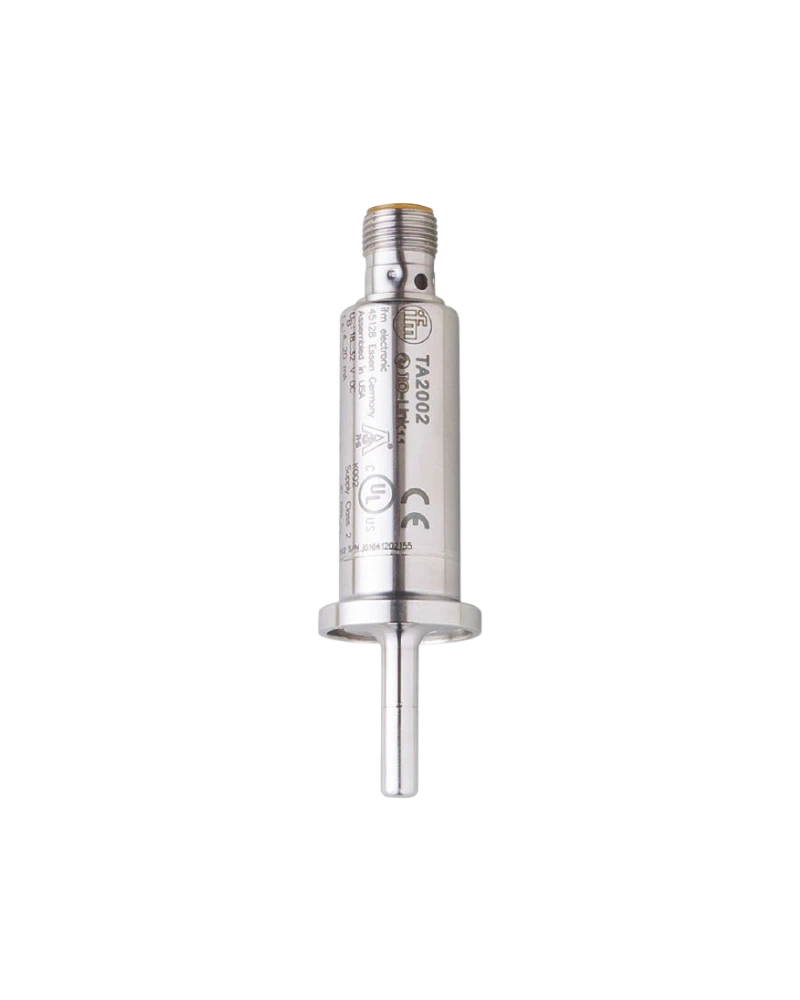

TA2002 is a hygienic temperature transmitter with a 25 mm installation length and 3/4-inch clamp process connection. It uses a Pt1000 Class A measuring element and supports temperatures from −50 to 200 °C. The transmitter provides a 4–20 mA analogue output and IO-Link communication. Its clamp connection supports hygienic installation in food and beverage process equipment. Stainless-steel construction provides durability for demanding process environments. TA2002 is suitable for tanks, pipes, filling systems and sanitary process machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2002 is designed for hygienic temperature measurement in process equipment using a clamp connection. Its 25 mm installation length provides compact temperature sensing. The Pt1000 Class A element provides accurate measurement. The 4–20 mA output enables conventional automation integration. IO-Link adds digital configuration and process-data access. The transmitter is suitable for liquids and gases.
25 mm installation length
Pt1000 Class A
−50…200 °C
0…200 °C factory setting
4–20 mA
IO-Link
3/4-inch clamp connection
DIN 32676 / ISO 2852
Stainless steel
100 bar pressure rating
Fast response
Hygienic construction
PLC integration
Digital diagnostics
Food-industry suitability
Food processing
Beverage production
Dairy systems
Breweries
Process tanks
Hygienic piping
Filling systems
CIP/SIP
Temperature control
Quality monitoring
PLC systems
SCADA
Process automation
Production lines
Sanitary machinery
| Specification | Details |
|---|---|
| Product model | TA2002 |
| Order code | TA-025CLEC34--/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Factory setting | 0…200 °C |
| Installation length | 25 mm |
| Process connection | Clamp DN06…DN08 |
| Standard | DIN 32676 / ISO 2852 |
| Output | 4–20 mA |
| Communication | IO-Link |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Accuracy | ±0.3 K + ±0.1% MS |
| Resolution | 0.04 K |
| Pressure rating | 100 bar |
| Vacuum resistance | −1000 mbar |
| Medium | Liquids and gases |
| Electrical connection | M12 |
| Housing | Stainless steel |
| Wetted material | Stainless steel |
| Protection | IP67/IP68/IP69K |
| Response | Fast |
| Parameterisation | IO-Link |
| Application | Hygienic process |
| Installation | Clamp process system |
| Diagnostics | Yes |
