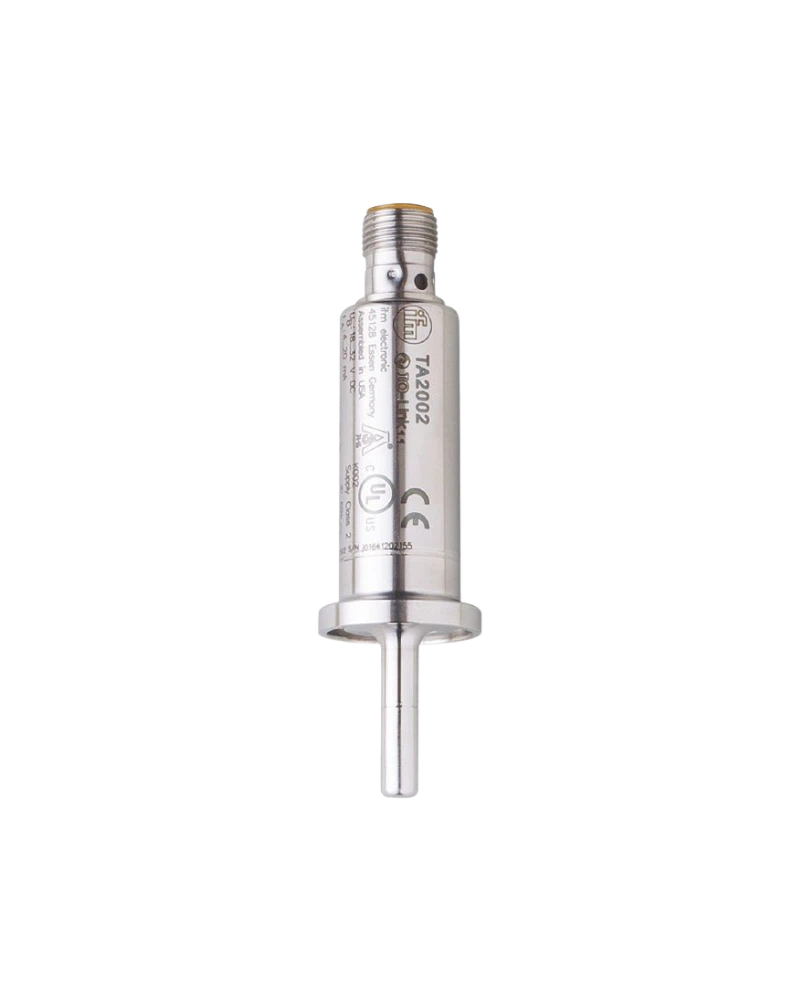

TA2002 is a compact temperature transmitter designed for hygienic process measurement in liquids and gases. It uses a Pt 1000 Class A measuring element according to DIN EN 60751. The transmitter supports a -50...200 °C measuring range and provides configurable 4...20 mA and IO-Link functionality. Its 25 mm installation length and clamp process connection support hygienic installation. The device is designed for reliable integration into industrial and food-processing automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The Pt 1000 Class A sensing element provides accurate and repeatable temperature measurement. It is suitable for continuous monitoring of liquids and gases. The transmitter supports a wide temperature range for common process applications. The hygienic clamp connection simplifies integration into sanitary pipework. The compact construction helps maintain a clean and efficient process installation.
TA2002 uses a clamp connection compatible with DN06 to DN08 and 1/4 to 3/4 inch arrangements according to the specified configuration. The 25 mm installation length provides compact process immersion. The clamp arrangement supports hygienic installation and maintenance. Stainless-steel construction provides mechanical durability. Suitable seals and fittings should be selected according to the process requirements.
The transmitter provides one configurable analogue output and IO-Link communication. The 4...20 mA signal supports standard PLC and control-system integration. IO-Link enables digital parameterisation and process-data access. Short-circuit and overload protection improve operational reliability. The M12 connection supports practical industrial wiring.
Pt 1000 Class A
DIN EN 60751
-50...200 °C range
25 mm installation length
Clamp connection
DN06...DN08 compatibility
1/4...3/4 inch connection range
4...20 mA output
IO-Link
18...32 V DC supply
100 bar pressure resistance
Vacuum resistance
M12 connection
Short-circuit protection
Overload protection
Food processing
Beverage processing
Hygienic pipelines
Process tanks
Liquid temperature monitoring
Cooling systems
Heating systems
Process automation
PLC control
Industrial machinery
CIP-compatible installations
Temperature control
Process monitoring
Equipment protection
Industrial automation
| Specification | Details |
|---|---|
| Product Model | TA2002 |
| Type Code | TA-025CLEC34- - /US |
| Product Type | Temperature transmitter |
| Measuring Element | 1 × Pt 1000 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...200 °C |
| Factory Setting | 0...200 °C |
| Installation Length | 25 mm |
| Process Connection | Clamp |
| Clamp Range | DN06...DN08 |
| Imperial Connection | 1/4...3/4 inch |
| Media | Liquids and gases |
| Pressure Rating | 100 bar |
| Vacuum Resistance | -1000 mbar |
| Analogue Outputs | 1 |
| Output Signal | 4...20 mA |
| Maximum Load | 250/300 Ω |
| Communication | IO-Link |
| Supply Voltage | 18...32 V DC |
| Current Consumption | <50 mA |
| Protection Class | III |
| Electrical Connection | M12 |
| Pack Quantity | 1 pcs |
