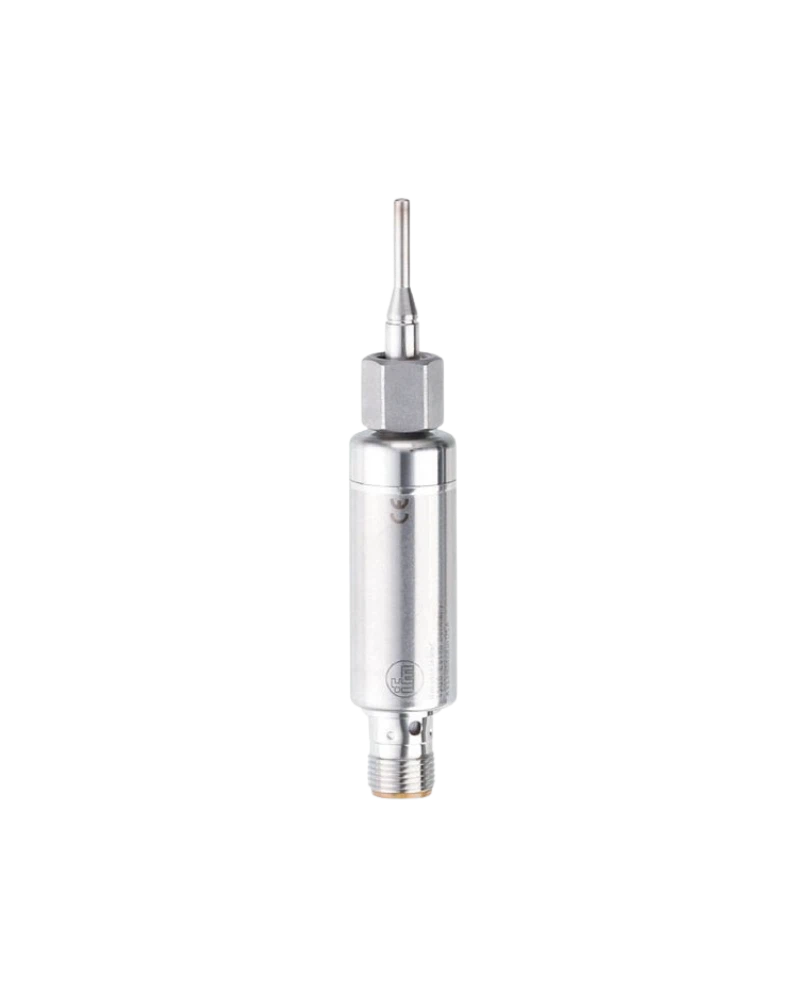

TA1612 is a compact temperature transmitter with a 25 mm installation length. It uses a Pt1000 Class A measuring element for accurate temperature measurement. The transmitter supports −50…200 °C and provides a 0…200 °C factory setting. A 4–20 mA output provides reliable analogue process transmission. IO-Link enables digital parameterisation and process-data communication. TA1612 is suitable for compact hygienic process installations where space and response time are important.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA1612 is designed for compact hygienic temperature measurement. Its 25 mm installation length provides more sensing depth than the shortest miniature transmitters. The Pt1000 Class A element provides accurate and repeatable temperature measurement. The 4–20 mA output integrates with PLC systems. IO-Link provides digital configuration and diagnostics. Its stainless-steel construction supports demanding process environments.
25 mm installation length
Pt1000 Class A
−50…200 °C
0…200 °C factory setting
4–20 mA
IO-Link 1.1
G 1/8 internal thread
M12 connector
Stainless-steel construction
Fast response
Compact design
Digital diagnostics
PLC integration
Hygienic application
Liquid and gas measurement
Food processing
Beverage production
Dairy plants
Breweries
Compact process equipment
Process piping
Tanks
Filling machinery
CIP/SIP
Temperature control
PLC automation
SCADA
Quality assurance
Process monitoring
OEM machinery
| Specification | Details |
|---|---|
| Product model | TA1612 |
| Order code | TA-025C2EM81-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Factory setting | 0…200 °C |
| Installation length | 25 mm |
| Process connection | G 1/8 internal thread |
| Electrical connection | M12 |
| Output | 4–20 mA |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Accuracy | ±0.3 K + ±0.1% MS |
| Resolution | 0.04 K |
| Response | Fast |
| Medium | Liquids and gases |
| Vacuum resistance | −0.1 MPa |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Housing | Stainless steel |
| Wetted parts | Stainless steel |
| Parameterisation | IO-Link |
| Application | Hygienic process |
| Installation | Compact |
