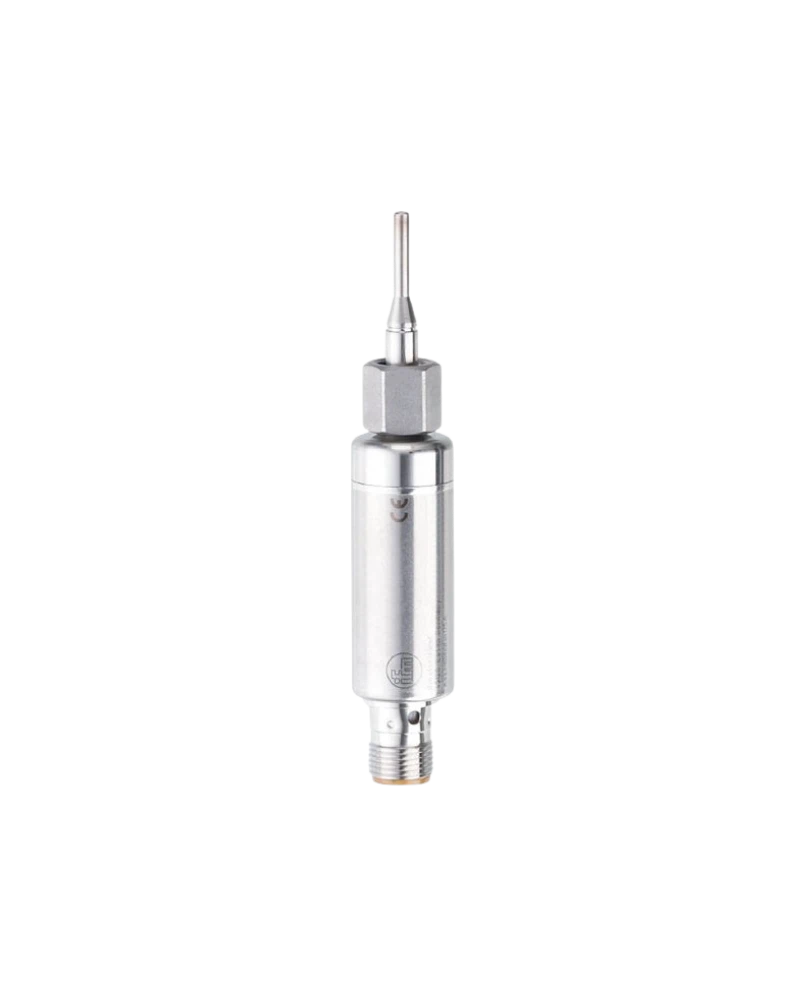

TA1612 is a compact temperature transmitter designed for accurate measurement of liquids and gases in industrial and hygienic applications. It uses a Pt 1000 Class A sensing element according to DIN EN 60751 for stable temperature measurement. The transmitter provides a configurable analogue signal together with IO-Link communication for modern automation systems. Its 25 mm installation length and G 1/8 internal thread support compact process installation. The M12 connector provides reliable electrical integration with compatible control systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The Pt 1000 Class A element provides accurate resistance-based temperature measurement across the specified process range. The sensor is designed for dependable monitoring of changing process temperatures. The Class A element supports repeatable measurement performance. Digital IO-Link communication allows process values and parameters to be accessed from the control system. This makes the transmitter suitable for continuous industrial temperature monitoring.
The 25 mm installation length allows the transmitter to be installed where available space is limited. Its G 1/8 internal thread provides a practical process connection for compatible fittings. The compact probe design supports installation in process machinery and piping. Stainless-steel construction provides mechanical durability. The sensor can be used with suitable process adapters and thermowell arrangements.
TA1612 provides an analogue output for conventional control-system integration. IO-Link communication enables parameterisation, diagnostics and digital process-data transmission. The M12 connector simplifies industrial wiring and maintenance. The transmitter can be integrated into PLC-based automation architectures. Its compact design makes it suitable for modern machine-building applications.
Pt 1000 Class A sensing element
DIN EN 60751 compliant
-50...200 °C measuring range
0...200 °C factory setting
25 mm installation length
G 1/8 internal thread
Analogue output
IO-Link communication
M12 connector
Compact construction
Liquid and gas measurement
Industrial automation compatibility
Process monitoring
Temperature diagnostics
Machine integration
Process pipelines
Tanks and vessels
Cooling systems
Heating systems
Food processing
Beverage equipment
Industrial machinery
PLC temperature monitoring
Process automation
Liquid monitoring
Gas monitoring
Machine protection
Thermal management
Equipment diagnostics
Industrial IoT
| Specification | Details |
|---|---|
| Product Model | TA1612 |
| Type Code | TA-025C2EM81-A-ZVG/US |
| Product Type | Temperature transmitter |
| Measuring Element | Pt 1000 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...200 °C |
| Factory Setting | 0...200 °C |
| Installation Length | 25 mm |
| Process Connection | G 1/8 internal thread |
| Probe Diameter | Model-specific |
| Probe Length | 25 mm |
| Media | Liquids and gases |
| Analogue Output | 1 |
| Output Signal | 4...20 mA |
| Communication | IO-Link |
| Connector | M12 |
| IO-Link Revision | 1.1 |
| Output Resolution | 0.04 K |
| Supply Voltage | 18...32 V DC |
| Current Consumption | <50 mA |
| Protection Class | III |
| Housing Material | Stainless steel |
| Protection | IP67/IP68/IP69K |
| Pack Quantity | 1 pcs |
