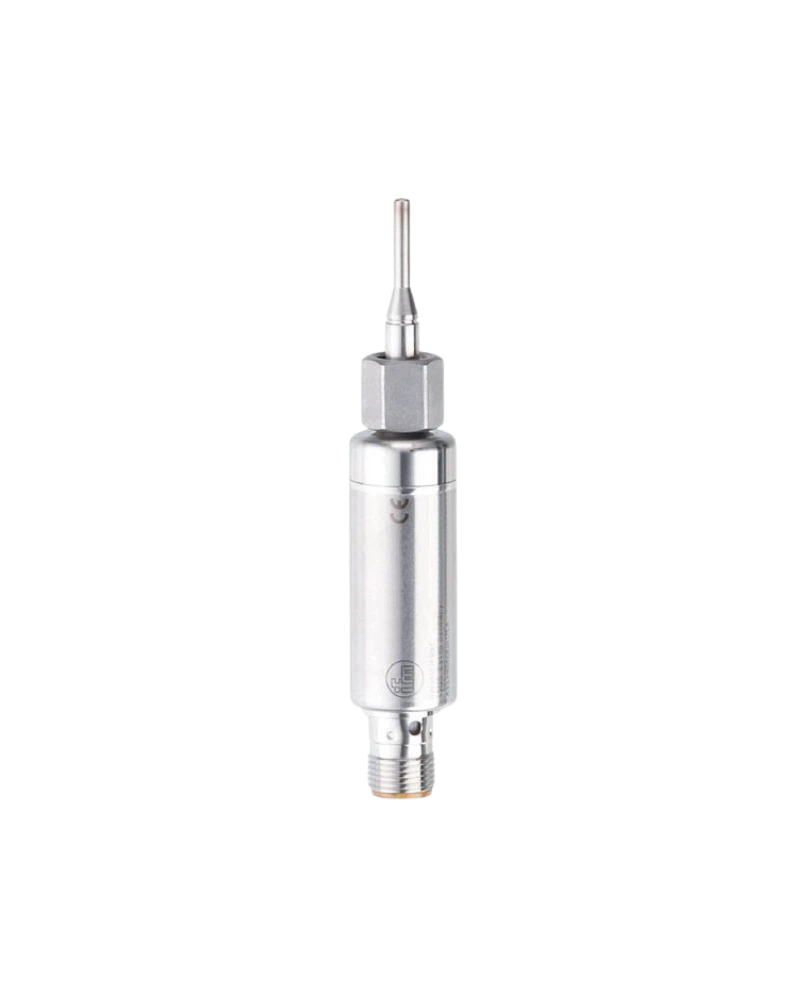

TA1605 is a compact temperature transmitter designed for applications where installation space is restricted. It uses a Pt1000 Class A measuring element and provides a −50…200 °C measuring range. Its 15 mm installation length and G 1/8 internal thread provide a compact process connection. The transmitter provides 4–20 mA output and IO-Link communication. Its stainless-steel construction and hygienic approvals support food and beverage applications. TA1605 provides fast temperature response and reliable process measurement in compact installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA1605 is designed for compact temperature measurement in hygienic process systems. Its very short 15 mm probe is useful where installation space is limited. The Pt1000 Class A element provides accurate temperature measurement. A 4–20 mA output supports standard automation. IO-Link provides digital configuration and diagnostics. The transmitter supports liquids and gases and is suitable for hygienic process equipment.
15 mm installation length
Pt1000 Class A
−50…200 °C
0…100 °C factory setting
4–20 mA
IO-Link
G 1/8 internal thread
M12 connector
Stainless steel
Food-industry approvals
Fast response
Compact design
High pressure suitability
Digital parameterisation
3-point calibration support
Compact food machinery
Beverage equipment
Dairy systems
Process piping
Small vessels
Filling equipment
CIP/SIP
Temperature control
Hygienic machinery
PLC systems
SCADA
Quality control
Process monitoring
OEM equipment
Industrial automation
| Specification | Details |
|---|---|
| Product model | TA1605 |
| Order code | TA-015C5EM81-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Factory setting | 0…100 °C |
| Installation length | 15 mm |
| Process connection | G 1/8 internal thread |
| Probe diameter | 3 mm |
| Output | 4–20 mA |
| Communication | IO-Link |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Accuracy | ±0.3 K + ±0.1% MS |
| Resolution | 0.04 K |
| Response | Fast |
| Medium | Liquids and gases |
| Vacuum resistance | −0.1 MPa |
| Electrical connection | M12 |
| Housing | Stainless steel |
| Wetted material | Stainless steel |
| Protection | IP67/IP68/IP69K |
| Approvals | EC 1935/2004, FCM, FDA, UKCA |
| Application | Hygienic |
| Installation | Space-restricted |
| Diagnostics | IO-Link |
| Calibration | Factory certificate available |
