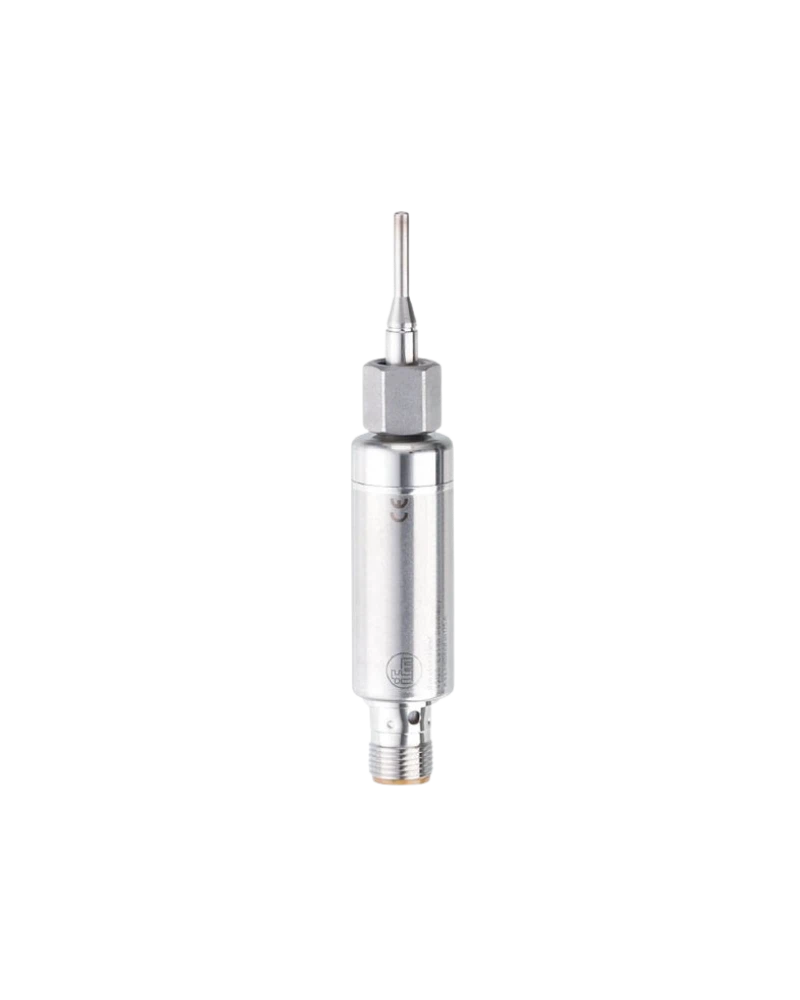

The TA1605 is a compact high-performance temperature transmitter designed for accurate process-temperature measurement. It uses a Pt 1000 Class A sensing element and provides a configurable analogue output with IO-Link communication. Its G 1/8 internal thread and 15 mm installation length support compact process installation. The transmitter provides fast dynamic response and high measurement precision. Its stainless-steel construction and IP67/IP68/IP69K protection make it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TA1605 provides precise analogue temperature measurement with an output resolution of 0.04 K. Its analogue output precision is ±0.3 K + ±0.1% of the measuring span. The temperature coefficient is 0.1% of span per 10 K under specified reference conditions. The dynamic response is below 0.25/1 second for T05/T09. This provides fast response to changing process temperatures.
The transmitter uses a G 1/8 internal thread process connection. Its 15 mm installation length supports compact process integration. The 3 mm probe provides a slim sensing profile. Stainless-steel 316L wetted construction provides robust process contact. The surface roughness of wetted parts is specified as Ra <0.8 µm.
IO-Link communication provides digital process-data access and parameterisation. The transmitter uses IO-Link COM2 at 38.4 kBaud and revision 1.1. IP67, IP68 and IP69K protection support demanding environmental conditions. Shock resistance is specified up to 50 g and vibration resistance up to 20 g. The M12 connector provides reliable electrical integration.
Pt 1000 Class A
G 1/8 internal thread
15 mm installation length
3 mm probe diameter
4...20 mA analogue output
IO-Link communication
0.04 K output resolution
Fast response
±0.3 K + ±0.1% MS accuracy
Stainless steel 316L
Ra <0.8 µm wetted surface
IP67/IP68/IP69K
50 g shock resistance
20 g vibration resistance
M12 connector
Food processing
Beverage equipment
Hygienic process systems
Process pipelines
Compact machinery
Cooling systems
Heating systems
Liquid monitoring
Gas monitoring
PLC automation
Industrial IoT
Process control
Temperature monitoring
Equipment protection
Thermal management
| Specification | Details |
|---|---|
| Product Model | TA1605 |
| Type Code | TA-015C5EM81-A-ZVG/US |
| Measuring Element | Pt 1000 |
| Accuracy Class | Class A |
| Installation Length | 15 mm |
| Probe Diameter | 3 mm |
| Process Connection | G 1/8 internal thread |
| Probe Length | Model-specific |
| Analogue Output | 1 |
| Output Signal | 4...20 mA |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Transmission | COM2 38.4 kBaud |
| Minimum Cycle Time | 2.3 ms |
| Output Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Temperature Coefficient | 0.1% span/10 K |
| T05 | <0.25 s |
| T09 | <1 s |
| Ambient Temperature | -25...80 °C |
| Storage Temperature | -40...100 °C |
| Housing | Cylindrical |
| Housing Diameter | 19 mm |
| Protection | IP67/IP68/IP69K |
| Electrical Connection | M12 |
