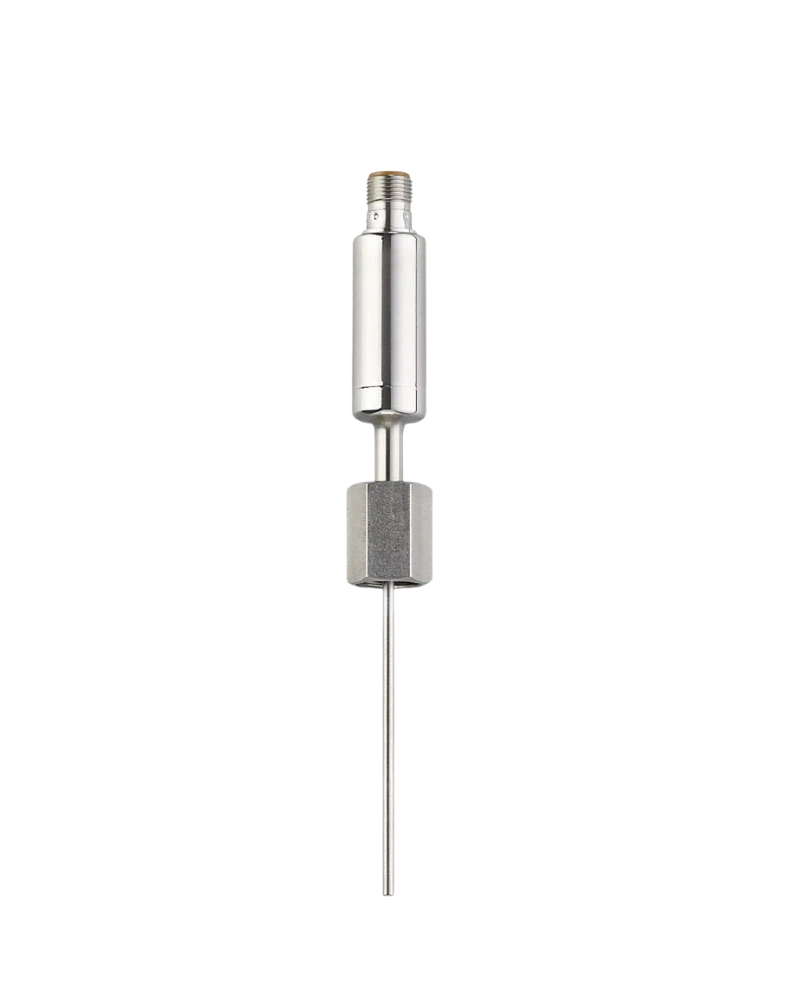

TA1327 is a hygienic temperature transmitter with an 83 mm installation length and G 3/8 process connection. It uses a Pt1000 Class A sensing element for stable and accurate temperature measurement. The transmitter supports a −50…200 °C measuring range with a 0…100 °C factory setting. A 4–20 mA output provides reliable analogue process transmission. IO-Link enables digital configuration, diagnostics and process-data access. TA1327 is suitable for food, beverage and sanitary process installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA1327 is designed for hygienic temperature monitoring in process equipment. Its 83 mm sensing length allows deeper measurement in tanks and pipework. The Pt1000 Class A sensor provides accurate temperature detection. Its analogue output supports standard control systems. IO-Link provides digital parameterisation and monitoring. The stainless-steel design supports demanding cleaning and production environments.
Pt1000 Class A
83 mm installation length
−50…200 °C
0…100 °C factory setting
4–20 mA
IO-Link 1.1
G 3/8 connection
M12 electrical connection
Stainless steel
Hygienic construction
Fast response
Digital parameterisation
PLC integration
Process diagnostics
Food-industry compatible
Food processing
Dairy plants
Beverage systems
Breweries
Process tanks
Piping
Filling equipment
CIP/SIP
Temperature control
Quality assurance
PLC automation
SCADA
Process monitoring
Production lines
Hygienic machinery
| Specification | Details |
|---|---|
| Product model | TA1327 |
| Order code | TA-083C7EM38-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Factory setting | 0…100 °C |
| Installation length | 83 mm |
| Process connection | G 3/8 internal |
| Electrical connection | M12 |
| Output | 4–20 mA |
| Communication | IO-Link |
| Revision | 1.1 |
| Transmission | COM2 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Accuracy | ±0.3 K + ±0.1% MS |
| Resolution | 0.04 K |
| T05/T09 | <0.25 / <1 s |
| Medium | Liquids and gases |
| Vacuum resistance | −0.1 MPa |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Shock | 50 g |
| Vibration | 10 g |
| Housing | Stainless steel |
| Application | Hygienic process |
