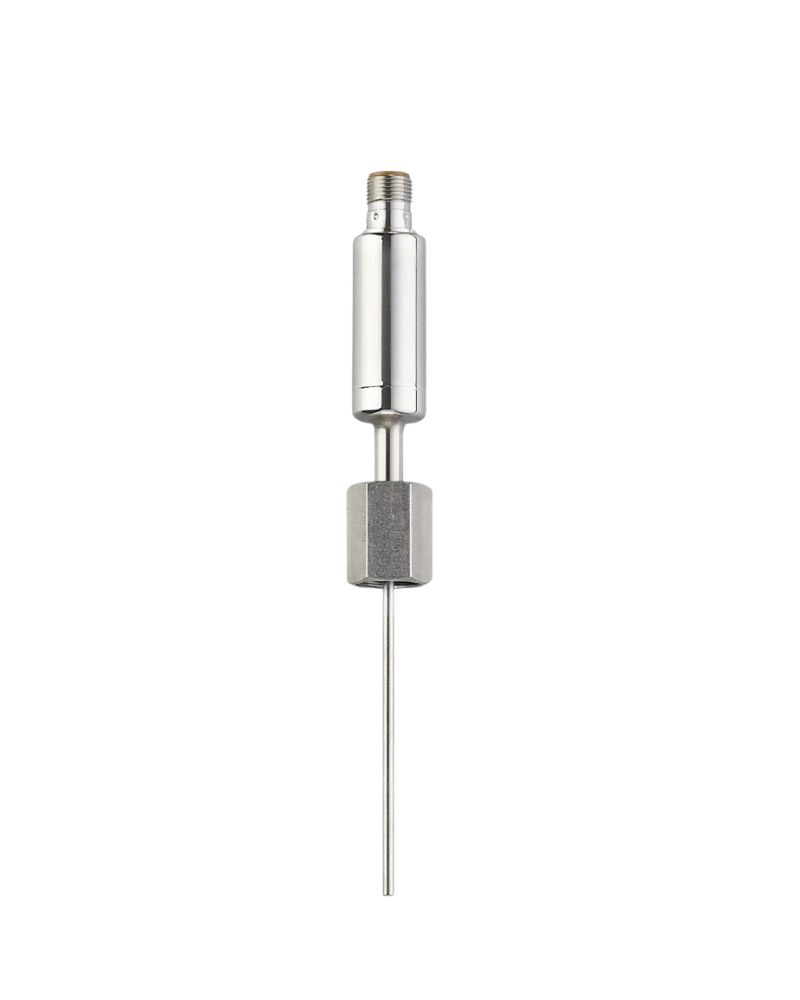

The TA1327 is an extended 83 mm Pt 1000 temperature transmitter designed for industrial and hygienic process measurement. It supports a -50...200 °C measuring range with a 0...100 °C factory setting. The G 3/8 internal thread provides secure process installation and is suitable for compatible thermowell arrangements. Its configurable 4...20 mA output and IO-Link communication provide flexible automation integration. The transmitter offers fast response, high measurement accuracy and robust environmental protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The Pt 1000 Class A sensing element provides accurate and repeatable measurement. The sensor supports -50...200 °C. The factory setting is 0...100 °C. The analogue output resolution is 0.04 K. The analogue output precision is ±0.3 K + ±0.1% of the measuring span.
The G 3/8 internal thread provides secure process integration. The 83 mm installation length provides deeper measurement into process media. The 3 mm probe provides a compact sensing tip. The design is suitable for liquids and gases. It can be suitable for thermowell mounting according to the specified application.
The 4...20 mA analogue output provides standard process-signal integration. IO-Link enables remote configuration and diagnostics. The transmitter uses COM2 at 38.4 kBaud and IO-Link revision 1.1. Its fast response makes it suitable for dynamic temperature processes. Short-circuit and overload protection support dependable operation.
Pt 1000 Class A
-50...200 °C
Factory setting 0...100 °C
G 3/8 internal thread
83 mm installation length
3 mm probe diameter
4...20 mA output
IO-Link
0.04 K resolution
Fast response
M12 connector
IP67/IP68/IP69K
Thermowell compatible
Stainless-steel construction
Industrial automation ready
Food processing
Beverage processing
Process pipelines
Process vessels
Thermowells
Heating systems
Cooling systems
Hygienic machinery
Liquid monitoring
Gas monitoring
PLC automation
Industrial IoT
Temperature control
Process monitoring
Equipment protection
| Specification | Details |
|---|---|
| Product Model | TA1327 |
| Type Code | TA-083C7EM38-A-ZVG/US |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...200 °C |
| Factory Setting | 0...100 °C |
| Installation Length | 83 mm |
| Probe Length | 83 mm |
| Probe Diameter | 3 mm |
| Process Connection | G 3/8 internal thread |
| Media | Liquids and gases |
| Vacuum Resistance | -0.1 MPa |
| Analogue Outputs | 1 |
| Output Signal | 4...20 mA |
| Maximum Load | 250/300 Ω |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05 | <0.25 s |
| Response T09 | <1 s |
| Supply | 18...32 V DC |
| Current Consumption | <50 mA |
| Protection Class | III |
| Protection | IP67/IP68/IP69K |
