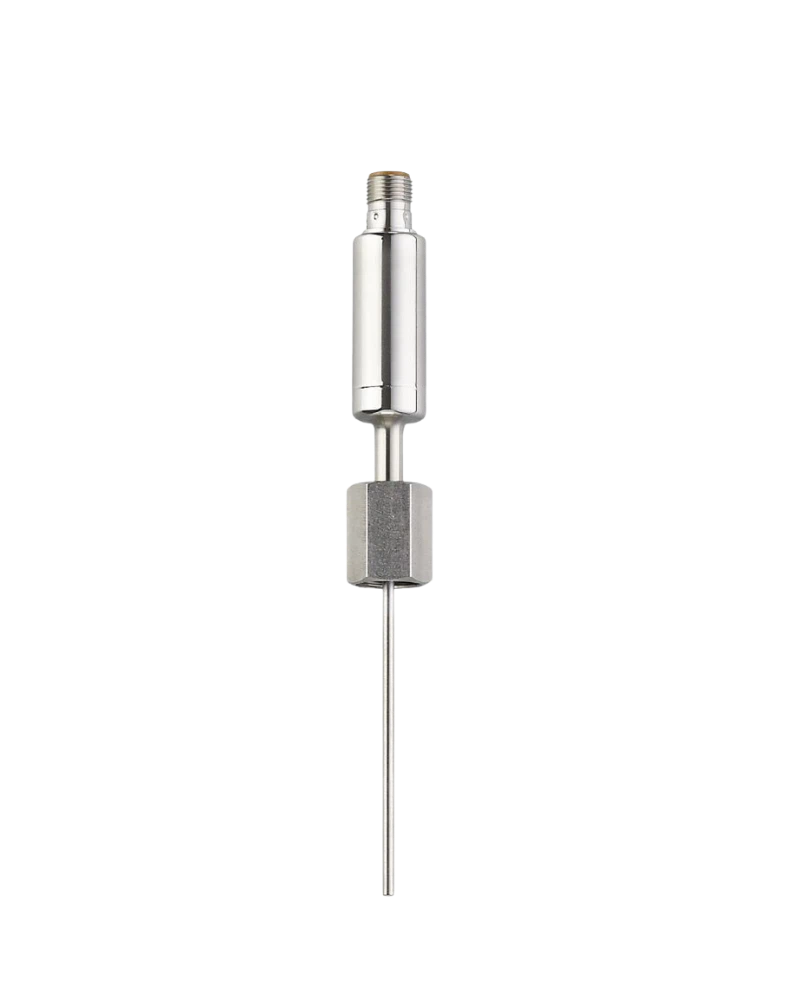

TA1322 is an 83 mm hygienic temperature transmitter designed for accurate process-temperature measurement. It uses a Pt1000 Class A element and provides a −50…200 °C measuring range. The transmitter offers a 4–20 mA analogue output with IO-Link communication for digital configuration. Its G 3/8 internal process connection supports hygienic process installations. Stainless-steel construction provides durability in demanding production environments. TA1322 is suitable for food, beverage and general sanitary process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA1322 combines accurate RTD temperature measurement with a compact hygienic process connection. Its 83 mm installation length provides deeper sensing than the TA110x miniature range. The Pt1000 Class A element supports accurate process measurement. The analogue output allows direct PLC integration. IO-Link enables digital parameterisation and diagnostics. The transmitter is suitable for liquids and gases.
The Pt1000 element changes electrical resistance with temperature. Electronics convert this resistance into a temperature value. A 4–20 mA output provides the analogue process signal. IO-Link provides digital communication. The device continuously monitors process temperature. Its fast response supports dynamic process control.
Pt1000 Class A
83 mm installation length
−50…200 °C range
0…200 °C factory setting
4–20 mA
IO-Link 1.1
G 3/8 internal connection
M12 connector
Stainless-steel construction
Hygienic design
Fast response
Digital diagnostics
PLC integration
Food-industry suitability
Food manufacturing
Dairy processing
Beverage plants
Breweries
Tanks
Pipelines
Thermowells
Filling systems
CIP processes
SIP processes
Temperature control
Quality monitoring
PLC systems
SCADA
Process automation
| Specification | Details |
|---|---|
| Product model | TA1322 |
| Order code | TA-083C2EM38-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Factory setting | 0…200 °C |
| Installation length | 83 mm |
| Process connection | G 3/8 internal thread |
| Electrical connection | M12 |
| Output | 4–20 mA |
| Communication | IO-Link |
| Revision | 1.1 |
| Communication mode | COM2 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Accuracy | ±0.3 K + ±0.1% MS |
| Output resolution | 0.04 K |
| Response T05/T09 | <0.25 / <1 s |
| Medium | Liquids and gases |
| Vacuum resistance | −0.1 MPa |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Shock resistance | 50 g |
| Vibration resistance | 10 g |
| Housing | Stainless steel |
| Application | Hygienic |
