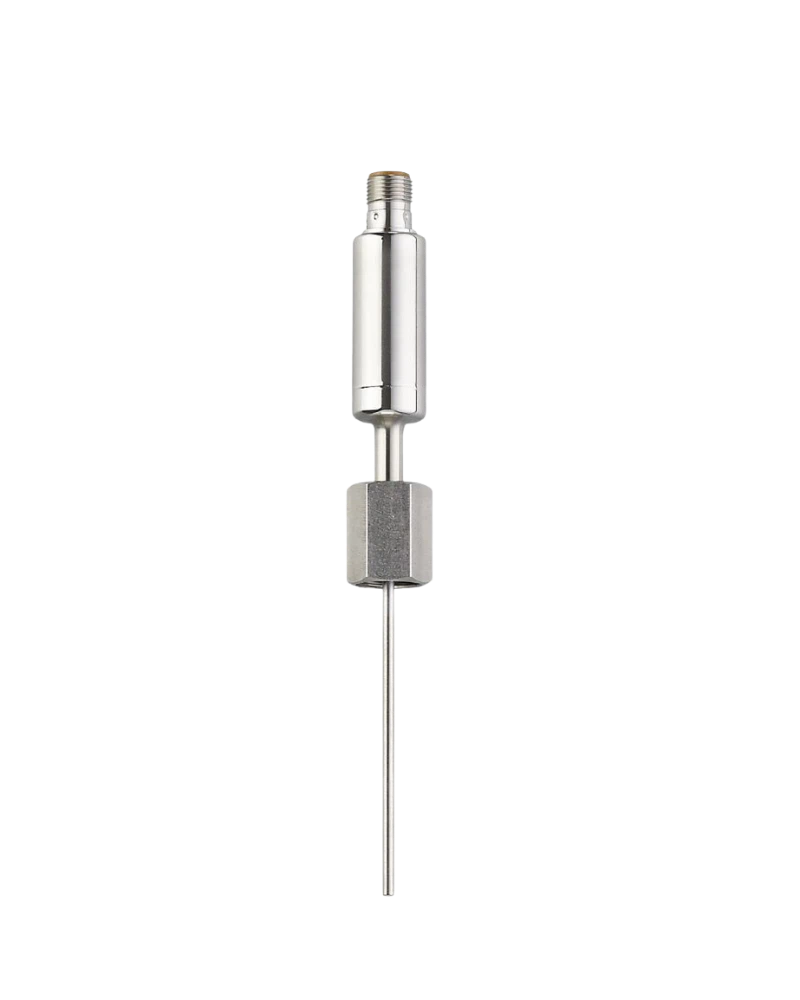

The TA1322 is an extended-length Pt 1000 temperature transmitter designed for accurate measurement of liquids and gases. It supports a -50...200 °C measuring range and a 0...200 °C factory setting. Its G 3/8 internal thread and 83 mm installation length provide deeper process measurement. The transmitter offers a configurable 4...20 mA output together with IO-Link communication. Its fast response and robust industrial construction make it suitable for process automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The Pt 1000 Class A sensing element provides stable and accurate temperature measurement. The transmitter covers -50...200 °C. Its factory setting is 0...200 °C. The analogue output provides precise temperature transmission. The dynamic response is below 0.25/1 second for T05/T09.
The G 3/8 internal thread provides secure process mounting. The 83 mm installation length supports deeper immersion. The 3 mm probe is suitable for compact process measurement. The transmitter is suitable for liquids and gases. M12 connectivity provides reliable industrial electrical integration.
The 4...20 mA output can be scaled according to the application. IO-Link enables parameterisation and process-data communication. The 0.04 K analogue resolution supports precise signal representation. Short-circuit and overload protection improve reliability. The transmitter is suitable for PLC and industrial automation systems.
Pt 1000 Class A
-50...200 °C
Factory setting 0...200 °C
G 3/8 internal thread
83 mm installation length
3 mm probe diameter
4...20 mA output
IO-Link
0.04 K resolution
Fast response
M12 connector
IP67/IP68/IP69K
Stainless-steel construction
Liquid and gas measurement
Industrial automation
Process pipelines
Process vessels
Food processing
Beverage systems
Cooling systems
Heating systems
Hygienic machinery
Liquid monitoring
Gas monitoring
PLC systems
Process control
Industrial IoT
Temperature alarms
Thermowell installations
Equipment protection
| Specification | Details |
|---|---|
| Product Model | TA1322 |
| Type Code | TA-083C2EM38-A-ZVG/US |
| Measuring Element | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...200 °C |
| Factory Setting | 0...200 °C |
| Installation Length | 83 mm |
| Probe Length | 83 mm |
| Probe Diameter | 3 mm |
| Process Connection | G 3/8 internal thread |
| Media | Liquids and gases |
| Analogue Outputs | 1 |
| Output Signal | 4...20 mA |
| Maximum Load | 250/300 Ω |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05 | <0.25 s |
| Response T09 | <1 s |
| Supply Voltage | 18...32 V DC |
| Current Consumption | <50 mA |
| Protection Class | III |
| Connector | M12 |
| Protection | IP67/IP68/IP69K |
