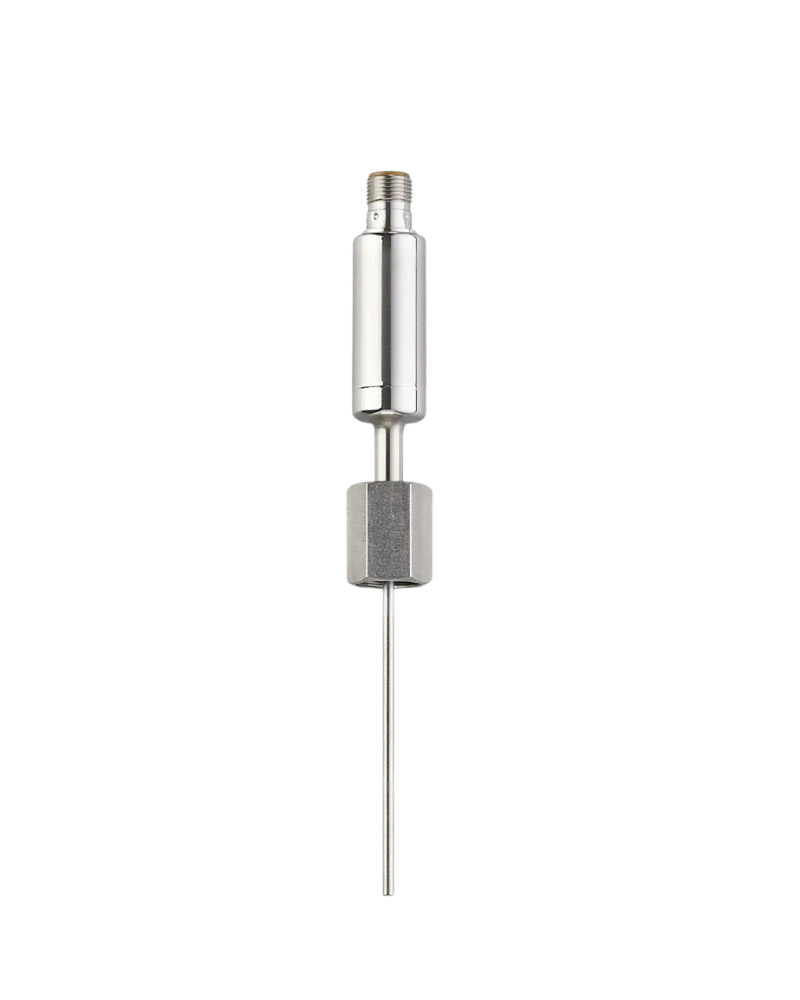

TA1321 is a hygienic temperature transmitter with an 83 mm installation length and G 3/8 process connection. It uses a Pt1000 Class A measuring element for accurate process temperature measurement. The transmitter provides a −50…200 °C measuring range and 4–20 mA analogue output. IO-Link enables digital parameterisation and process-data communication. Stainless-steel construction supports food and beverage process environments. TA1321 is suitable for tanks, pipes and thermowell-based installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA1321 is designed for hygienic temperature measurement where an extended sensing length is required. Its 83 mm probe provides deeper temperature sensing than compact TA110x models. The G 3/8 internal process connection supports hygienic process integration. The Pt1000 Class A element provides stable measurement. 4–20 mA and IO-Link provide flexible automation integration. The device is suitable for liquids and gases.
Pt1000 Class A
83 mm installation length
−50…200 °C range
Factory range −10…150 °C
4–20 mA
IO-Link 1.1
G 3/8 internal thread
M12 electrical connection
Stainless steel
Hygienic construction
Fast response
PLC integration
Digital diagnostics
Process monitoring
Food-industry suitability
Food processing
Dairy plants
Beverage production
Breweries
Process tanks
Piping systems
Thermowells
Filling equipment
CIP/SIP
Temperature control
Quality assurance
PLC automation
SCADA
Process monitoring
Production systems
| Specification | Details |
|---|---|
| Product model | TA1321 |
| Order code | TA-083C1EM38-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Factory setting | −10…150 °C |
| Installation length | 83 mm |
| Process connection | G 3/8 internal thread |
| Electrical connection | M12 |
| Output | 4–20 mA |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission | COM2 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Accuracy | ±0.3 K + ±0.1% MS |
| Resolution | 0.04 K |
| Response T05/T09 | <0.25 / <1 s |
| Medium | Liquids and gases |
| Pressure rating | Process-dependent |
| Vacuum resistance | −0.1 MPa |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Housing | Stainless steel |
| Application | Hygienic process |
