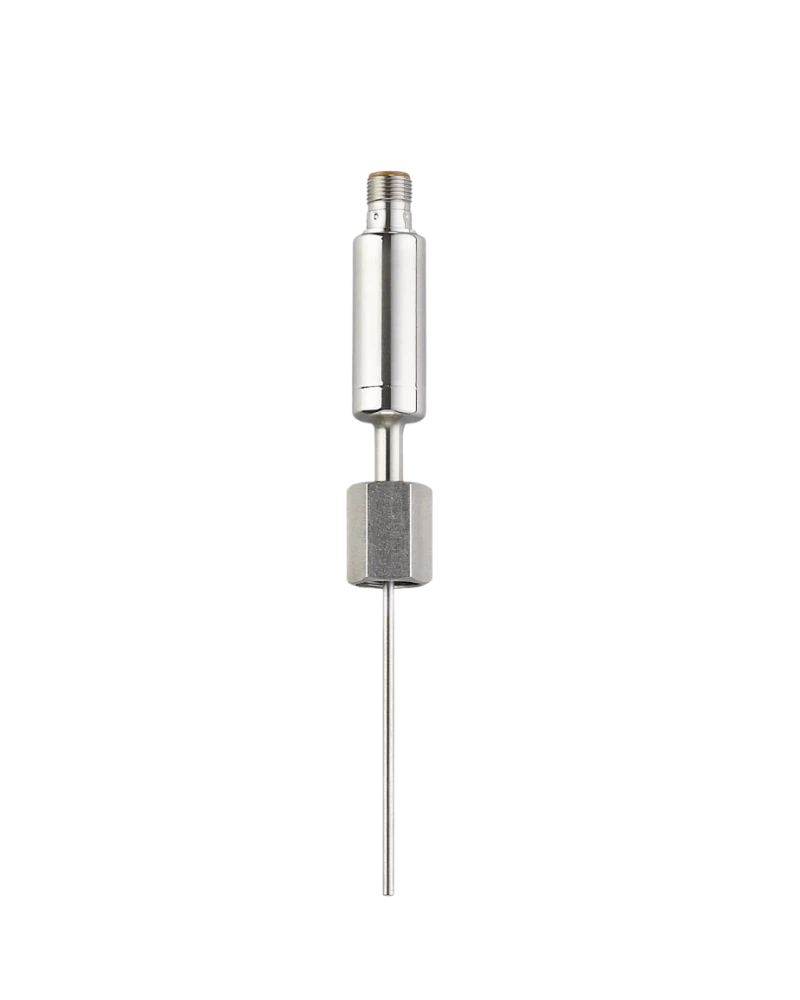

The TA1321 is an extended-length Pt 1000 temperature transmitter designed for hygienic and industrial process applications. It provides a -50...200 °C measuring range with a factory setting of -10...150 °C. The transmitter uses a G 3/8 internal thread and provides an 83 mm installation length for deeper process measurement. A configurable 4...20 mA output and IO-Link communication support modern automation systems. Its robust stainless-steel construction is suitable for liquids and gases.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The Pt 1000 Class A element provides precise temperature measurement according to DIN EN 60751. The -50...200 °C range covers a broad selection of industrial processes. The factory setting is -10...150 °C. Analogue output accuracy is ±0.3 K + ±0.1% of the measuring span. The transmitter provides fast response below 0.25/1 second.
The G 3/8 internal thread provides a practical connection for compatible process installations. The 83 mm installation length allows deeper immersion into process media. The design is suitable for liquids and gases. The construction can also be used with suitable thermowells according to application requirements. M12 electrical connectivity supports industrial automation.
The transmitter provides one configurable 4...20 mA output. IO-Link enables remote parameterisation and process-data communication. The analogue output resolution is 0.04 K. Short-circuit and overload protection support reliable operation. The transmitter can be integrated into PLC, SCADA and industrial IoT architectures.
Pt 1000 Class A
-50...200 °C
Factory setting -10...150 °C
G 3/8 internal thread
83 mm installation length
4...20 mA output
IO-Link
0.04 K resolution
Fast response
Stainless-steel construction
M12 connector
IP67/IP68/IP69K
Liquid and gas compatible
Process automation ready
Suitable for thermowell installation
Food processing
Beverage systems
Process vessels
Process pipelines
Heating systems
Cooling systems
Hygienic machinery
Liquid monitoring
Gas monitoring
PLC temperature control
Industrial automation
Process monitoring
Industrial IoT
Thermowell installations
Equipment protection
| Specification | Details |
|---|---|
| Product Model | TA1321 |
| Type Code | TA-083C1EM38-A-ZVG/US |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...200 °C |
| Factory Setting | -10...150 °C |
| Installation Length | 83 mm |
| Probe Length | 83 mm |
| Probe Diameter | 3 mm |
| Process Connection | G 3/8 internal thread |
| Media | Liquids and gases |
| Analogue Outputs | 1 |
| Output Signal | 4...20 mA |
| Maximum Load | 250/300 Ω |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05 | <0.25 s |
| Response T09 | <1 s |
| Supply | 18...32 V DC |
| Current Consumption | <50 mA |
| Protection Class | III |
| Electrical Connection | M12 |
| Protection | IP67/IP68/IP69K |
