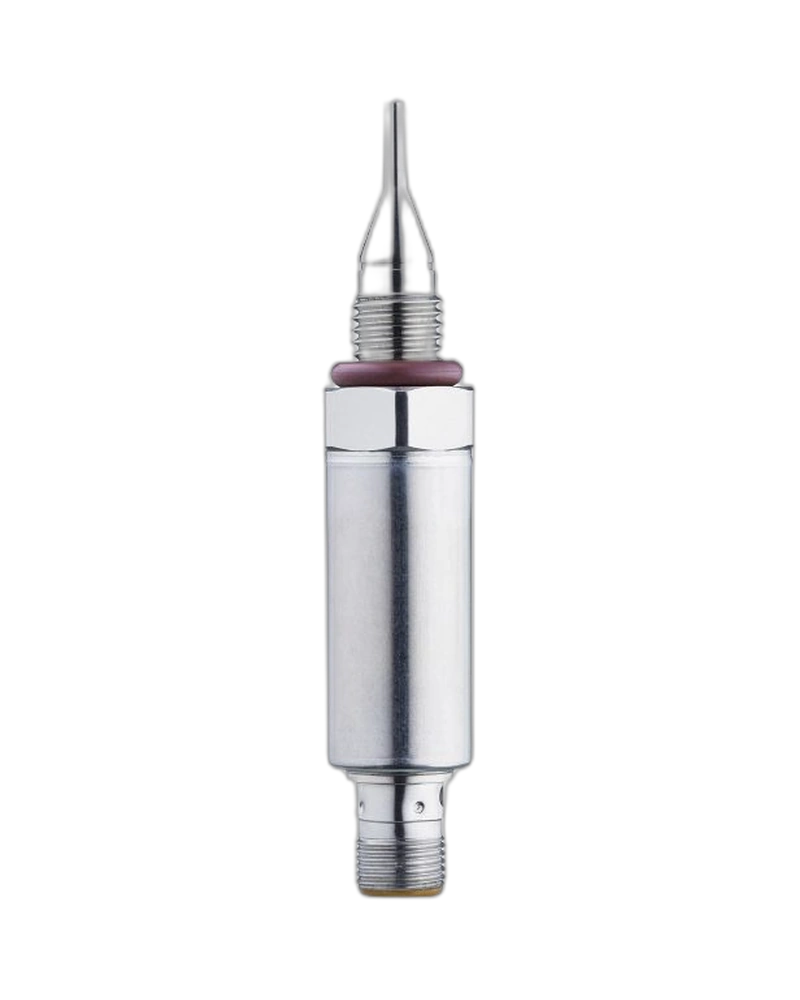

TA1107 is a compact temperature transmitter with a Pt1000 Class A sensing element. It provides a −50…200 °C measuring range and a 17 mm installation length. The device is supplied with a 4–20 mA analogue output and IO-Link communication. Its M12 × 1.5 hygienic process connection supports compact installation. The transmitter provides fast response for dynamic process temperature monitoring. TA1107 is suitable for food, beverage and sanitary process equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA1107 is designed for precise temperature measurement in compact hygienic installations. Its short sensing length allows installation where space is limited. The Pt1000 Class A element provides stable and accurate temperature detection. The 4–20 mA output supports conventional automation. IO-Link adds digital configuration and diagnostics. The stainless-steel construction supports demanding production environments.
The Pt1000 sensing element measures temperature through resistance variation. Internal electronics convert the resistance value into a temperature measurement. The analogue output transmits the value as 4–20 mA. IO-Link provides digital process data. Fast response allows temperature changes to be detected quickly. This supports reliable process control.
Pt1000 Class A
−50…200 °C
17 mm installation length
0…100 °C factory setting
4–20 mA
IO-Link 1.1
M12 × 1.5 connection
100 bar pressure rating
Fast T05/T09
Stainless steel
Hygienic construction
Compact design
Digital parameterisation
PLC integration
Process monitoring
Food processing
Beverage production
Dairy applications
Breweries
Process piping
Compact tanks
Filling machines
CIP/SIP
Temperature control
PLC automation
SCADA
Quality monitoring
Machine monitoring
Process supervision
Industrial automation
| Specification | Details |
|---|---|
| Product model | TA1107 |
| Order code | TA-017C7EM12-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Factory setting | 0…100 °C |
| Installation length | 17 mm |
| Probe diameter | 3 mm |
| Process connection | M12 × 1.5 external |
| Pressure rating | 100 bar |
| Vacuum resistance | −0.1 MPa |
| Output | 4–20 mA |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Speed | COM2, 38.4 kBaud |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Accuracy | ±0.3 K + ±0.1% MS |
| Output resolution | 0.04 K |
| Response T05/T09 | <0.25 / <1 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Shock resistance | 50 g |
| Vibration resistance | 10 g |
| Housing | Stainless steel |
| Application | Hygienic |
