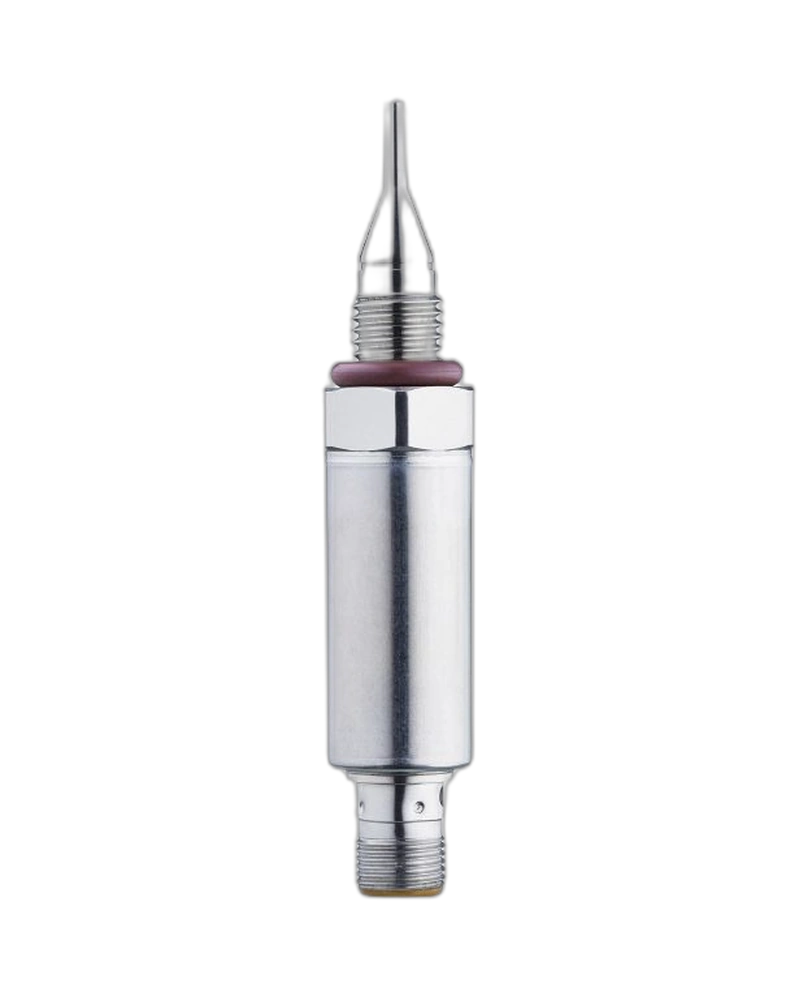

The TA1107 is a compact Pt 1000 temperature transmitter designed for precise industrial and hygienic temperature monitoring. It provides a configurable 4...20 mA analogue output together with IO-Link communication. The sensor supports a -50...200 °C measuring range with a 0...100 °C factory setting. Its 17 mm installation length and M12 × 1.5 external thread allow installation in compact process systems. The transmitter combines fast response, high accuracy and robust industrial protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The Pt 1000 Class A element provides accurate resistance-based temperature measurement. The measuring range covers -50...200 °C. The factory setting is 0...100 °C. Analogue output precision is ±0.3 K + ±0.1% of the measuring span. The transmitter provides a very fast T05/T09 response below 0.25/1 second.
The TA1107 provides one analogue 4...20 mA output. IO-Link enables digital process-data communication and configuration. The output can be scaled according to the application. Short-circuit and overload protection support dependable operation. The device can be integrated into PLC and industrial automation systems.
The M12 × 1.5 external thread with sealing cone provides secure installation. The 17 mm installation length is suitable for compact process systems. The device supports liquids and gases and a 100 bar pressure rating. Vacuum resistance is specified to -1000 mbar. IP67, IP68 and IP69K protection provide broad environmental protection.
Pt 1000 Class A
-50...200 °C
Factory setting 0...100 °C
4...20 mA output
IO-Link
17 mm installation length
M12 × 1.5 external thread
100 bar pressure rating
Vacuum resistance
0.04 K analogue resolution
Fast response
IP67/IP68/IP69K
Short-circuit protection
Overload protection
M12 connector
Food processing
Beverage production
Hygienic process systems
Process piping
Cooling systems
Heating systems
Liquid monitoring
Gas monitoring
PLC systems
Industrial automation
Temperature control
Process monitoring
Machine protection
Industrial IoT
Equipment diagnostics
| Specification | Details |
|---|---|
| Product Model | TA1107 |
| Type Code | TA-017C7EM12-A-ZVG/US |
| Sensor | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...200 °C |
| Factory Setting | 0...100 °C |
| Installation Length | 17 mm |
| Probe Length | 10.8 mm |
| Probe Diameter | 3 mm |
| Process Connection | M12 × 1.5 external |
| Sealing | Sealing cone |
| Pressure Rating | 100 bar |
| Vacuum Resistance | -1000 mbar |
| Analogue Output | 1 |
| Output Signal | 4...20 mA |
| Maximum Load | 250/300 Ω |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05 | <0.25 s |
| Response T09 | <1 s |
| Supply | 18...32 V DC |
| Protection | IP67/IP68/IP69K |
