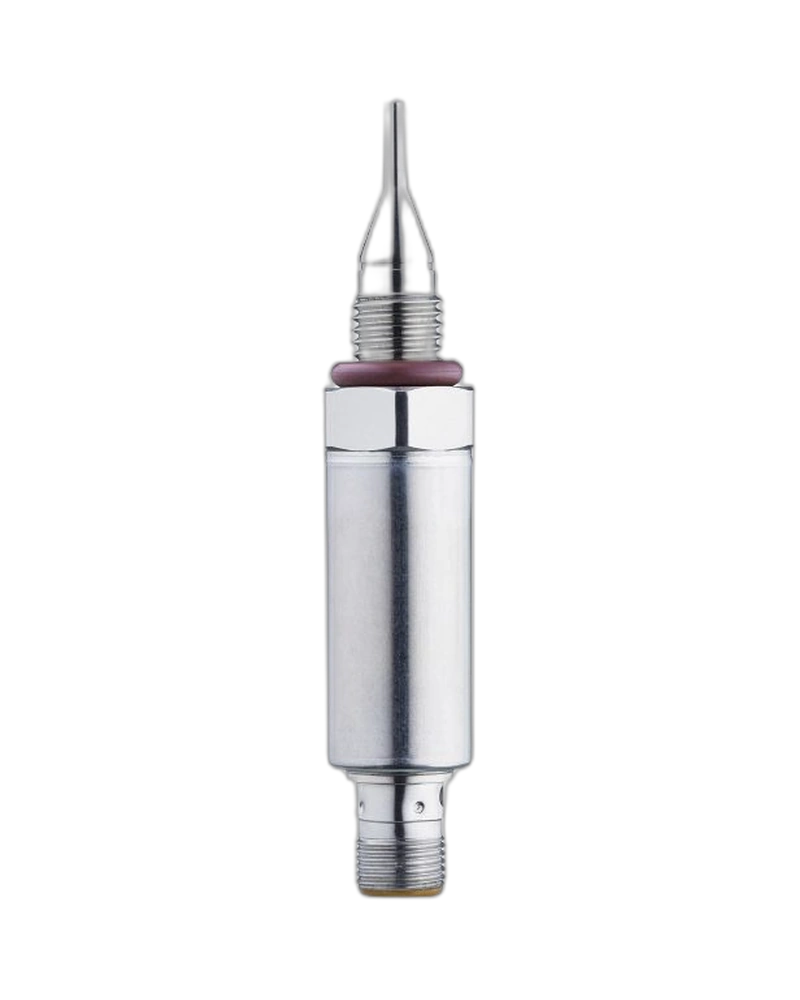

TA1102 is a compact Pt1000 temperature transmitter designed for hygienic temperature measurement. It provides a −50…200 °C measuring range with a 17 mm installation length. The transmitter supports a 4–20 mA analogue output and IO-Link communication. Its M12 × 1.5 process connection provides a compact and secure installation interface. Stainless-steel construction supports demanding food and beverage environments. TA1102 is suitable for accurate temperature monitoring in process equipment and hygienic machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA1102 combines accurate RTD temperature sensing with compact mechanical dimensions. Its Pt1000 Class A element provides stable temperature measurement. The 17 mm installation length makes it suitable for restricted spaces. The analogue output can be integrated into PLC systems. IO-Link enables digital parameterisation and process-data monitoring. Its hygienic construction supports liquid and gas applications.
The Pt1000 element changes resistance according to temperature. The electronics measure this resistance and convert it into a temperature value. A proportional 4–20 mA signal is generated for automation systems. IO-Link provides digital process information. The transmitter continuously monitors the process temperature. The measurement architecture supports fast and reliable process control.
Pt1000 Class A
−50…200 °C
17 mm installation length
4–20 mA
IO-Link 1.1
M12 × 1.5 connection
Stainless-steel construction
100 bar pressure rating
Fast response
Hygienic design
PLC integration
Digital diagnostics
Compact installation
Liquid/gas measurement
Food-industry suitability
Food processing
Beverage production
Dairy systems
Breweries
Process piping
Compact vessels
Hygienic machinery
Filling systems
CIP monitoring
Temperature control
PLC systems
SCADA systems
Quality assurance
Process monitoring
Production automation
| Specification | Details |
|---|---|
| Product model | TA1102 |
| Order code | TA-017C2EM12-A-ZVG/US |
| Measuring element | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Factory setting | 0…200 °C |
| Installation length | 17 mm |
| Probe diameter | 3 mm |
| Process connection | M12 × 1.5 external |
| Sealing | Sealing cone |
| Pressure rating | 100 bar |
| Vacuum resistance | −0.1 MPa |
| Output | 4–20 mA |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission | COM2 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Accuracy | ±0.3 K + ±0.1% MS |
| Resolution | 0.04 K |
| T05/T09 | <0.25 / <1 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Electrical connection | M12 |
| Construction | Stainless steel |
| Application | Hygienic process |
