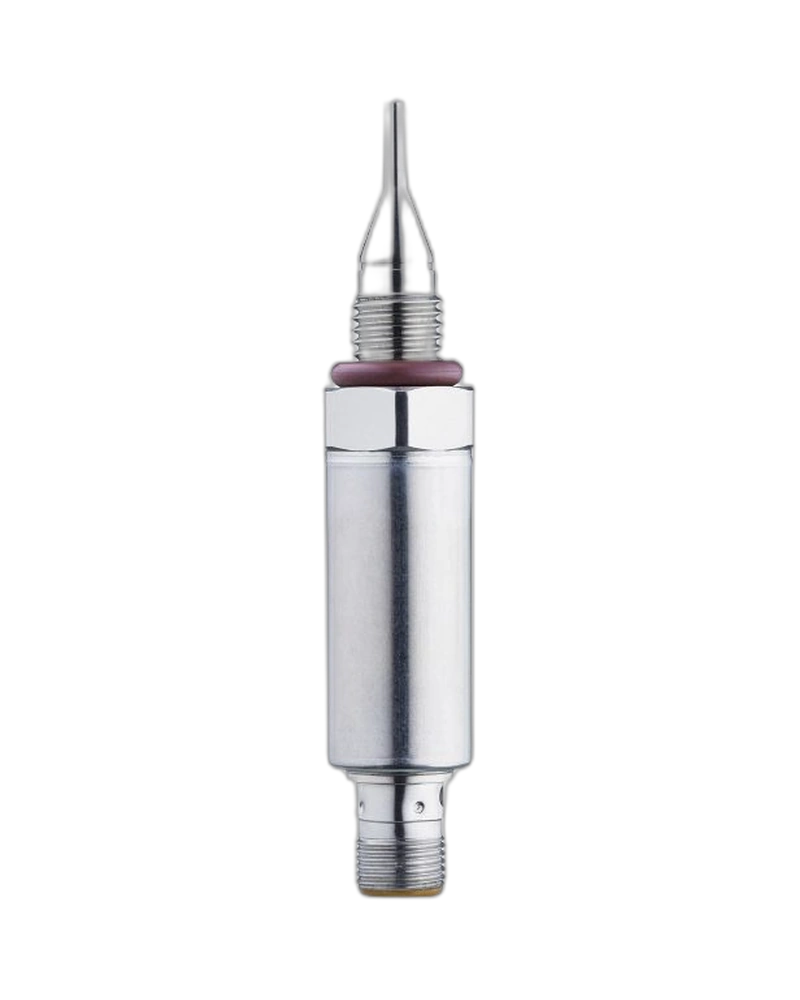

The TA1102 is a compact Pt 1000 temperature transmitter designed for precise temperature measurement in liquids and gases. It provides a configurable 4...20 mA analogue output and IO-Link communication. Its 17 mm installation length and M12 × 1.5 external thread make it suitable for compact process installations. The transmitter supports a -50...200 °C measuring range and 100 bar pressure rating. Its fast response and digital communication make it suitable for modern industrial automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The Pt 1000 Class A element provides stable and accurate resistance-based measurement. The measuring range extends from -50 to 200 °C. The factory setting is 0...200 °C. Analogue output precision is specified as ±0.3 K + ±0.1% of the measuring span. Its response time is below 0.25/1 second for T05/T09.
The TA1102 provides one configurable analogue output. The output signal is 4...20 mA. IO-Link enables digital process-data transmission and parameterisation. The analogue output resolution is 0.04 K. Short-circuit and overload protection support reliable industrial operation.
The 17 mm installation length allows installation in confined spaces. The M12 × 1.5 external thread with sealing cone provides secure process mounting. The transmitter supports liquids and gases. Its 100 bar pressure rating suits demanding process applications. The M12 connector provides convenient electrical integration.
Pt 1000 Class A
-50...200 °C
Factory setting 0...200 °C
4...20 mA analogue output
IO-Link
17 mm installation length
M12 × 1.5 external thread
100 bar pressure rating
Vacuum resistance
0.04 K output resolution
Fast response
Short-circuit protection
Overload protection
IP67/IP68/IP69K
M12 connector
Food processing
Beverage processing
Hygienic systems
Process pipelines
Cooling systems
Heating systems
Pumps
Liquid monitoring
Gas monitoring
PLC automation
Temperature control
Industrial IoT
Process monitoring
Machine protection
Equipment diagnostics
| Specification | Details |
|---|---|
| Product Model | TA1102 |
| Type Code | TA-017C2EM12-A-ZVG/US |
| Measuring Element | Pt 1000 Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...200 °C |
| Factory Setting | 0...200 °C |
| Installation Length | 17 mm |
| Probe Length | 10.8 mm |
| Probe Diameter | 3 mm |
| Process Connection | M12 × 1.5 external |
| Sealing | Sealing cone |
| Pressure Rating | 100 bar |
| Vacuum Resistance | -1000 mbar |
| Analogue Outputs | 1 |
| Output Signal | 4...20 mA |
| Maximum Load | 250/300 Ω |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05 | <0.25 s |
| Response T09 | <1 s |
| Supply Voltage | 18...32 V DC |
| Protection | IP67/IP68/IP69K |
