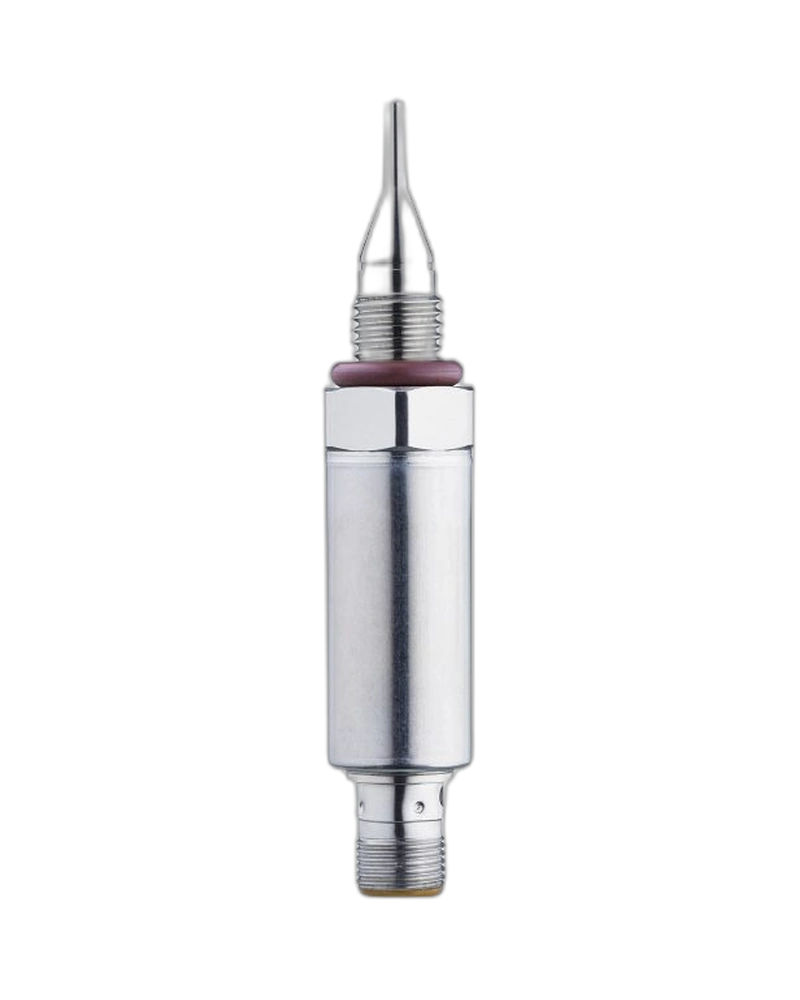

TA1101 is a compact temperature transmitter designed for hygienic process applications. It uses a Pt1000 Class A measuring element for accurate temperature measurement. The 17 mm installation length makes it suitable for compact process connections and restricted installation spaces. A 4–20 mA analogue output provides direct PLC integration while IO-Link enables digital parameterisation. Its stainless-steel construction supports food and beverage processing environments. TA1101 is suitable for continuous temperature measurement in hygienic machinery and process systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA1101 provides precise temperature measurement in a compact hygienic transmitter format. The Pt1000 Class A element provides stable and repeatable temperature measurement. Its short installation length is useful for compact process equipment. The 4–20 mA output can be scaled for process control. IO-Link provides digital access to process values and configuration. The transmitter is suitable for liquids and gases.
The Pt1000 resistance changes according to process temperature. Internal electronics evaluate this resistance and convert it into a temperature value. The transmitter generates a proportional 4–20 mA signal. IO-Link provides digital process-data communication. The electronics compensate and condition the sensor signal. This provides reliable temperature information for automation systems.
Pt1000 Class A element
−50…200 °C range
17 mm installation length
4–20 mA output
IO-Link 1.1
M12 process connection
Stainless-steel construction
Hygienic design
Fast response
Compact form factor
Digital parameterisation
PLC integration
Process diagnostics
Liquid and gas measurement
Food-industry suitability
Food processing
Dairy plants
Beverage production
Breweries
Process piping
Small process vessels
Filling equipment
CIP systems
Temperature control
PLC monitoring
SCADA
Quality control
Process automation
Machine monitoring
Hygienic equipment
| Specification | Details |
|---|---|
| Product model | TA1101 |
| Order code | TA-017C1EM12-A-ZVG/US |
| Product type | Temperature transmitter |
| Measuring element | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Factory setting | −10…150 °C |
| Installation length | 17 mm |
| Probe diameter | Approx. 3 mm |
| Process connection | M12 × 1.5 external thread |
| Sealing | Sealing cone |
| Output | 4–20 mA |
| Analogue outputs | 1 |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission | COM2 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Accuracy | ±0.3 K + ±0.1% MS |
| Analogue resolution | 0.04 K |
| Response T05/T09 | <0.25 / <1 s |
| Ambient temperature | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Housing | Stainless steel |
| Wetted surface | Electropolished stainless steel |
| Application | Hygienic process |
